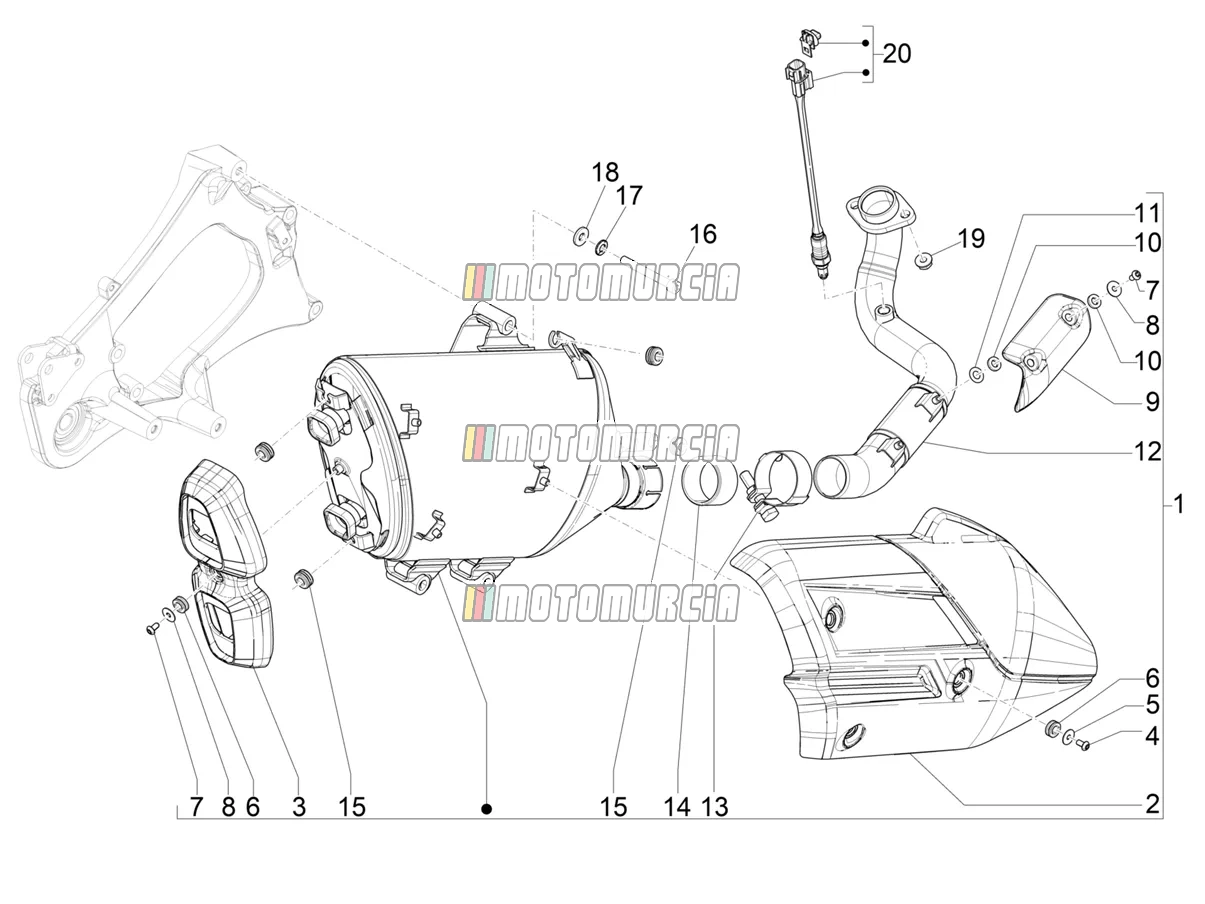

Exploded view — Silencer

‹ Back to model
Piaggio Beverly 400 ABS (USA) 2021 Piaggio Beverly 400 ABS (USA) 2021
Silencer

Products

1 Silencer complete with protection Silencer complete with protection No longer available
  • Silencer complete with protection
    No longer available
2 Protection Available 1A019880
  • Heat Shield Piaggio Group · 1A019880 Available
    € 115,89
3 Lower heat guard protection Available 1A018486
  • End Cap Piaggio Group · 1A018486 Available
    € 61,90
4 Screw Available 651014
  • Screw M5x10 Piaggio Group · 651014 · Quantity needed: 3 Available
    € 1,48
5 Washer Available 827526
  • Washer Piaggio Group · 827526 · Quantity needed: 3 Available
    € 0,99
6 Damper Available 487665
  • Rubber bellows Piaggio Group · 487665 · Quantity needed: 4 Available
    € 2,67
7 Screw Available AP8152267
  • Screw M5x12 Piaggio Group · AP8152267 · Quantity needed: 3 Available
    € 2,54
8 Washer Available 844927
  • Washer Piaggio Group · 844927 · Quantity needed: 3 Available
    € 1,45
9 Upper heat guard protection Available 1A019521
  • Heat Shield Piaggio Group · 1A019521 · Quantity needed: 3 Available
    € 29,06
10 4 - Spacer Available 876879
  • Spacer disc Piaggio Group · 876879 · Quantity needed: 4 Available
    € 12,02
11 Shim washer Available 287073
  • Shim Piaggio Group · 287073 · Quantity needed: 2 Available
    € 0,99
12 Exhaust manifold with I.P. Exhaust manifold with I.P. No longer available
  • Exhaust manifold with I.P.
    No longer available
13 Clamp Available 1A015925
  • Exhaust Bracket Piaggio Group · 1A015925 · Quantity needed: 2 Available
    € 25,12
14 Exhaust gasket Available 1A015908
15 Fairlead Available B013302
  • Rubber bellows Piaggio Group · B013302 · Quantity needed: 4 Available
    € 10,89
16 Screw Available 845590
  • Screw M8x65 Piaggio Group · 845590 · Quantity needed: 3 Available
    € 1,80
17 Washer Available 834187
18 Washer Available 848452
  • Washer Piaggio Group · 848452 · Quantity needed: 3 Available
    € 1,25
19 Nut Available 015341
  • Standard nut Piaggio Group · 015341 · Quantity needed: 2 Available
    € 2,04
20 Lambda sensor Available 1A014335
  • Lambda Sensor Piaggio Group · 1A014335 Available
    € 216,29
