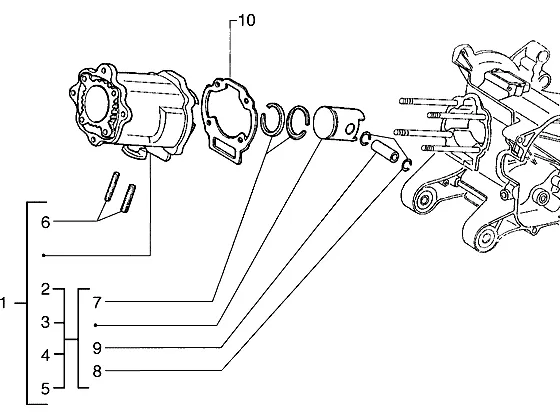

Exploded view — Cylinder-piston-wrist Pin, Assy

Products

1 Cil.pis.as. 485034 No longer available

• 485034 Cil.pis.as.
  No longer available

2 Piston 4854350001 No longer available

• 4854350001 Piston
  No longer available
• 4854350002 Piston
  No longer available
• 4854350003 Piston
  No longer available

3 Piston 484844 No longer available

• 484844 Piston
  No longer available

4 Piston 484845 No longer available

• 484845 Piston
  No longer available

5 Piston 484846 No longer available

• 484846 Piston
  No longer available

6 Stud bolt Available 4847066

•

  Stud Screw Piaggio Group · 4847066 · Quantity needed: 2 Available

  € 8,54

  Add to cart

7 Gasket Available 434635

•

  Piston Ring Ø 60,60 mm Piaggio Group · 434635 · Quantity needed: 2 Available

  € 30,93

  Add to cart

8 Snap ring 430393 No longer available

• 430393 Snap ring Quantity needed: 2
  No longer available

9 Piston pin 430557 No longer available

• 430557 Piston pin
  No longer available

10 Gasket - cylinder base 434795 No longer available

• 434795 Gasket - cylinder base
  No longer available
• 487776 Gasket - cylinder base (0,5 mm)
  No longer available
• 487777 Gasket - cylinder base (0,7 mm)
  No longer available
• 487775 Gasket - cylinder base
  No longer available
