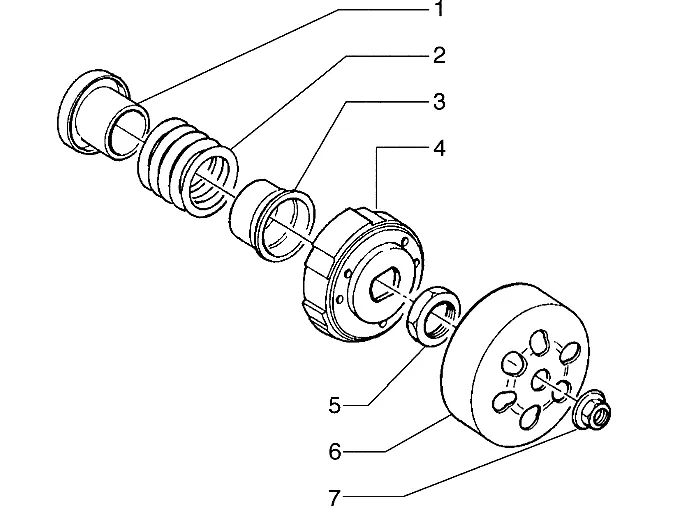

Exploded view — Driven Pulley

‹ Back to model

Piaggio Hexagon 150 1998–2005

Piaggio Hexagon 150 1998–2005

Driven Pulley

Products

1 Cup Available 4310935

Spring Mount Piaggio Group · 4310935 Available

€ 36,24

3 Clutch side cap Available 487936

Spring Mount Piaggio Group · 487936 Available

€ 9,79

4 Spring Available 478752

Converter spring Piaggio Group · 478752 Available

€ 31,56
485442 Clutch
No longer available

5 Clutch nut Available 433232

Standard nut Piaggio Group · 433232 Available

€ 14,90

6 Clutch drum Available 82502R

Clutch Case Piaggio Group · 82502R Available

€ 99,03

7 Flanged nut M12 Available B015804

Standard nut Piaggio Group · B015804 Available

€ 8,00
