Exploded view — Front Shock Absorber

‹ Back to model

Piaggio Hexagon 150 1998–2005

Piaggio Hexagon 150 1998–2005

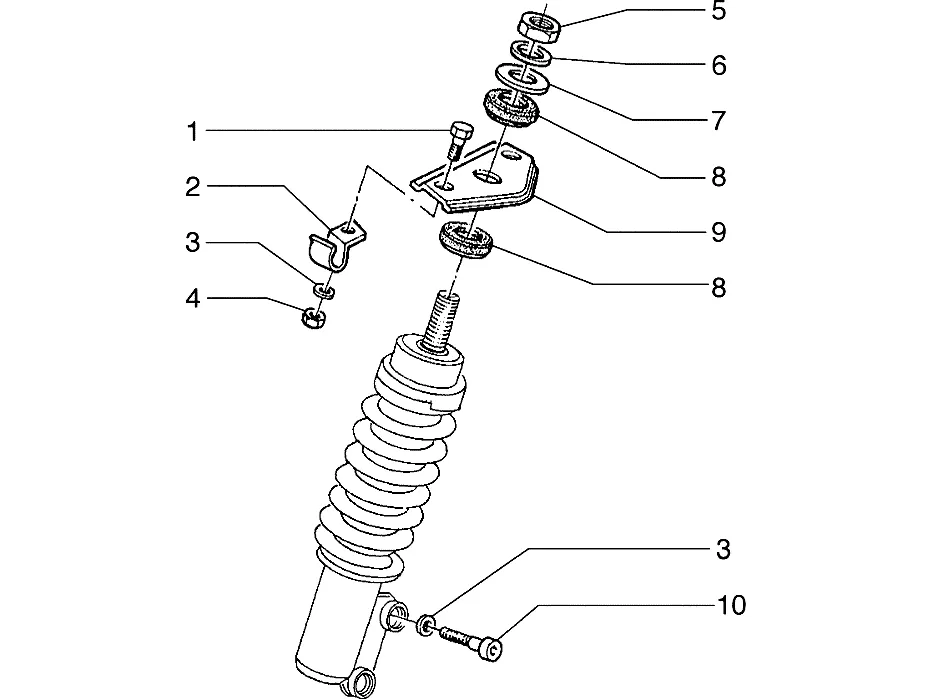

Front Shock Absorber

Products

1 Screw Available 031119

Hexagon Screw M8x22 Piaggio Group · 031119 · Quantity needed: 2 Available

€ 1,75

2 Clamp 271339 No longer available

271339 Clamp
No longer available

3 Washer (spring) Available 016408

Spring Washer 13,75x8,15x4,5 mm Piaggio Group · 016408 · Quantity needed: 4 Available

€ 1,84

4 Nut Available 020108

Standard nut Piaggio Group · 020108 · Quantity needed: 2 Available

€ 0,99

5 Nut Available 021210

Standard nut Piaggio Group · 021210 Available

€ 2,15

6 Washer Available 012535

Washer Piaggio Group · 012535 Available

€ 1,52

7 Washer Available 174088

Washer Piaggio Group · 174088 Available

€ 1,82

8 Pad Available 174874

Vibrations Damper Piaggio Group · 174874 · Quantity needed: 2 Available

€ 4,15

9 Bracket Available 273693

Bracket for shock absorber Piaggio Group · 273693 Available

€ 18,36

10 Screw Available 149104

Allen screw M8x40 Piaggio Group · 149104 · Quantity needed: 2 Available

€ 1,75
