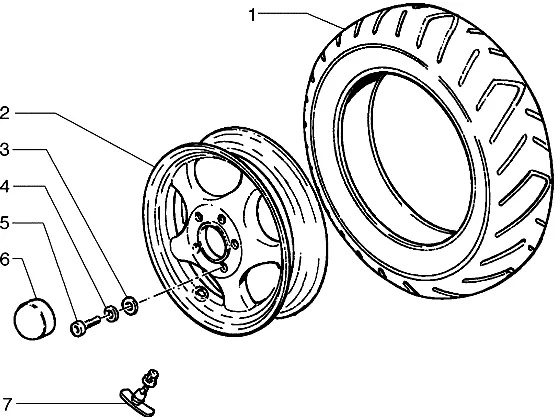

Exploded view — Front Wheel

‹ Back to model

Piaggio Hexagon 150 1998–2005

Products

1 TYRE 2710915000 No longer available

2710915000 TYRE
No longer available

2 Front wheel 269568 No longer available

269568 Front wheel
No longer available

3 Washer Available 709047

Washer Piaggio Group · 709047 · Quantity needed: 5 Available

€ 0,99

4 Washer (spring) Available 016408

Spring Washer 13,75x8,15x4,5 mm Piaggio Group · 016408 · Quantity needed: 5 Available

€ 1,84

5 Screw Available 015792

Screw M8x30 Piaggio Group · 015792 · Quantity needed: 5 Available

€ 1,48

6 Cover Available 1C000523

Covering Cap, silver Piaggio Group · 1C000523 Available

€ 10,59

7 Tubeless tyre valve Available 270991

Tyre valves Piaggio Group · 270991 Available

€ 6,80
