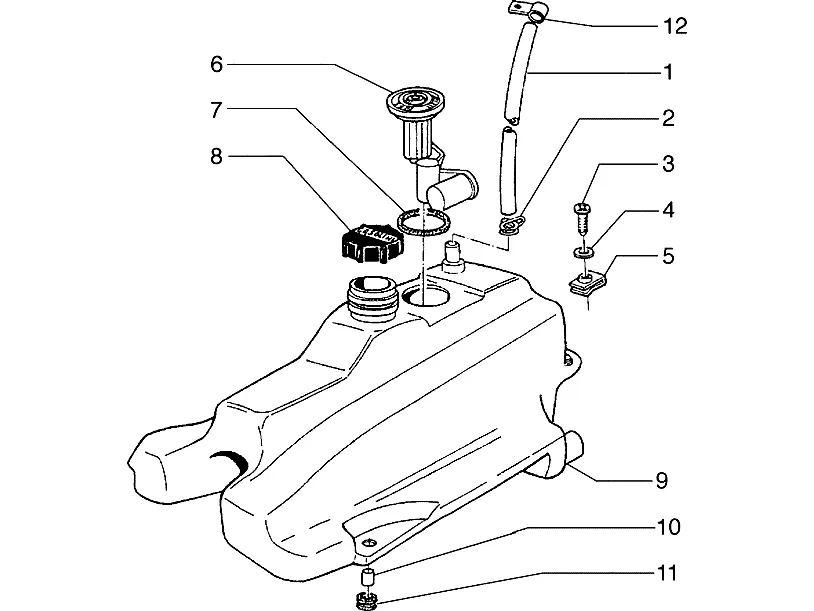

Exploded view — Fuel Tank

Products

1 Tank pipe Available CM0012096

•

  Petrol pipe Piaggio Group · CM0012096 Available

  € 21,59

  Add to cart

2 Clamp Available CM002904

•

  Clamping Spring Piaggio Group · CM002904 Available

  € 0,99

  Add to cart

3 Screw (M6x22) Available CM179302

•

  Screw M6x22 Piaggio Group · CM179302 · Quantity needed: 4 Available

  € 1,48

  Add to cart

4 Washer Available 179575

•

  Washer Piaggio Group · 179575 · Quantity needed: 4 Available

  € 1,52

  Add to cart

5 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 · Quantity needed: 4 Available

  € 2,04

  Add to cart

6 Level gauge 272327 No longer available

• 272327 Level gauge
  No longer available

7 Gasket, fuel gauge 258161 No longer available

• 258161 Gasket, fuel gauge
  No longer available

8 Plug Available 259832

•

  Tank Cap Piaggio Group · 259832 Available

  € 11,42

  Add to cart

9 Tank 298500 No longer available

• 298500 Tank
  No longer available
• 298344 Tank
  No longer available

10 Spacer Available 257302

•

  Spacer Piaggio Group · 257302 · Quantity needed: 4 Available

  € 0,99

  Add to cart

11 Damper Available 257301

•

  Buffer Piaggio Group · 257301 · Quantity needed: 4 Available

  € 2,48

  Add to cart

12 Clamp Available 229343

•

  Clamp Piaggio Group · 229343 Available

  € 5,25

  Add to cart
