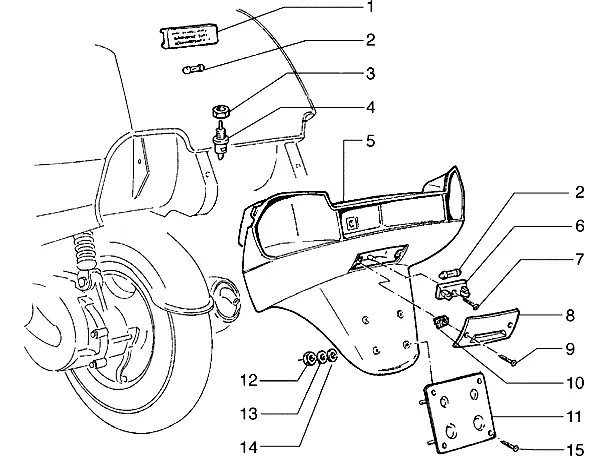

Exploded view — Licence Plate Holder And Case Compartment Lamp

Products

1 Ceiling bowl Available 293154

•

  Lamp Piaggio Group · 293154 Available

  € 15,63

  Add to cart

2 Bulb (12V 5W) Available 071633

•

  Bulbs Festoon, 12 V, 5 W Piaggio Group · 071633 · Quantity needed: 2 Available

  € 8,81

  Add to cart

3 Nut Available 196750

•

  Standard nut Piaggio Group · 196750 Available

  € 2,70

  Add to cart

4 Brake light switch Available B023289

•

  Stop light switch Piaggio Group · B023289 Available

  € 21,18

  Add to cart

5 Maintenance 270153000A No longer available

• 270153000A Maintenance
  No longer available

6 Bracket 290802 No longer available

• 290802 Bracket
  No longer available

7 Screw 015846 No longer available

• 015846 Screw
  No longer available

8 Covers 270154 No longer available

• 270154 Covers
  No longer available

9 Screw Available 015911

•

  Sheet Metal Screw 4,2x16 mm Piaggio Group · 015911 · Quantity needed: 2 Available

  € 1,44

  Add to cart

10 Clip nuts Available CM017410

•

  Sheet nut Piaggio Group · CM017410 · Quantity needed: 2 Available

  € 0,99

  Add to cart

11 License plate holder 253976 No longer available

• 253976 License plate holder
  No longer available
•

  License Plate Holder Piaggio Group · 2539795 Backorder

  € 39,01

  Add to cart

12 Nut M4 Available 020104

•

  Standard nut Piaggio Group · 020104 · Quantity needed: 4 Available

  € 0,99

  Add to cart

13 Washer (spring) Available 016404

•

  Washer 4,2x7,6x0,9 mm Piaggio Group · 016404 · Quantity needed: 4 Available

  € 0,99

  Add to cart

14 Washer Available 013963

•

  Washer Piaggio Group · 013963 · Quantity needed: 4 Available

  € 0,99

  Add to cart

15 Screw Available 015996

•

  Screw M4x12 Piaggio Group · 015996 · Quantity needed: 2 Available

  € 0,99

  Add to cart
