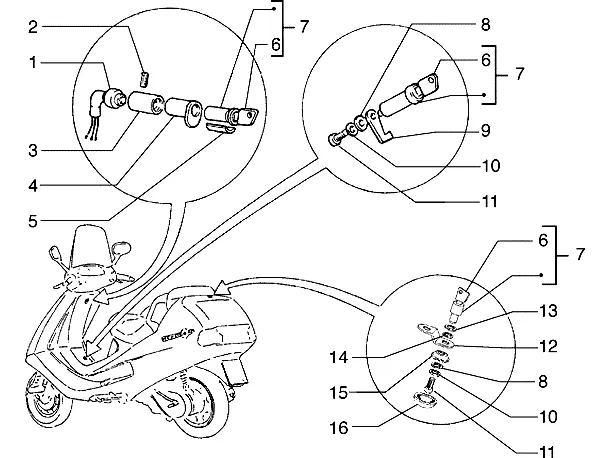

Exploded view — Locks

Products

1 Switch 292234 No longer available

• 292234 Switch
  No longer available
• 293252 Switch
  No longer available
• 292325 Switch
  No longer available

2 Screw Available 018515

•

  Grub Screw Piaggio Group · 018515 Available

  € 0,99

  Add to cart

3 Block Available 178562

•

  Lock Bolt Piaggio Group · 178562 Available

  € 8,80

  Add to cart

4 Lock body Available 2977775

•

  Lock Housing Piaggio Group · 2977775 Available

  € 17,76

  Add to cart

5 Plate Available 178559

•

  Shims Piaggio Group · 178559 Available

  € 0,99

  Add to cart

6 Key blank 296854 No longer available

• 296854 Key blank Quantity needed: 3
  No longer available

7 Lock,assy 296881 No longer available

• 296881 Lock,assy Quantity needed: 3
  No longer available

8 Washer Available 013963

•

  Washer Piaggio Group · 013963 · Quantity needed: 2 Available

  € 0,99

  Add to cart

9 Latch 270142 No longer available

• 270142 Latch
  No longer available

10 Washer (spring) Available 016404

•

  Washer 4,2x7,6x0,9 mm Piaggio Group · 016404 · Quantity needed: 2 Available

  € 0,99

  Add to cart

11 Screw Available 015996

•

  Screw M4x12 Piaggio Group · 015996 · Quantity needed: 2 Available

  € 0,99

  Add to cart

12 Latch Available 270151

•

  Hooks Piaggio Group · 270151 Available

  € 11,04

  Add to cart

13 Washer 297500 No longer available

• 297500 Washer
  No longer available

14 Washer 102943 No longer available

• 102943 Washer
  No longer available

15 Cup Available 297597

•

  Washer Piaggio Group · 297597 Available

  € 2,06

  Add to cart

16 Hook Available 297596

•

  Lid Piaggio Group · 297596 Available

  € 2,77

  Add to cart
