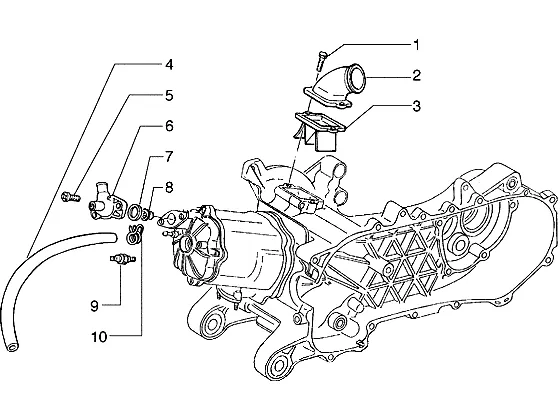

Exploded view — Null

‹ Back to model

Piaggio Hexagon 150 1998–2005

Piaggio Hexagon 150 1998–2005

Null

Products

1 Screw Available B016774

Hexagon Screw M6x25 Piaggio Group · B016774 · Quantity needed: 2 Available

€ 1,48

2 Intake Manifold Available 430206

Intake manifold Piaggio Group · 430206 Available

€ 14,74

3 Reeds bracket 435866 No longer available

435866 Reeds bracket
No longer available

4 Water hose Available 434381

Hose Piaggio Group · 434381 Available

€ 10,45

5 Screw 008374 No longer available

008374 Screw Quantity needed: 2
No longer available

6 Joint 435063 No longer available

435063 Joint
No longer available

7 O-Ring Available 289514

O-Ring Piaggio Group · 289514 Available

€ 0,99

8 Thermostat Backorder 483395

Thermostat Piaggio Group · 483395 Backorder

€ 50,92

9 Water temperature switch Available 82622R

Water temperature probe Piaggio Group · 82622R Available

€ 28,14

10 Clamp Available 104296

Clamp Piaggio Group · 104296 Available

€ 2,26
