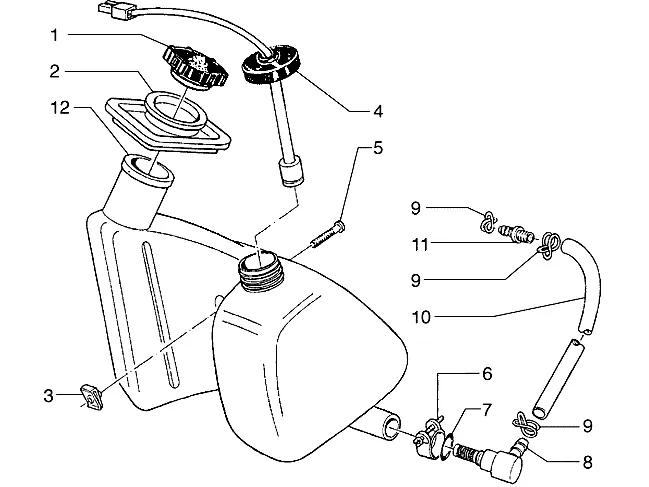

Exploded view — Oil Tank

‹ Back to model

Piaggio Hexagon 150 1998–2005

Piaggio Hexagon 150 1998–2005

Oil Tank

Products

1 Cap oil filler Available 259829

Tank Cap Piaggio Group · 259829 Available

€ 6,20

2 Float chamber 270199 No longer available

270199 Float chamber
No longer available

3 Clip nuts (M6) Available 254485

Sheet nut Piaggio Group · 254485 Available

€ 2,04

4 Fuel level gauge 292596 No longer available

292596 Fuel level gauge
No longer available

5 Screw Available 259348

Oval Head Screw Piaggio Group · 259348 Available

€ 1,08

6 Clamp Available 879888

Clamp Piaggio Group · 879888 Available

€ 8,91

7 O-Ring Available 196868

Gasket Piaggio Group · 196868 Available

€ 3,36

8 Joint 296577 No longer available

296577 Joint
No longer available

9 Clamp Available CM002907

Hose Clamp Piaggio Group · CM002907 · Quantity needed: 3 Available

€ 1,48

10 Mixture tube 573320 No longer available

573320 Mixture tube
No longer available

11 Joint 296575 No longer available

296575 Joint
No longer available

12 Tank 270084 No longer available

270084 Tank
No longer available
