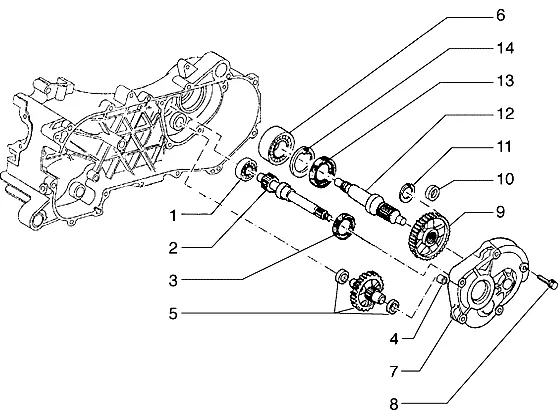

Exploded view — Rear Wheel Shaft

Products

1 Bearing 431256 No longer available

• 431256 Bearing
  No longer available

2 Pulley shaft 4347936 No longer available

• 4347936 Pulley shaft
  No longer available

3 Oil seal Available 430391

•

  Crankshaft seal 47x22x7 mm Piaggio Group · 430391 Available

  € 21,16

  Add to cart

4 Seeger 431357 No longer available

• 431357 Seeger
  No longer available

5 Shaft pin 4856465 No longer available

• 4856465 Shaft pin
  No longer available

6 Bearing Available 434735

•

  Wheel bearing 6204 2RSH, 20x47x14 mm Piaggio Group · 434735 Available

  € 18,77

  Add to cart

7 Cover 4314595 No longer available

• 4314595 Cover
  No longer available

8 5 - Screw (M6x50) Available B016775

•

  Flanged Screw M6x50 Piaggio Group · B016775 Available

  € 1,48

  Add to cart

9 Gear 431223 No longer available

• 431223 Gear
  No longer available

10 Spacer 433427 No longer available

• 433427 Spacer
  No longer available

11 Ring 006419 No longer available

• 006419 Ring
  No longer available

12 Wheel axle 4781565 No longer available

• 4781565 Wheel axle
  No longer available

13 Gasket ring Available 478498

•

  Shaft Seal Piaggio Group · 478498 Available

  € 6,98

  Add to cart

14 Seeger Available 006647

•

  Circlip Ø 47,00 mm Piaggio Group · 006647 Available

  € 1,29

  Add to cart

16 Needle bearing Available 430228

•

  Roller bearing HK 15/16, 15x21x16 mm Piaggio Group · 430228 · Quantity needed: 2 Available

  € 5,98

  Add to cart

17 Bearing Available 82545R

•

  Radial bearing BB1-0683, 17x47x14 mm Piaggio Group · 82545R Available

  € 24,85

  Add to cart
