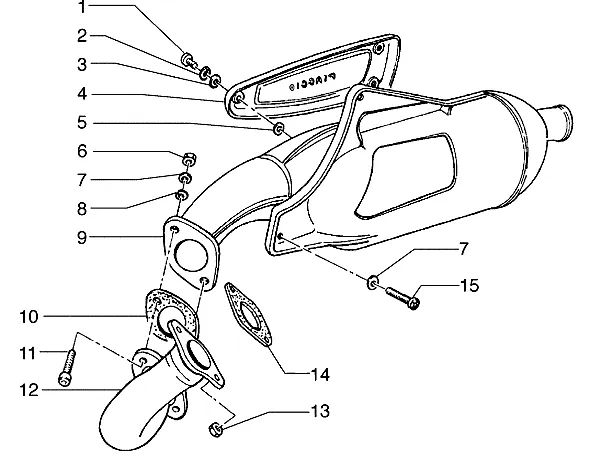

Exploded view — Silencer

Products

1 Screw Available 433800

•

  Screw M5x10 Piaggio Group · 433800 · Quantity needed: 3 Available

  € 0,99

  Add to cart

2 Washer (spring) Available 016405

•

  Spring Washer Piaggio Group · 016405 · Quantity needed: 3 Available

  € 1,84

  Add to cart

3 Washer Available 003055

•

  Washer 5,4x10x0,8 mm Piaggio Group · 003055 · Quantity needed: 3 Available

  € 1,88

  Add to cart

4 Guard 434064 No longer available

• 434064 Guard
  No longer available
• 436598 Guard
  No longer available

5 Washer 433490 No longer available

• 433490 Washer Quantity needed: 3
  No longer available

6 Nut Available 001564

•

  Standard nut Piaggio Group · 001564 · Quantity needed: 2 Available

  € 1,25

  Add to cart

7 Washer (spring) Available 016408

•

  Spring Washer 13,75x8,15x4,5 mm Piaggio Group · 016408 · Quantity needed: 3 Available

  € 1,84

  Add to cart

8 Washer Available 016604

•

  Washer Piaggio Group · 016604 · Quantity needed: 2 Available

  € 1,25

  Add to cart

9 Exhaust 433524 No longer available

• 433524 Exhaust
  No longer available
• 434576 Exhaust
  No longer available

10 Exhaust gasket 432127 No longer available

• 432127 Exhaust gasket
  No longer available

11 Screw Available 015792

•

  Screw M8x30 Piaggio Group · 015792 · Quantity needed: 2 Available

  € 1,48

  Add to cart

12 Exhaust pipe 432120 No longer available

• 432120 Exhaust pipe
  No longer available

13 Nut Available 015341

•

  Standard nut Piaggio Group · 015341 · Quantity needed: 2 Available

  € 2,04

  Add to cart

14 Exhaust gasket 431600 No longer available

• 431600 Exhaust gasket
  No longer available

15 Screw Available 844483

•

  Screw M8x50 Piaggio Group · 844483 · Quantity needed: 2 Available

  € 0,99

  Add to cart
