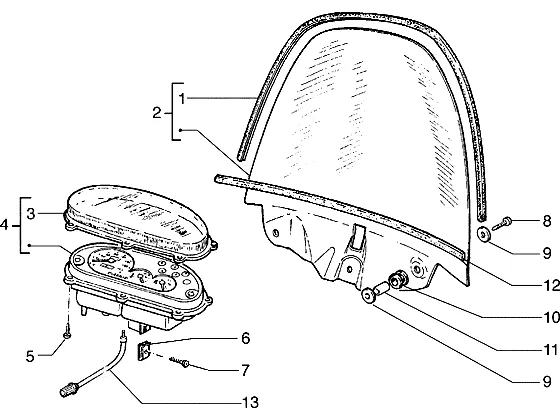

Exploded view — Speedometer (kms)-windshield

‹ Back to model

Piaggio Hexagon 150 1998–2005

Products

1 Gasket 273611 No longer available

273611 Gasket
No longer available

2 Windshield 273613 No longer available

273613 Windshield
No longer available

3 Speed. kms. cover 498453 No longer available

498453 Speed. kms. cover
No longer available

4 Dashboard 292169 No longer available

292169 Dashboard
No longer available
293463 Dashboard
No longer available
271465 Dashboard
No longer available

5 Screw Available 258146

Thread Screw Piaggio Group · 258146 Available

€ 0,99

6 Clip nuts Available CM017410

Sheet nut Piaggio Group · CM017410 Available

€ 0,99

7 Screw Available 259349

Screw 4,2x13 mm Piaggio Group · 259349 Available

€ 0,99

8 Screw (M6x22) Available CM179302

Screw M6x22 Piaggio Group · CM179302 Available

€ 1,48

9 Washer Available 270216

Washer Piaggio Group · 270216 · Quantity needed: 2 Available

€ 0,99

10 Gasket Available 566752

Gasket Piaggio Group · 566752 Available

€ 3,15

11 Spacer Available 270215

Spacer disc Piaggio Group · 270215 Available

€ 1,72

12 Gasket 270217 No longer available

270217 Gasket
No longer available

13 Reset cable 498834 No longer available

498834 Reset cable
No longer available
