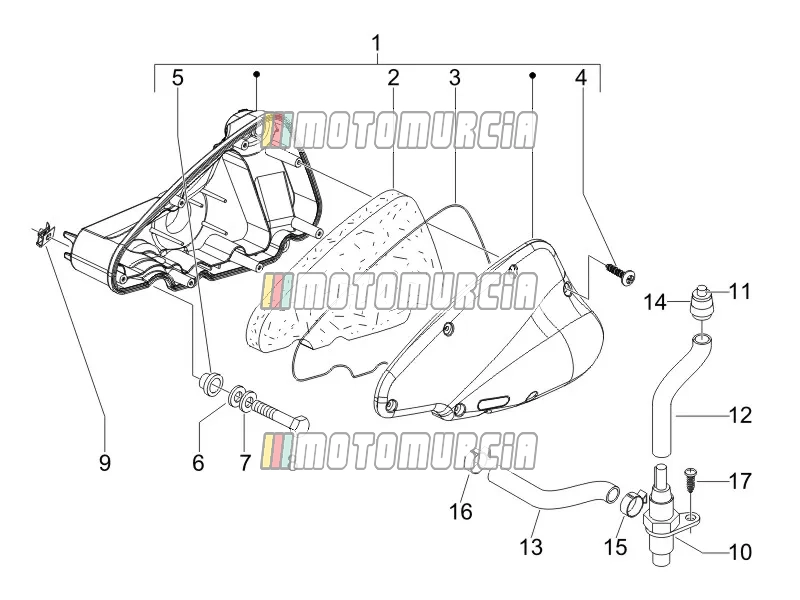

Exploded view — Air Filter

Products

1 Air filter box B017388 No longer available

• B017388 Air filter box
  No longer available

2 Air filter Available 8755250P

•

  Air Filter Insert Premium Piaggio Group · 8755250P Available

  € 10,13

  Add to cart

3 Seal air filter box Backorder 487286

•

  Gasket Piaggio Group · 487286 Backorder

  € 10,08

  Add to cart

4 Screw Available 258146

•

  Thread Screw Piaggio Group · 258146 · Quantity needed: 7 Available

  € 0,99

  Add to cart

5 Spacer Available 830056

•

  Sleeve Piaggio Group · 830056 · Quantity needed: 4 Available

  € 1,48

  Add to cart

6 Washer Available 003056

•

  Washer 6,4x12x1 mm Piaggio Group · 003056 · Quantity needed: 2 Available

  € 1,84

  Add to cart

7 Washer Available 012533

•

  Washer 6,6x11 mm Piaggio Group · 012533 · Quantity needed: 2 Available

  € 1,45

  Add to cart

8 Screw Available 018640

•

  Screw M6x50 Piaggio Group · 018640 · Quantity needed: 2 Available

  € 0,99

  Add to cart

9 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available

  € 2,04

  Add to cart

10 Solenoid valve Backorder 848962

•

  Solenoid Valve Piaggio Group · 848962 Backorder

  € 154,87

  Add to cart

11 Air filter Available 871825

•

  Air Filter complete Piaggio Group · 871825 Available

  € 18,84

  Add to cart

12 Intake Manifold Backorder 871741

•

  Hose Piaggio Group · 871741 Backorder

  € 10,87

  Add to cart

13 Air hose Backorder 871740

•

  Hose Piaggio Group · 871740 Backorder

  € 36,63

  Add to cart

14 Flexible support Available 272842

•

  Bracket elastic Piaggio Group · 272842 Available

  € 4,51

  Add to cart

15 Clamp Available CM001913

•

  Hose Clamp Piaggio Group · CM001913 Available

  € 1,88

  Add to cart

16 Clamp Available CM001901

•

  Clamp Piaggio Group · CM001901 Available

  € 2,04

  Add to cart

17 Screw Available 270793

•

  Screw 3,8x16 mm Piaggio Group · 270793 Available

  € 0,99

  Add to cart
