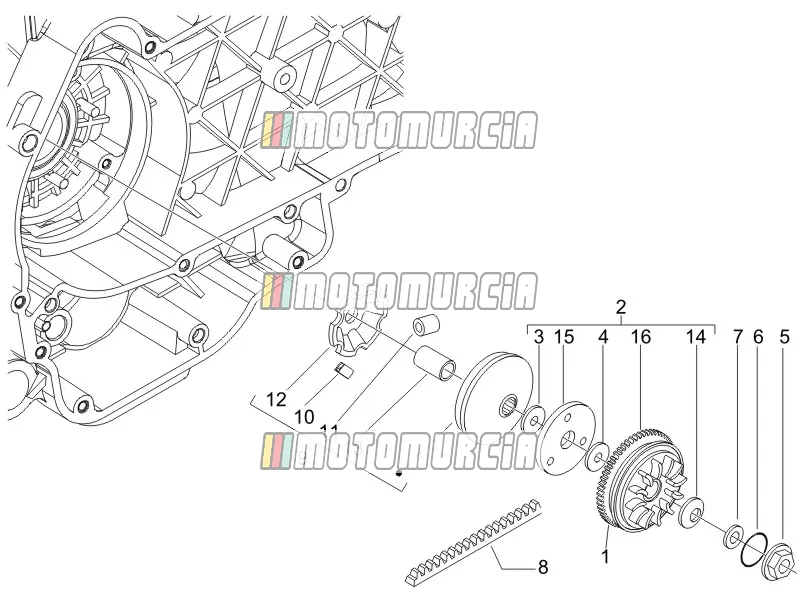

Exploded view — Driving Pulley

Products

1 V-Belt Pulley Available 834774

•

  Pulley halves Piaggio Group · 834774 Available

  € 45,85

  Add to cart

2 Torque limiter 840815 No longer available

• 840815 Torque limiter
  No longer available

3 Washer 487626 No longer available

• 487626 Washer
  No longer available

4 Washer 487627 No longer available

• 487627 Washer
  No longer available

5 Flanged nut M12 Available B015804

•

  Standard nut Piaggio Group · B015804 Available

  € 8,00

  Add to cart

6 O-Ring Available 832508

•

  Oil seal Piaggio Group · 832508 Available

  € 2,23

  Add to cart

7 Washer Available 434885

•

  Shim Piaggio Group · 434885 Available

  € 2,35

  Add to cart

8 V-Belt Available 840908

•

  V-Belt Piaggio Group · 840908 Available

  € 128,34

  Add to cart

9 Variator Available CM144404

•

  Pulley halves Piaggio Group · CM144404 Available

  € 110,11

  Add to cart

10 Variator slider Available 4348555

•

  Slide Piaggio Group · 4348555 · Quantity needed: 3 Available

  € 2,52

  Add to cart

11 Roller weights (10,7 g) Available 4857135

•

  Variator weights 21x17 mm, 10,7 g, Content: 6 Stk Piaggio Group · 4857135 · Quantity needed: 6 Available

  € 18,86

  Add to cart

12 Roller contrast Available 842204

•

  Calotte Piaggio Group · 842204 Available

  € 15,22

  Add to cart

13 Spacer Available 483889

•

  Converter Hub Piaggio Group · 483889 Available

  € 39,86

  Add to cart

14 BELLEVILLE WASHER 828035 No longer available

• 828035 BELLEVILLE WASHER Quantity needed: 5
  No longer available

15 PROTECTION SHEET STEEL 828211 No longer available

• 828211 PROTECTION SHEET STEEL
  No longer available

16 RING 487628 No longer available

• 487628 RING
  No longer available
