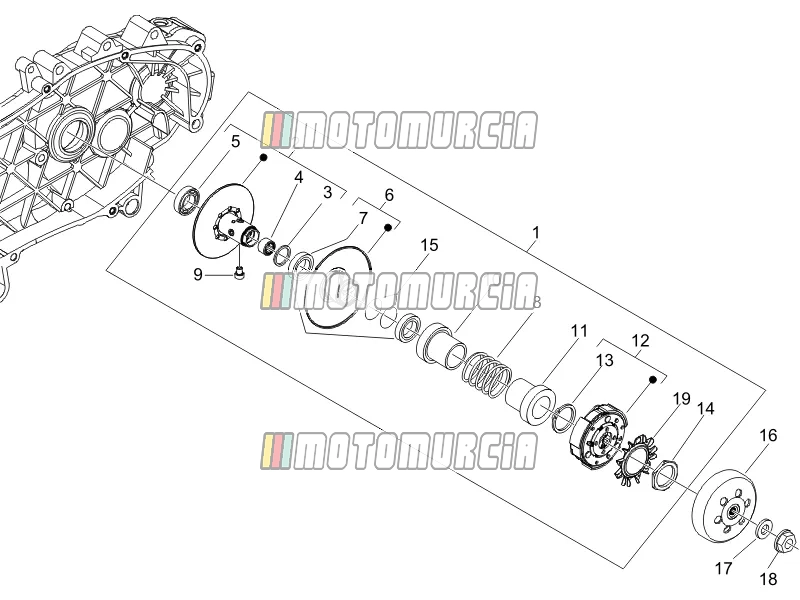

Exploded view — Driven Pulley

‹ Back to model
Piaggio Liberty 200 2006 Piaggio Liberty 200 2006
Driven Pulley

Products

1 Pulley CM162404 No longer available
  • CM162404 Pulley
    No longer available
2 Fixed driven half pulley Available 830580
  • Pulley halves Piaggio Group · 830580 Available
    € 106,17
3 Gasket ring Available 483226
  • Snap-in Ring Piaggio Group · 483226 Available
    € 2,18
4 Needle bearing Available 82518R
5 Bearing Available 82753R
6 Adjustable pulley, half 827499 No longer available
  • 827499 Adjustable pulley, half
    No longer available
7 Oil seal Available 431089
  • Oil seal Piaggio Group · 431089 · Quantity needed: 2 Available
    € 9,66
8 Spring Available 872877
9 Guide pin L=12,5 Available 828717
  • Pin length: 13mm Piaggio Group · 828717 · Quantity needed: 4 Available
    € 2,09
10 Cup Available 4310935
  • Spring Mount Piaggio Group · 4310935 Available
    € 36,24
11 Clutch side cap Available 487936
  • Spring Mount Piaggio Group · 487936 Available
    € 9,79
12 Clutch Available CM1612035
  • Clutch Shoes Piaggio Group · CM1612035 Available
    € 111,32
13 Seeger Available 006410
  • Circlip Piaggio Group · 006410 · Quantity needed: 3 Available
    € 4,30
14 Clutch nut Available 433232
  • Standard nut Piaggio Group · 433232 Available
    € 14,90
15 O-Ring Available 430585
  • Oil seal Piaggio Group · 430585 · Quantity needed: 2 Available
    € 1,32
16 Clutch bell Available 8440494
  • Clutch Case Piaggio Group · 8440494 Available
    € 79,10
17 Washer (22x12,1x19) Available 274246
18 Nut Available 486324
19 Fan Available 482305
