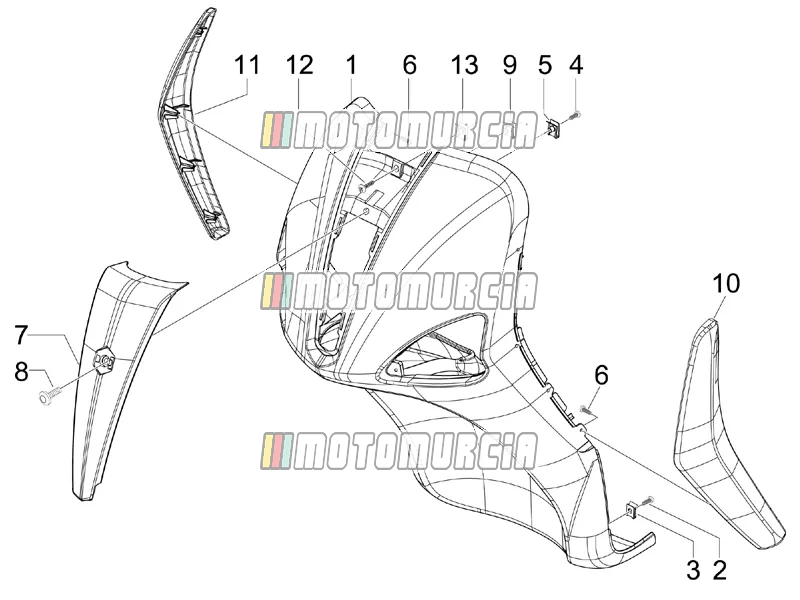

Exploded view — Front Shield

Products

1 SHIELD 67287200M4 No longer available

• 67287200M4 SHIELD
  No longer available
• 67287200EU Front fairing
  No longer available
•

  Front Shield, primed Piaggio Group · 672872 Available

  € 350,84

  Add to cart
• 62265800XN2 SHIELD
  No longer available
•

  Front Shield, blue, Suffix: AL_blue andromeda 230/A Piaggio Group · 67287200AL Available

  € 392,10

  Add to cart
• 67287200F2 Front fairing
  No longer available
• 67287200ND Front fairing
  No longer available
•

  Front Shield, blue, Suffix: DE_blue midnight 222/A Piaggio Group · 67287200DE Available

  € 286,78

  Add to cart

4 Screw (4,2x19) Available 258249

•

  Sheet Metal Screw Piaggio Group · 258249 · Quantity needed: 4 Available

  € 0,99

  Add to cart

5 Clip nuts Available CM017410

•

  Sheet nut Piaggio Group · CM017410 · Quantity needed: 4 Available

  € 0,99

  Add to cart

6 Screw Available 297498

•

  Sheet Metal Screw Piaggio Group · 297498 · Quantity needed: 8 Available

  € 0,99

  Add to cart

7 Cover 67466800F2 No longer available

• 67466800F2 Cover
  No longer available
• 62119800M4 HORN COVER PAINTED
  No longer available
• 62119800XN2 HORN COVER LIBERTY -PAINTED-
  No longer available
• 62119800AL HORN COVER PAINTED
  No longer available
• 62119800EU HORN COVER PAINTED
  No longer available
•

  Cascade, black, Suffix: ND_black graphite 79/A Piaggio Group · 67466800ND Available

  € 90,65

  Add to cart
• 674668 Front booby hatch
  No longer available
• 67466800DE Plastic Steering Cover
  No longer available

8 Screw (M6x16) Available 575249

•

  Screw M6 Piaggio Group · 575249 Available

  € 0,99

  Add to cart

9 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 Available

  € 2,04

  Add to cart

10 Deflector l.h. Available CM0200010043

•

  Cover, left Piaggio Group · CM0200010043 Available

  € 23,67

  Add to cart

11 Deflector r.h. Available CM0200020043

•

  Cover, right Piaggio Group · CM0200020043 Available

  € 23,67

  Add to cart
