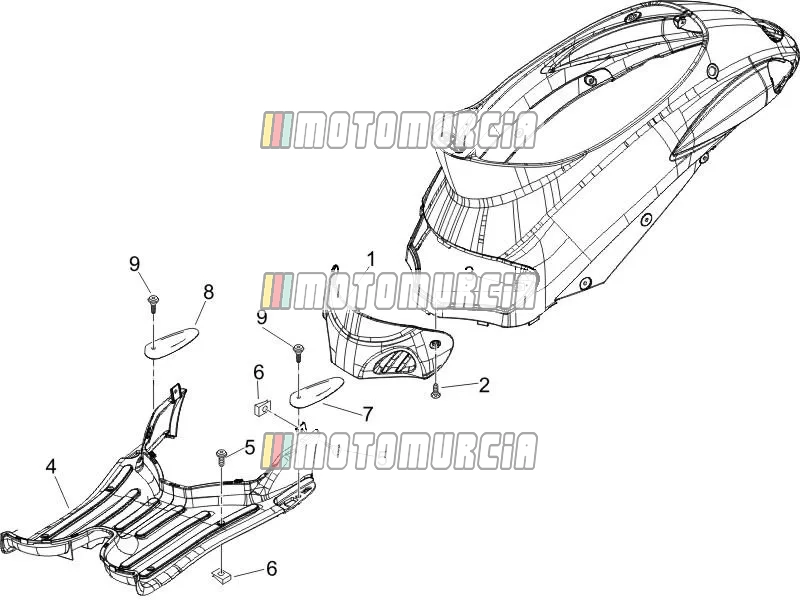

Exploded view — Central Cover - Footrests

Products

1 Spark plug access lid Available 621195

•

  Inspection Cover, primed Piaggio Group · 621195 Available

  € 92,76

  Add to cart
•

  Inspection Cover, white, Suffix: BR_white montebianco / innocenza /544 Piaggio Group · 62119500BR Available

  € 134,18

  Add to cart
• 62119500GC Spark plug access lid
  No longer available
•

  Inspection Cover, yellow, Suffix: GC_yellow 903/A Piaggio Group · 67504500GC Backorder

  € 288,88

  Add to cart

2 Screw Available 259349

•

  Screw 4,2x13 mm Piaggio Group · 259349 · Quantity needed: 2 Available

  € 0,99

  Add to cart

3 Clip nuts Available CM017410

•

  Sheet nut Piaggio Group · CM017410 · Quantity needed: 2 Available

  € 0,99

  Add to cart

4 Footrest Backorder 673795000C

•

  Footwell Cover Piaggio Group · 673795000C Backorder

  € 86,45

  Add to cart

5 Screw (M6x22) Available CM179302

•

  Screw M6x22 Piaggio Group · CM179302 · Quantity needed: 4 Available

  € 1,48

  Add to cart

6 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 · Quantity needed: 4 Available

  € 2,04

  Add to cart

7 Footrest left rear cover Backorder 464646000C

•

  Lid, left Piaggio Group · 464646000C Backorder

  € 12,95

  Add to cart

8 Footrest right rear cover 464647000C No longer available

• 464647000C Footrest right rear cover
  No longer available

9 Screw Available 259577

•

  Screw Piaggio Group · 259577 · Quantity needed: 2 Available

  € 1,26

  Add to cart
