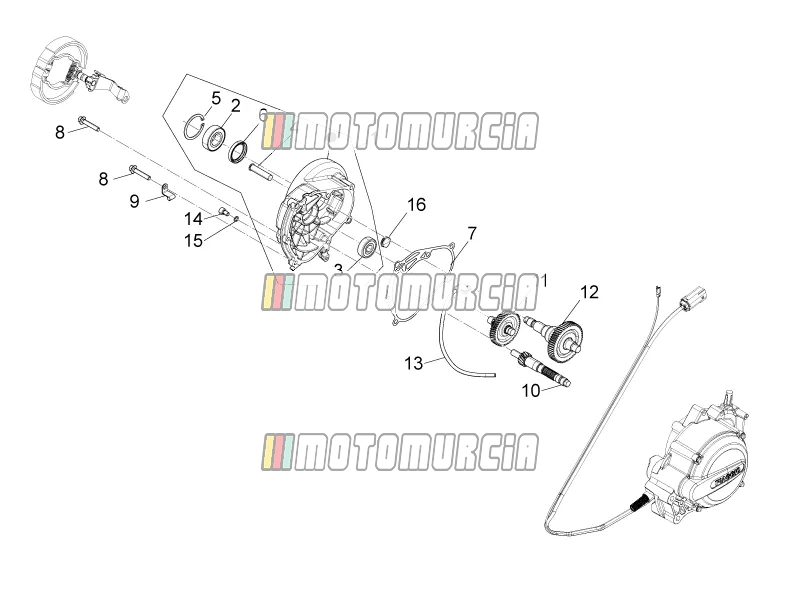

Exploded view — Reduction Unit

Products

1 Complete reducer cover Available B0143425

•

  Gear Box Cover Piaggio Group · B0143425 Available

  € 193,42

  Add to cart

2 Wheel bearing Available 4789845

•

  Radial bearing 25x52x15 mm Piaggio Group · 4789845 Available

  € 28,86

  Add to cart

3 Radial bearing 15x42x13 Available B014367

•

  Radial bearing 15x42x13 mm Piaggio Group · B014367 Available

  € 12,75

  Add to cart

4 Shoe fulcrum pin Available 272921

•

  Pin Piaggio Group · 272921 Available

  € 15,02

  Add to cart

5 10 - Seeger Available 006652

•

  Circlip Piaggio Group · 006652 Available

  € 1,80

  Add to cart

6 Oil seal Available 82899R

•

  Shaft Seal Piaggio Group · 82899R Available

  € 15,28

  Add to cart

7 Reduction unit cover gasket Available 847930

•

  Cover Gasket Piaggio Group · 847930 Available

  € 11,54

  Add to cart

8 5 - Screw Available B016805

•

  Flanged Screw M8x45 Piaggio Group · B016805 · Quantity needed: 7 Available

  € 1,48

  Add to cart

9 Hose clamp Available 487948

•

  Clamp Piaggio Group · 487948 Available

  € 1,48

  Add to cart

10 Electric crankshaft B014338 No longer available

• B014338 Electric crankshaft
  No longer available
•

  Crankshaft Piaggio Group · B0176315 Backorder

  € 101,83

  Add to cart

11 Transmission shaft B014339 No longer available

• B014339 Transmission shaft
  No longer available
• B0143395 Transmission shaft
  No longer available

12 Wheel axle Z=56 Backorder B0143415

•

  Wheel Axle Number of Teeth: 56 Piaggio Group · B0143415 Backorder

  € 230,43

  Add to cart

13 Reducer breather pipe Available CM162202

•

  Breather Pipe Piaggio Group · CM162202 Available

  € 21,97

  Add to cart

14 Screw Available 269755

•

  Screw M8x12 Piaggio Group · 269755 Available

  € 1,59

  Add to cart

15 Washer Available 485703

•

  Washer 8,2x12x1 mm Piaggio Group · 485703 Available

  € 1,25

  Add to cart

16 Cover Available 487115

•

  Lid Piaggio Group · 487115 Available

  € 1,69

  Add to cart
