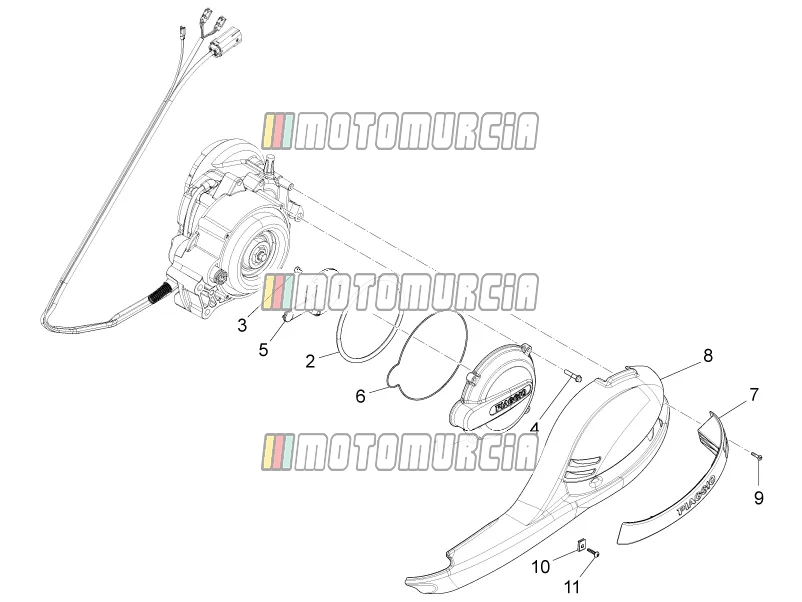

Exploded view — Crankcase Cover - Crankcase Cooling

Products

1 Transmission cover Backorder 875969

•

  Lid Piaggio Group · 875969 Backorder

  € 49,60

  Add to cart

2 O-Ring seal ring Available 848983

•

  Oil seal Piaggio Group · 848983 Available

  € 14,82

  Add to cart

3 Screw Available 430264

•

  Oval Head Screw M5x10 Piaggio Group · 430264 · Quantity needed: 3 Available

  € 0,99

  Add to cart

4 Screw Available B016792

•

  Flanged Screw M6x30 Piaggio Group · B016792 · Quantity needed: 4 Available

  € 1,48

  Add to cart

5 Complete fixed engine speed sensor Backorder 875440

•

  RPM sensor Piaggio Group · 875440 Backorder

  € 226,84

  Add to cart

6 O-Ring shaped ring Backorder 848984

•

  Oil seal Piaggio Group · 848984 Backorder

  € 16,49

  Add to cart

7 Insert Backorder 667668000C

•

  Cover Piaggio Group · 667668000C Backorder

  € 22,41

  Add to cart

8 Case cover Backorder 667382000C

•

  Cover Piaggio Group · 667382000C Backorder

  € 67,54

  Add to cart

9 Screw Available 880285

•

  Torx screw Piaggio Group · 880285 · Quantity needed: 3 Available

  € 1,45

  Add to cart

10 Screw Available 267115

•

  Sheet Metal Screw M4x16 Piaggio Group · 267115 Available

  € 0,99

  Add to cart

11 Clip nuts Available 248419

•

  Sheet nut M5 Piaggio Group · 248419 Available

  € 2,35

  Add to cart
