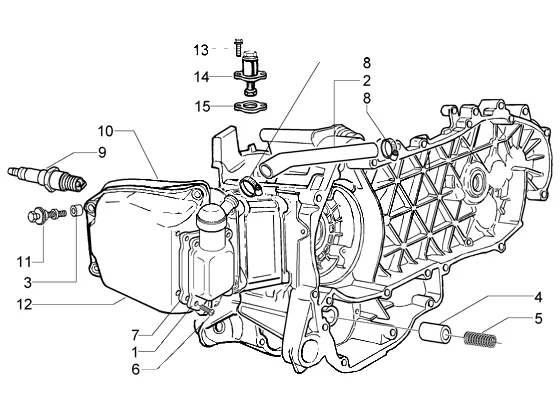

Exploded view — By-pass Valve-chain Tightener-oil Drain Valve

Products

1 Oil breather valve Available 1A010691R

•

  Oil bleed valve Piaggio Group · 1A010691R Available

  € 21,61

  Add to cart

2 Engine oil breather pipe Available 844094

•

  Breather Pipe Piaggio Group · 844094 Available

  € 17,17

  Add to cart

3 Damper drift Available 830249

•

  Washer Piaggio Group · 830249 · Quantity needed: 5 Available

  € 1,32

  Add to cart

4 Oil pressure valve Available 829661

•

  Oil pressure Valve Piaggio Group · 829661 Available

  € 12,62

  Add to cart

5 Spring Available 485655

•

  Spring Piaggio Group · 485655 Available

  € 1,65

  Add to cart

6 Screw Available 877136

•

  Screw M5x20 Piaggio Group · 877136 · Quantity needed: 4 Available

  € 0,99

  Add to cart

7 Gasket - breather valve Available 1A003985

•

  Gasket Piaggio Group · 1A003985 Available

  € 5,72

  Add to cart

8 Clamp Available CM001904

•

  Clamp Piaggio Group · CM001904 · Quantity needed: 2 Available

  € 1,72

  Add to cart

9 Spark plug (NGK) Available 638853

•

  Spark Plugs CR8EB Piaggio Group · 638853 Available

  € 18,03

  Add to cart

10 Gasket - head cover Available 829536

•

  Cylinder Head Gasket Piaggio Group · 829536 Available

  € 14,97

  Add to cart

11 Bolt, valve head cover Available 872635

•

  Screw Piaggio Group · 872635 · Quantity needed: 5 Available

  € 2,35

  Add to cart

12 Head cover Available 829534

•

  Valve Cover Piaggio Group · 829534 Available

  € 98,84

  Add to cart

13 Screw Available B016777

•

  Flanged Screw M6x16 Piaggio Group · B016777 · Quantity needed: 2 Available

  € 1,48

  Add to cart

14 Chain tensioner Available 1A019253

•

  Chain Adjuster Piaggio Group · 1A019253 Available

  € 36,18

  Add to cart

15 Gasket - chain tensioner Available 847928

•

  Gasket Piaggio Group · 847928 Available

  € 4,21

  Add to cart
