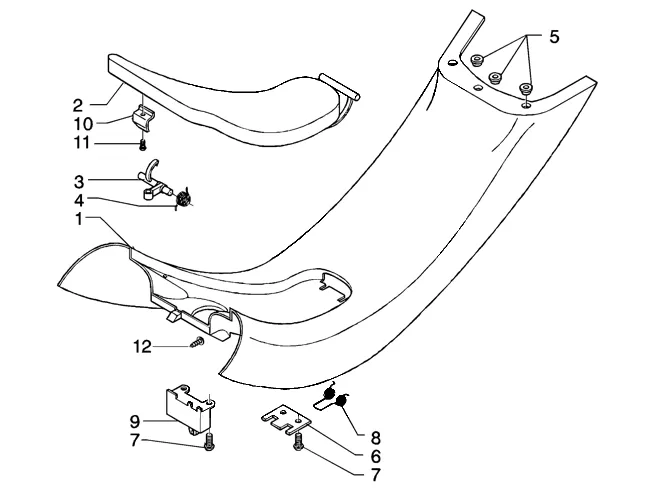

Exploded view — Central Part

Products

1 CENTRAL COVER Backorder 575558000P

•

  Footwell Cover Piaggio Group · 575558000P Backorder

  € 75,85

  Add to cart

2 SERVICE DOOR 575559000P No longer available

• 575559000P SERVICE DOOR
  No longer available

3 Cam lever Available 576626

•

  Hooks Piaggio Group · 576626 Available

  € 2,44

  Add to cart

4 Spring Available 575604

•

  Spring Piaggio Group · 575604 Available

  € 3,27

  Add to cart

5 Spacer Available 830056

•

  Sleeve Piaggio Group · 830056 Available

  € 1,48

  Add to cart

6 Plate 575605 No longer available

• 575605 Plate
  No longer available

7 Screw Available 297498

•

  Sheet Metal Screw Piaggio Group · 297498 Available

  € 0,99

  Add to cart

8 Spring Available 621507

•

  Spring Piaggio Group · 621507 Available

  € 8,55

  Add to cart

9 Maintenance Available 620491

•

  Bracket for fairing Piaggio Group · 620491 Available

  € 4,43

  Add to cart

10 Square Available AP8161182

•

  Sheet nut Piaggio Group · AP8161182 Available

  € 16,70

  Add to cart

11 Screw Available 270793

•

  Screw 3,8x16 mm Piaggio Group · 270793 · Quantity needed: 4 Available

  € 0,99

  Add to cart

12 Screw (4,2x19) Available 258249

•

  Sheet Metal Screw Piaggio Group · 258249 · Quantity needed: 2 Available

  € 0,99

  Add to cart
