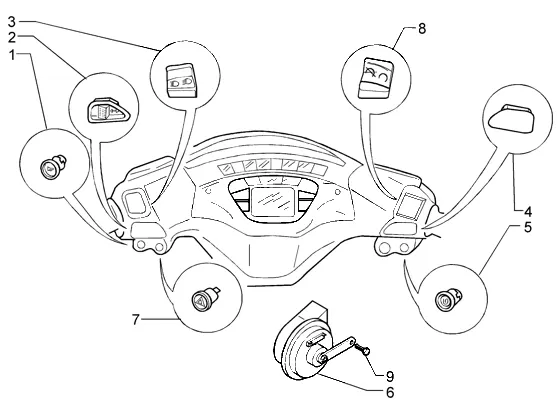

Exploded view — Electrical Device-electric Horn

‹ Back to model

Piaggio X9 125 Evolution 1998–2005

Piaggio X9 125 Evolution 1998–2005

Electrical Device-electric Horn

Products

1 Horn button Available 58058R

Horn button Piaggio Group · 58058R Available

€ 12,91

2 Indicator Switch Available 638708

Indicator switch Piaggio Group · 638708 Available

€ 21,04

3 Remote Switch Available 642670

Main beam switch Piaggio Group · 642670 Available

€ 20,09

4 Cover Available AP8127896

Lock Piaggio Group · AP8127896 Available

€ 9,80

5 Start pushbutton Available 58057R

Starter button Piaggio Group · 58057R Available

€ 8,51

6 Warning horn 12V Available 581441

Horn Piaggio X9 Piaggio Group · 581441 Available

€ 67,70

7 Button Hazard Available 58284R

Hazard warning light switch Piaggio Group · 58284R Available

€ 10,16

8 Kill switch Available 642671

Emergency off switch Piaggio Group · 642671 Available

€ 17,52

9 Screw Available B016777

Flanged Screw M6x16 Piaggio Group · B016777 Available

€ 1,48
