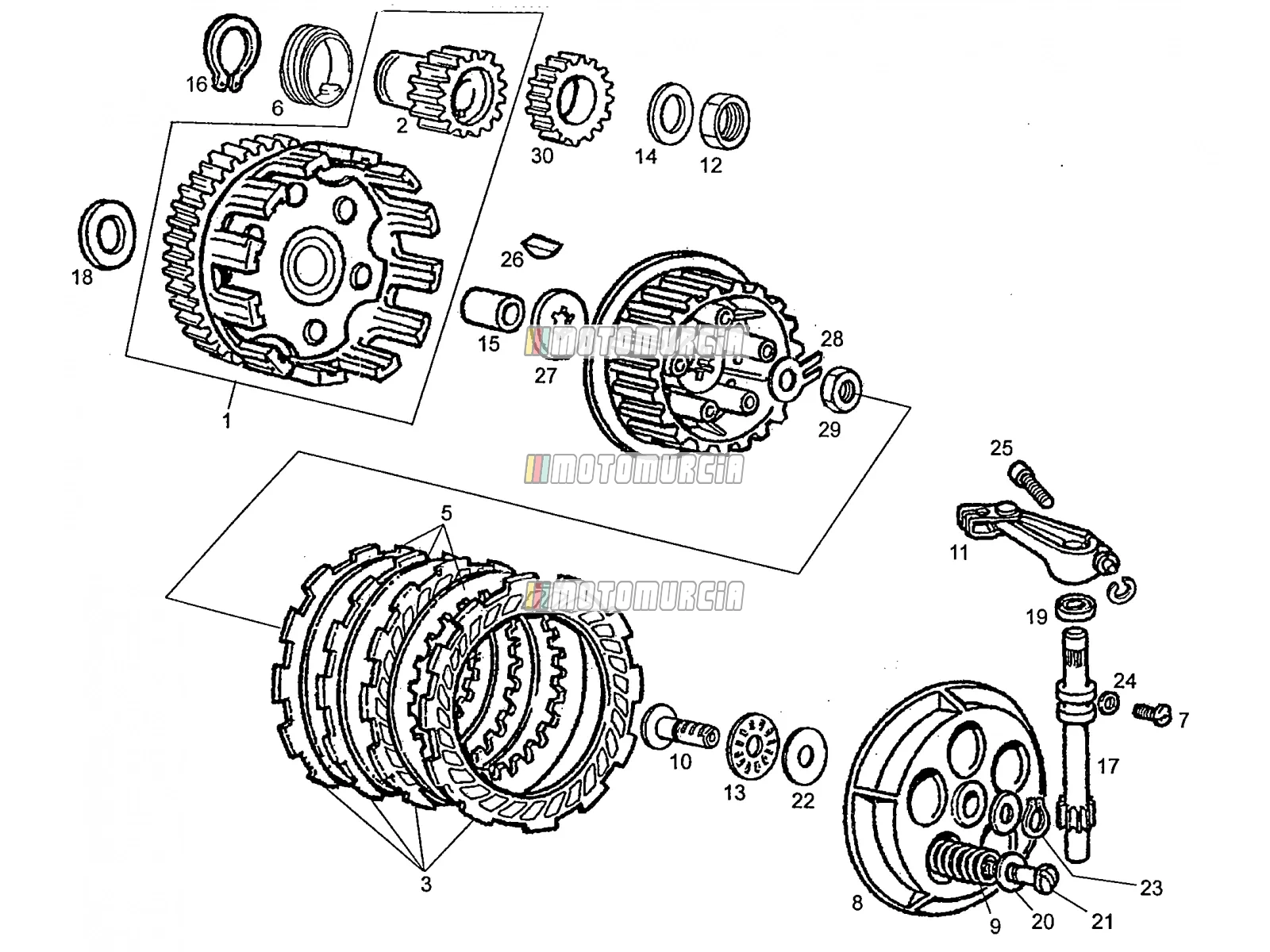

Exploded view — Clutch

Products

01 CLUTCH HOUSING AND DAMPER W. E 00H03605521 No longer available

• 00H03605521 CLUTCH HOUSING AND DAMPER W. E
  No longer available

02 PRIMARY GEAR Backorder 00H02610381

•

  Front Sprocket Number of Teeth: 22 Piaggio Group · 00H02610381 Backorder

  € 6,05

  Add to cart

03 Driving clutch disc Available 847044

•

  Clutch plates cork Piaggio Group · 847044 Available

  € 17,19

  Add to cart

04 Boss, Clutch Available 847045

•

  Clutch Case Piaggio Group · 847045 Available

  € 88,49

  Add to cart

05 DRIVEN CLUTCH PLATE Available 00H02600151

•

  Clutch plates steel Piaggio Group · 00H02600151 Available

  € 6,58

  Add to cart

06 REV COUNTER CONTROL SCREW 50/7 00H01600111 No longer available

• 00H01600111 REV COUNTER CONTROL SCREW 50/7
  No longer available

07 SHAFT FIXING BOLT 00H02600341 No longer available

• 00H02600341 SHAFT FIXING BOLT
  No longer available

08 OUTER CLUTCH PLATE 00H02600181 No longer available

• 00H02600181 OUTER CLUTCH PLATE
  No longer available

09 Clutch spring Available 847047

•

  Clutch Spring Piaggio Group · 847047 Available

  € 9,00

  Add to cart

10 PUSHING CLUTCH 00H02600271 No longer available

• 00H02600271 PUSHING CLUTCH
  No longer available

11 Clutch lever 00H02600321 No longer available

• 00H02600321 Clutch lever
  No longer available

12 Nut 00H02600401 No longer available

• 00H02600401 Nut
  No longer available

13 Bearing Available 8472226

•

  Bearing Piaggio Group · 8472226 Available

  € 21,79

  Add to cart

14 Washer Available 847276

•

  Washer Piaggio Group · 847276 Available

  € 2,78

  Add to cart

15 Spacer Backorder 497643

•

  Clutch basket Piaggio Group · 497643 Backorder

  € 431,86

  Add to cart

16 SHAFT SECURITY RING D28.DIN-47 00000047128 No longer available

• 00000047128 SHAFT SECURITY RING D28.DIN-47
  No longer available

17 CLUTCH SHAFT 00H02610311 No longer available

• 00H02610311 CLUTCH SHAFT
  No longer available

18 Washer Available 847218

•

  Washer Piaggio Group · 847218 Available

  € 8,00

  Add to cart

19 Oil seal Available 847075

•

  Shaft Seal 12x20x5 mm Piaggio Group · 847075 Available

  € 6,20

  Add to cart

20 Washer Available 847181

•

  Washer Piaggio Group · 847181 Available

  € 21,21

  Add to cart

21 SCREW M5X35 00012053500 No longer available

• 00012053500 SCREW M5X35
  No longer available

22 Washer Available 847224

•

  Spacer disc Piaggio Group · 847224 Available

  € 1,77

  Add to cart

23 Seeger Available 00000047110

•

  Circlip Piaggio Group · 00000047110 Available

  € 1,44

  Add to cart

24 Washer Available 00H03800441

•

  Washer Piaggio Group · 00H03800441 Available

  € 0,99

  Add to cart

25 Screw Available 018639

•

  Flanged Screw M6x20 Piaggio Group · 018639 Available

  € 2,77

  Add to cart

26 GEAR WOODRUFF KEY 00H02600491 No longer available

• 00H02600491 GEAR WOODRUFF KEY
  No longer available

27 Washer Backorder 00D02600552

•

  Washer Piaggio Group · 00D02600552 Backorder

  € 5,47

  Add to cart

28 Washer (Lock) Available 876418

•

  Shim Piaggio Group · 876418 Available

  € 2,78

  Add to cart

29 Nut Available 847221

•

  Standard nut Piaggio Group · 847221 Available

  € 2,35

  Add to cart

30 PUMP GUIDE GEAR 00H03800181 No longer available

• 00H03800181 PUMP GUIDE GEAR
  No longer available
