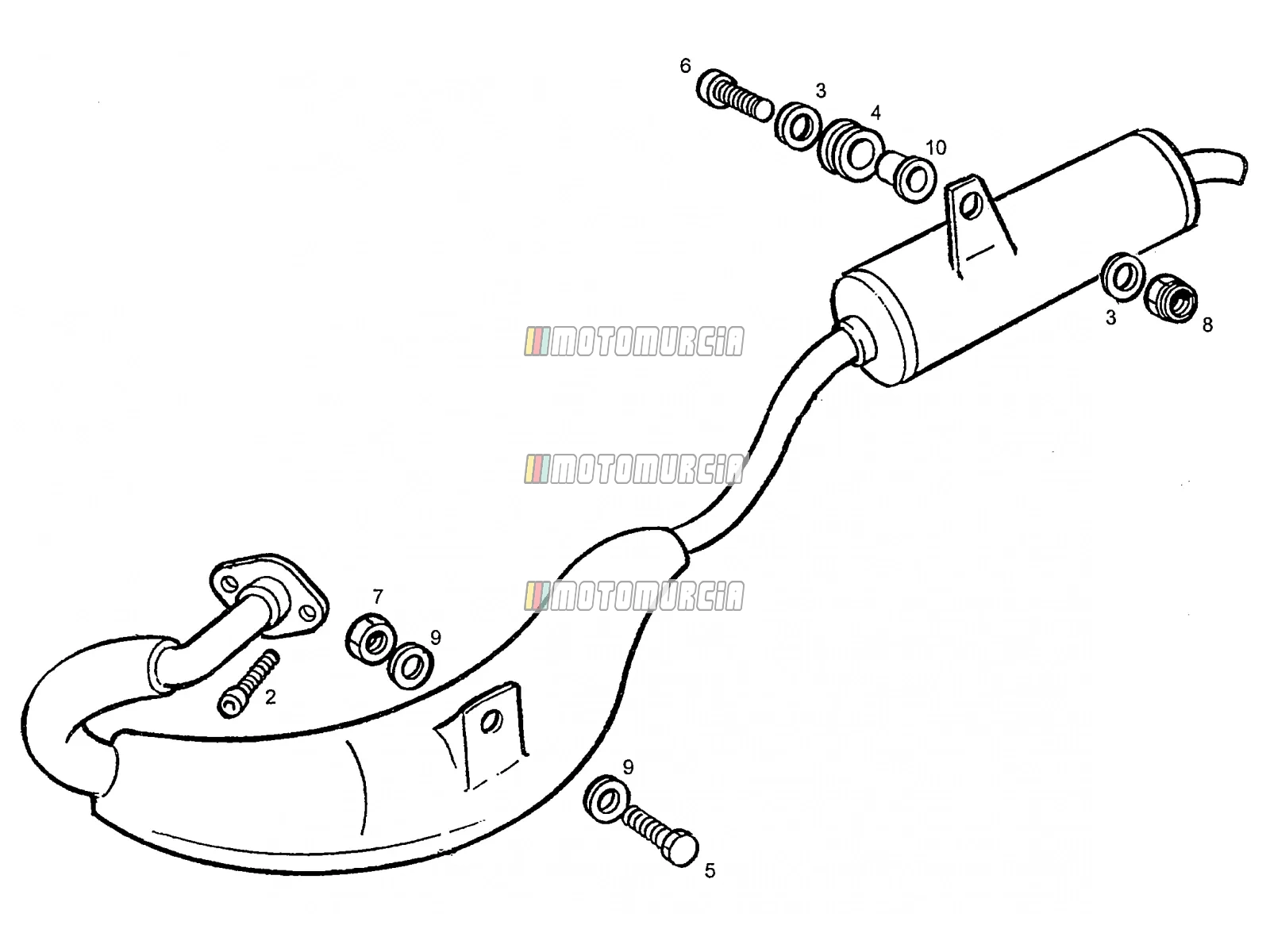

Exploded view — Exhaust Unit

Products

01 SCTO.TUBO ESC. C/PRT.GPR00 FR. 00H03426601 No longer available

• 00H03426601 SCTO.TUBO ESC. C/PRT.GPR00 FR.
  No longer available
• 00H03423601 CTO.TUBO ESC.-SIL.FEN. 97 ESP.
  No longer available
• 00H03427601 SCTO.TUBO ESC. C/PRT.GPR00 AUS
  No longer available
• 00H03421601 CTO.TUBO ESCAPE C/PROTECTOR
  No longer available

02 ALLEN SCREN 6M100X20 00000004620 No longer available

• 00000004620 ALLEN SCREN 6M100X20
  No longer available

03 Washer Available 00D01200171

•

  Shim Ø 6,00 mm Piaggio Group · 00D01200171 Available

  € 1,48

  Add to cart

04 GROMMETT, BATTERY CABLES 00E03300691 No longer available

• 00E03300691 GROMMETT, BATTERY CABLES
  No longer available

05 SCREW M8X16 00000002816 No longer available

• 00000002816 SCREW M8X16
  No longer available

06 SCREW 6M100X25 00000004625 No longer available

• 00000004625 SCREW 6M100X25
  No longer available

07 Nut Available 00000021080

•

  Standard nut Piaggio Group · 00000021080 Available

  € 2,41

  Add to cart

08 Nut Available 00000023060

•

  Standard nut M6 Piaggio Group · 00000023060 Available

  € 0,99

  Add to cart

09 Washer Available 00000031080

•

  Washer Ø 8,00 mm Piaggio Group · 00000031080 Available

  € 1,88

  Add to cart

10 Ring nut Available 00G01001821

•

  Standard nut Piaggio Group · 00G01001821 Available

  € 9,28

  Add to cart
