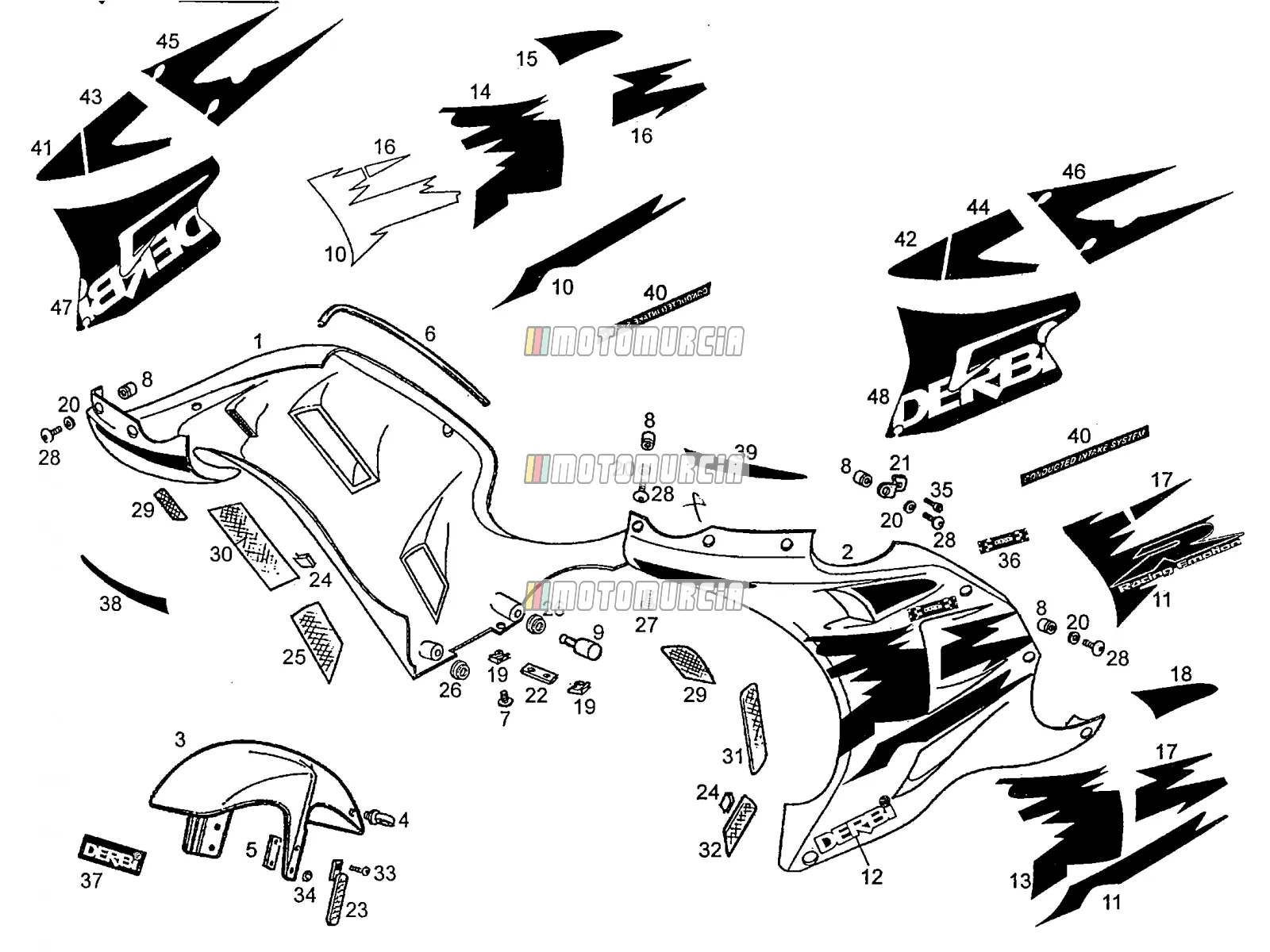

Exploded view — Front Mudguard

Products

01 R-SCTO.CAREN.DR.NGR.OMBU GPR98 00H01504234C5 No longer available

• 00H01504234C5 R-SCTO.CAREN.DR.NGR.OMBU GPR98
  No longer available
• 00H01512231C5 R-SCTO.CAREN. DR.GPR 00 ROJ.
  No longer available
• 00H01504235C5 R-SCTO.CAREN.DR.GR.ZIRC.GPR98
  No longer available
• 00H01504233C R-SCTO.CAREN.DR.GR.ZIR.GPR98
  No longer available
• 00H01504232 R-SCTO.CAREN.DR.NGR.GPR-50/R
  No longer available
• 00H01512232C5 R-SCTO.CAREN. DR. GPR 00 AZUL
  No longer available
• 00H01504231 R-SCTO.CAREN.DR.R-K GPR-50/R
  No longer available

02 R-SCTO.CAREN.IZ.GR.ZIC.GPR98 00H04903643 No longer available

• 00H04903643 R-SCTO.CAREN.IZ.GR.ZIC.GPR98
  No longer available
• 00H04903645C5 R-SCTO.CAREN.IZ.GR.ZIRC. GPR98
  No longer available
• 00H04912642C5 R-SCTO CAREN.IZ.GPR 00 AZULO/F
  No longer available
• 00H04903644 R-SCTO.CAREN.IZ.NGR.OMBU GPR98
  No longer available
• 00H04912641C R-SCTO CAREN.IZ.GPR 00 ROJ.CII
  No longer available
• 00H04903641 R-SCTO.CAREN.IZ.R-K.GPR-50 R
  No longer available
• 00H04903642 R-SCTO.CAREN.IZ.NGR.GPR-50 R
  No longer available

03 Front mudguard 00H00708023 No longer available

• 00H00708023 Front mudguard
  No longer available
• 00H00708025C5 Front mudguard
  No longer available
• 00H00708021 GUARDAB.DT.ROJO-K GPR-50 R
  No longer available
• 00H00708022 Front mudguard
  No longer available

04 Guard Available 00H02201591

•

  Protection piece Piaggio Group · 00H02201591 Available

  € 2,49

  Add to cart

05 FRONT MUDGUARD SECURING PLATE 00H05700441 No longer available

• 00H05700441 FRONT MUDGUARD SECURING PLATE
  No longer available

06 FAIRING PROFILE STRIP GPR-50"R 00H02200211 No longer available

• 00H02200211 FAIRING PROFILE STRIP GPR-50"R
  No longer available

07 Screw Available 00000004512

•

  Allen screw M5 Piaggio Group · 00000004512 Available

  € 7,07

  Add to cart

08 FAIRING SECURING SILENTBLOC NU 00H04901351 No longer available

• 00H04901351 FAIRING SECURING SILENTBLOC NU
  No longer available

09 STOP 00H06800091 No longer available

• 00H06800091 STOP
  No longer available

10 RIGHT HAND SIDE FAIRING "R" TR 00H01502402 No longer available

• 00H01502402 RIGHT HAND SIDE FAIRING "R" TR
  No longer available
• 00H01502401 RIGHT HAND SIDE FAIRING "R" TR
  No longer available
• 00H01500401 CALCA R LAT.DR.CARENADO
  No longer available
• 00H01500402 RIGHT HAND SIDE FAIRING "R" TR
  No longer available
• 00H01502403 RIGHT HAND SIDE FAIRING "R" TR
  No longer available

11 LEFT HAND SIDE FAIRING "R" TRA 00H01801962 No longer available

• 00H01801962 LEFT HAND SIDE FAIRING "R" TRA
  No longer available
• 00H01801963 LEFT HAND SIDE FAIRING "R" TRA
  No longer available
• 00H01800961 CALCA R LAT.IZ.CARENADO
  No longer available
• 00H01800962 LEFT HAND SIDE FAIRING "R" TRA
  No longer available
• 00H01801961 LEFT HAND SIDE FAIRING "R" TRA
  No longer available

12 CALCA DERBI LAT.CAREN.GPR50R 00H01502781 No longer available

• 00H01502781 CALCA DERBI LAT.CAREN.GPR50R
  No longer available
• 00H01502783 DECAL DERBI.
  No longer available
• 00H01502784 DECAL DERBI.
  No longer available
• 00H01502782 DECAL DERBI.
  No longer available

13 CALCA CENT.ANT.CAR.IZ.GPR ROJ 00H01507331 No longer available

• 00H01507331 CALCA CENT.ANT.CAR.IZ.GPR ROJ
  No longer available
• 00H01502331 CALCA CENT.IZ.CAREN.GPR50R
  No longer available
• 00H01502332 DECAL
  No longer available

14 DECAL 00H02202322 No longer available

• 00H02202322 DECAL
  No longer available
• 00H02206321 CALCA CENT.ANT.CAR.DR.GPR ROJ
  No longer available
• 00H02202321 CALCA CENT.DR.CAREN.GPR50R
  No longer available

15 CALCA SUP.DR.CAREN.INTAKE SYS. 00H04406821 No longer available

• 00H04406821 CALCA SUP.DR.CAREN.INTAKE SYS.
  No longer available
• 00H04405821 DECAL
  No longer available

16 DECAL 00H04604221 No longer available

• 00H04604221 DECAL
  No longer available
• 00H04602221 CALCA INF.DR.CAREN.GPR50R
  No longer available
• 00H04604222 DECAL
  No longer available
• 00H04602222 DECAL
  No longer available
• 00H04604223 DECAL
  No longer available

17 CALCA INF.IZ.CARENADO GPR00 AZ 00H04609232 No longer available

• 00H04609232 CALCA INF.IZ.CARENADO GPR00 AZ
  No longer available
• 00H04602231 CALCA INF.IZ.CAREN.GPR50R
  No longer available
• 00H04604232 DECAL
  No longer available
• 00H04604231 DECAL
  No longer available
• 00H04604233 DECAL
  No longer available
• 00H04602232 DECAL
  No longer available

18 REAR LOWER LEFT-HAND COVER DEC 00H04603561 No longer available

• 00H04603561 REAR LOWER LEFT-HAND COVER DEC
  No longer available

19 Clip nuts (M5) Available 00G04401462

•

  Sheet nut M5 Piaggio Group · 00G04401462 Available

  € 1,48

  Add to cart

20 8 - Front dust cover ring Available AP8120622

•

  Washer Piaggio Group · AP8120622 Available

  € 1,59

  Add to cart

21 FAIRING SECURING PLATE GPR-50" 00H01501261 No longer available

• 00H01501261 FAIRING SECURING PLATE GPR-50"
  No longer available

22 LOWER FAIRING JOINT BRACKET GP 00H01502261 No longer available

• 00H01502261 LOWER FAIRING JOINT BRACKET GP
  No longer available

23 Reflector Available 00H01802081

•

  Reflector Piaggio Group · 00H01802081 Available

  € 13,98

  Add to cart

24 GRILLE SECURING CLIP GPR-50"R" 00H04901271 No longer available

• 00H04901271 GRILLE SECURING CLIP GPR-50"R"
  No longer available

25 LOWER RIGHT HAND SIDE FAIRING 00H04901931 No longer available

• 00H04901931 LOWER RIGHT HAND SIDE FAIRING
  No longer available

26 FAIRING SECURING SILENTBLOC GP 00H05900521 No longer available

• 00H05900521 FAIRING SECURING SILENTBLOC GP
  No longer available

27 Screw (6x14) Available 00H06300861

•

  Screw M6x14 Piaggio Group · 00H06300861 Available

  € 1,44

  Add to cart

28 FAIRING SECURING SCREW 6X18 GP Available 00H06301861

•

  Screw Piaggio Group · 00H06301861 Available

  € 1,19

  Add to cart

29 UPPER LEFT HAND SIDE FAIRING G 00H06800271 No longer available

• 00H06800271 UPPER LEFT HAND SIDE FAIRING G
  No longer available

30 CENTRE RIGHT HAND SIDE FAIRING 00H06800361 No longer available

• 00H06800361 CENTRE RIGHT HAND SIDE FAIRING
  No longer available

31 CENTRE LEFT HAND SIDE FAIRING 00H06800541 No longer available

• 00H06800541 CENTRE LEFT HAND SIDE FAIRING
  No longer available

32 LOWER LEFT HAND SIDE FAIRING G 00H06800551 No longer available

• 00H06800551 LOWER LEFT HAND SIDE FAIRING G
  No longer available

33 Screw Available 00008061500

•

  Screw M6 Piaggio Group · 00008061500 Available

  € 0,99

  Add to cart

34 Washer Available 00000031060

•

  Washer Ø 6,00 mm Piaggio Group · 00000031060 Available

  € 0,99

  Add to cart

35 Screw Available 969296

•

  Flanged Screw M6x10 Piaggio Group · 969296 Available

  € 1,48

  Add to cart

36 DERBI 8 TIMES TRANSFER 00H04900231 No longer available

• 00H04900231 DERBI 8 TIMES TRANSFER
  No longer available

37 DECAL DERBI 00F04601121 No longer available

• 00F04601121 DECAL DERBI
  No longer available

38 CALCA INF.CAR.FR.DR GPR 00 ROJ 00H01507401 No longer available

• 00H01507401 CALCA INF.CAR.FR.DR GPR 00 ROJ
  No longer available
• 00H01507402 CALCA INF.CAR.FR.DR.GPR 00 AZ.
  No longer available

39 CALCA INF.CAR.FR.IZ.GPR 00 ROJ 00H01805961 No longer available

• 00H01805961 CALCA INF.CAR.FR.IZ.GPR 00 ROJ
  No longer available
• 00H01805962 CALCA INF.CAR.FR.IZ.GPR 00 AZ.
  No longer available

43 CALCA CENT.POST.CAR.DR.GPR 00 00H04905531 No longer available

• 00H04905531 CALCA CENT.POST.CAR.DR.GPR 00
  No longer available

44 CALCA CENT.POST.CAR.IZ.GPR 00 00H04905541 No longer available

• 00H04905541 CALCA CENT.POST.CAR.IZ.GPR 00
  No longer available

45 CALCA LAT.DR.ANT.COLIN GPR 00 00H00606471 No longer available

• 00H00606471 CALCA LAT.DR.ANT.COLIN GPR 00
  No longer available

46 CALCA LAT.IZ.POST.COLIN GPR 00 00H00605481 No longer available

• 00H00605481 CALCA LAT.IZ.POST.COLIN GPR 00
  No longer available

47 CALCA INF.DR.CARENADO GPR00 RJ 00H04609221 No longer available

• 00H04609221 CALCA INF.DR.CARENADO GPR00 RJ
  No longer available
• 00H04609222 CALCA INF.DR.CARENADO GPR00 AZ
  No longer available

48 CALCA INF.IZ.CARENADO GPR00 RJ 00H04609231 No longer available

• 00H04609231 CALCA INF.IZ.CARENADO GPR00 RJ
  No longer available
