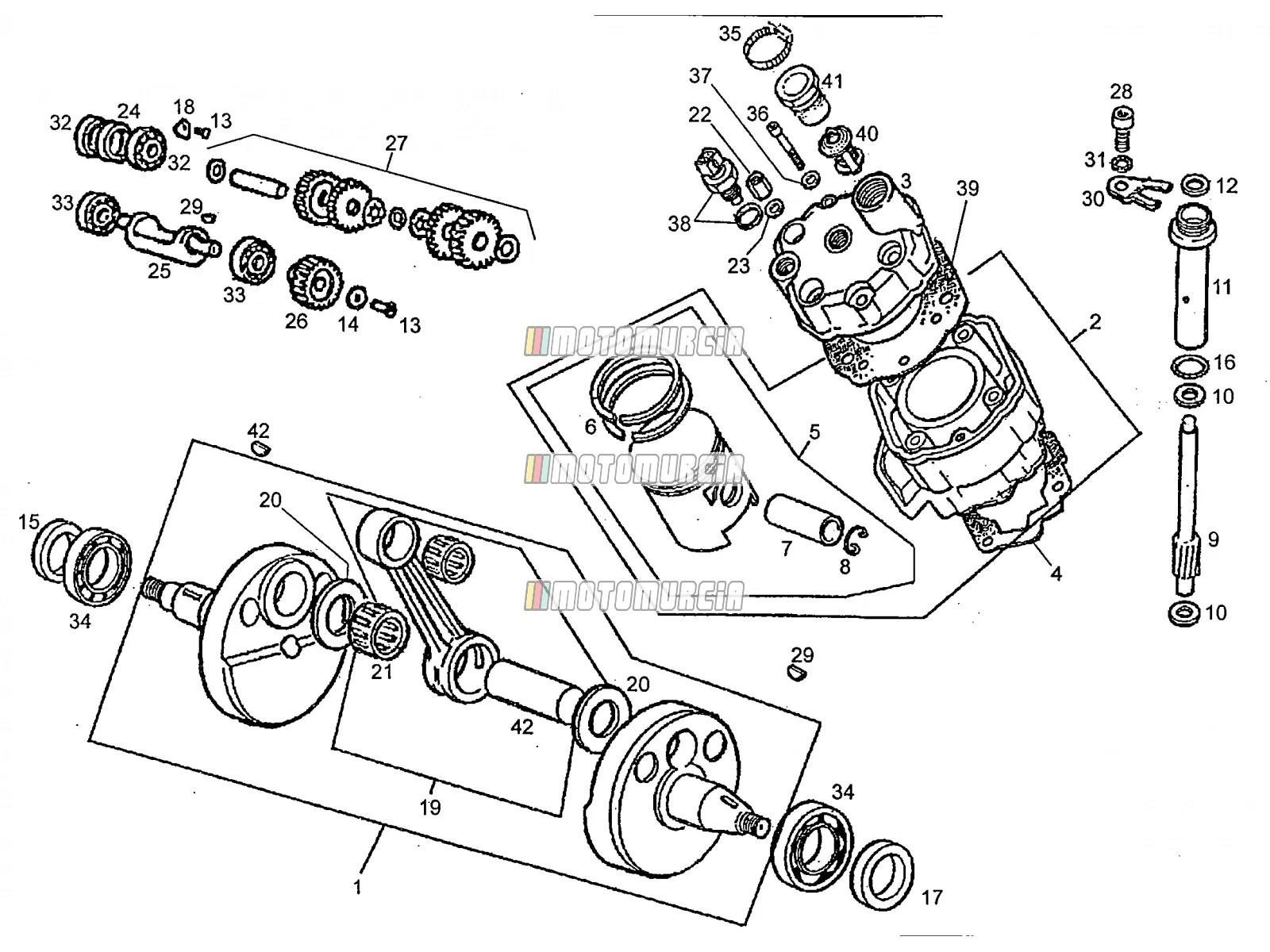

Exploded view — Drive Shaft - Cylinder - Piston

‹ Back to model
Derbi GPR 50 R 1997 Derbi GPR 50 R 1997
Drive Shaft - Cylinder - Piston

Products

01 Crankshaft 00H02503141 No longer available
  • 00H02503141 Crankshaft
    No longer available
02 R-CTO.CILIND.-PIST.GPR 50 AUST 00H05011121 No longer available
  • 00H05011121 R-CTO.CILIND.-PIST.GPR 50 AUST
    No longer available
  • 00H05007121 R-CTO.CILIND.-PISTON.SENDA-R
    No longer available
03 Cylinder head 00H02540012 No longer available
  • 00H02540012 Cylinder head
    No longer available
  • 865157 Cylinder head
    No longer available
04 Gasket - cylinder base Available 00H02500041
05 CTO.PISTON FEN-100 (B) 00H02523091 No longer available
06 Piston ring set Available 847006
07 Piston pin 00003125120 No longer available
  • 00003125120 Piston pin
    No longer available
08 Snap ring - piston pin Available 847178
09 REV COUNTER SHAFT 74-80CC 00H01600151 No longer available
  • 00H01600151 REV COUNTER SHAFT 74-80CC
    No longer available
10 REV COUNTER SHAFT WASHER 74/80 00H01600161 No longer available
  • 00H01600161 REV COUNTER SHAFT WASHER 74/80
    No longer available
11 REV COUNTER SHAFT GUIDE CASING 00H01600171 No longer available
  • 00H01600171 REV COUNTER SHAFT GUIDE CASING
    No longer available
12 REV COUNTER SHAFT SEAL G6X12X2 00H01600201 No longer available
  • 00H01600201 REV COUNTER SHAFT SEAL G6X12X2
    No longer available
13 Screw Available 00000004512
  • Allen screw M5 Piaggio Group · 00000004512 Available
    € 7,07
14 Washer 00H02810801 No longer available
  • 00H02810801 Washer
    No longer available
15 SEAL, OUTPUT SHAFT Available GU90402037
16 RING 00E02900541 No longer available
  • 00E02900541 RING
    No longer available
17 SEAL, OUTPUT SHAFT Available GU90402037
18 PLATE POSITION BALL BEARINGS 00H02500881 No longer available
  • 00H02500881 PLATE POSITION BALL BEARINGS
    No longer available
19 CONNECTING ROD W/BEARING AND P 00H05001011 No longer available
  • 00H05001011 CONNECTING ROD W/BEARING AND P
    No longer available
20 THRUST WASHER 00002225220 No longer available
  • 00002225220 THRUST WASHER
    No longer available
21 Needle bearing (12x15x14,8) Available 847529
22 Nut 00008202730 No longer available
  • 00008202730 Nut
    No longer available
23 SECURING WASHER, CYLINDER HEAD Available 00003125280
  • Washer Piaggio Group · 00003125280 Available
    € 1,46
24 BUSHING 00H05000371 No longer available
  • 00H05000371 BUSHING
    No longer available
25 AXLE Backorder 00H05010181
  • Shaft Piaggio Group · 00H05010181 Backorder
    € 30,25
26 OUTPUT Backorder 00H05010191
  • Front Sprocket Piaggio Group · 00H05010191 Backorder
    € 120,35
27 OUTPUTS SUB-ASSY Backorder 00H05010201
  • Sprocket Set Piaggio Group · 00H05010201 Backorder
    € 54,45
28 Screw Available 319446
  • Screw M6x10 Piaggio Group · 319446 Available
    € 2,77
29 Woodruff key Available 847215
30 REV COUNTER CASING LOCK PIECE 00005516210 No longer available
  • 00005516210 REV COUNTER CASING LOCK PIECE
    No longer available
31 INNER STAR WASHER 0 6 00034000602 No longer available
  • 00034000602 INNER STAR WASHER 0 6
    No longer available
32 Bearing 00058000000 No longer available
  • 00058000000 Bearing
    No longer available
33 Bearing Available 847016
34 Crankshaft bearing Available 8471726
35 Clamp 00H03800451 No longer available
  • 00H03800451 Clamp
    No longer available
36 Screw Available 414838
  • Screw M6x35 Piaggio Group · 414838 Available
    € 1,48
37 CRANKSHAFT PIN Backorder 00002025190
  • Wrist Pin Piaggio Group · 00002025190 Backorder
    € 29,28
38 CLUTCH PLATE Available 00H02302441
39 Cylinder head gasket Available 00H02501021
40 Thermostat 00H03800431 No longer available
  • 00H03800431 Thermostat
    No longer available
41 Nut 00H03810421 No longer available
  • 00H03810421 Nut
    No longer available
42 GEAR WOODRUFF KEY 00H02600491 No longer available
  • 00H02600491 GEAR WOODRUFF KEY
    No longer available

More drawings of this model
