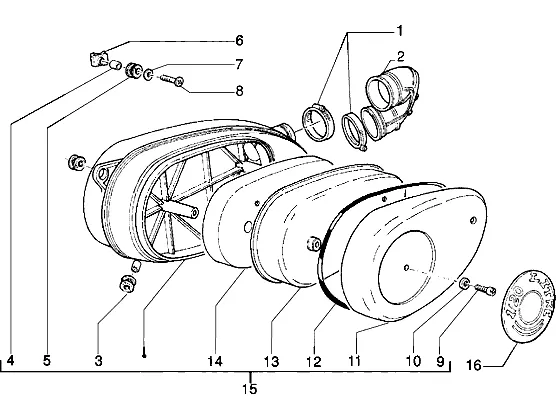

Exploded view — Air Cleaner

Products

1 Hose clamp Available 257134

•

  Cable Ties length: 27,7cm Piaggio Group · 257134 · Quantity needed: 2 Available

  € 0,99

  Add to cart

2 Pipe 951506 No longer available

• 951506 Pipe
  No longer available

3 Damper Available 257301

•

  Buffer Piaggio Group · 257301 · Quantity needed: 2 Available

  € 2,48

  Add to cart

4 Spacer Available 257302

•

  Spacer Piaggio Group · 257302 · Quantity needed: 2 Available

  € 0,99

  Add to cart

5 Pad Available 939278

•

  Buffer Piaggio Group · 939278 Available

  € 4,89

  Add to cart

6 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available

  € 2,04

  Add to cart

7 Washer Available 179575

•

  Washer Piaggio Group · 179575 · Quantity needed: 2 Available

  € 1,52

  Add to cart

8 Screw Available 015759

•

  Screw M6x20 Piaggio Group · 015759 · Quantity needed: 2 Available

  € 1,39

  Add to cart

9 Screw 432557 No longer available

• 432557 Screw Quantity needed: 2
  No longer available

10 Washer Available 567602

•

  Washer Piaggio Group · 567602 · Quantity needed: 2 Available

  € 2,26

  Add to cart

11 Cover 432556 No longer available

• 432556 Cover
  No longer available

12 Gasket 433699 No longer available

• 433699 Gasket
  No longer available

13 Cover 432555 No longer available

• 432555 Cover
  No longer available

14 Air filter 432561 No longer available

• 432561 Air filter
  No longer available

15 Air filter box 432552 No longer available

• 432552 Air filter box
  No longer available

16 Decal 463615 No longer available

• 463615 Decal Quantity needed: 2
  No longer available
