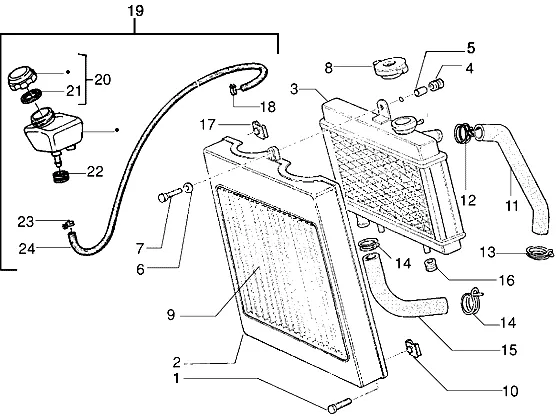

Exploded view — Radiator

‹ Back to model
Gilera Eaglet automatic 1998–2005 Gilera Eaglet automatic 1998–2005
Radiator

Products

1 Screw Available 259349
  • Screw 4,2x13 mm Piaggio Group · 259349 · Quantity needed: 2 Available
    € 0,99
2 Guard 8193005 No longer available
  • 8193005 Guard
    No longer available
  • 8193005095 Mask
    No longer available
3 Radiator - water cooler 951666 No longer available
  • 951666 Radiator - water cooler
    No longer available
4 Pad Available 217163
  • Buffer Piaggio Group · 217163 Available
    € 1,38
5 Spacer 463577 No longer available
  • 463577 Spacer
    No longer available
6 Washer Available 003056
7 Screw Available 031092
  • Screw M6x25 Piaggio Group · 031092 Available
    € 0,99
8 Cover 951675 No longer available
  • 951675 Cover
    No longer available
9 Grid 463578 No longer available
  • 463578 Grid
    No longer available
10 Clip nuts Available CM017408
  • Sheet nut Piaggio Group · CM017408 · Quantity needed: 2 Available
    € 0,99
11 Pipe 463573 No longer available
  • 463573 Pipe
    No longer available
12 Clamp 327310 No longer available
  • 327310 Clamp
    No longer available
13 Clamp Available CM001908
  • Hose Clamp Piaggio Group · CM001908 Available
    € 2,35
14 Clamp 327196 No longer available
  • 327196 Clamp Quantity needed: 2
    No longer available
15 Pipe 951522 No longer available
  • 951522 Pipe
    No longer available
16 Upper rubber Available 351782
  • Buffer Piaggio Group · 351782 · Quantity needed: 2 Available
    € 2,67
17 Retaining plate Available 259539
  • Standard nut Piaggio Group · 259539 · Quantity needed: 4 Available
    € 1,21
18 Clamp Available CM002907
  • Hose Clamp Piaggio Group · CM002907 Available
    € 1,48
19 Tank 941120 No longer available
  • 941120 Tank
    No longer available
20 Fuel cap 3283175 No longer available
  • 3283175 Fuel cap
    No longer available
21 Gasket 328311 No longer available
  • 328311 Gasket
    No longer available
22 Gasket 329334 No longer available
  • 329334 Gasket
    No longer available
23 Clamp Available CM002904
24 Pipe 951625 No longer available
  • 951625 Pipe
    No longer available
