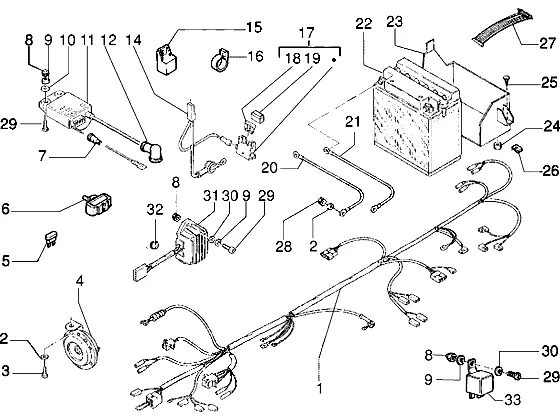

Exploded view — Electric Devices-battery

Products

1 Main wiring harness 294584 No longer available

• 294584 Main wiring harness
  No longer available

2 Washer Available 016406

•

  Washer 6,4x11,8x1 mm Piaggio Group · 016406 · Quantity needed: 3 Available

  € 1,79

  Add to cart

3 Screw Available 031086

•

  Screw M6x12 Piaggio Group · 031086 Available

  € 1,31

  Add to cart

4 Sound alarm 580238 No longer available

• 580238 Sound alarm
  No longer available

5 Flasher relay 1D002376 No longer available

• 1D002376 Flasher relay
  No longer available

6 Elastic support Available 291017

•

  Bracket for flasher unit, elastic Piaggio Group · 291017 Available

  € 14,65

  Add to cart

7 Insulating cap Available 231571

•

  Cap Piaggio Group · 231571 Available

  € 3,84

  Add to cart

8 Nut Available 020105

•

  Standard nut Piaggio Group · 020105 · Quantity needed: 4 Available

  € 1,88

  Add to cart

9 Washer (spring) Available 016405

•

  Spring Washer Piaggio Group · 016405 · Quantity needed: 4 Available

  € 1,84

  Add to cart

10 Washer Available 003055

•

  Washer 5,4x10x0,8 mm Piaggio Group · 003055 · Quantity needed: 2 Available

  € 1,88

  Add to cart

11 Electronic ignition device 294286 No longer available

• 294286 Electronic ignition device
  No longer available

12 Spark plug cap Available 1D000275

•

  Spark Plug Connector Piaggio Group · 1D000275 Available

  € 48,05

  Add to cart

14 Positive cable 944442 No longer available

• 944442 Positive cable
  No longer available

15 Relay - starter Available 58115R

•

  Starting Relay 12 V, 80 A Piaggio Group · 58115R Available

  € 24,91

  Add to cart

16 Relay rubber Backorder 942577

•

  Rubber Piaggio Group · 942577 Backorder

  € 13,94

  Add to cart

17 Fuse holder Available 290402

•

  Fuse Box Piaggio Group · 290402 Available

  € 10,93

  Add to cart

18 Fuse (7,5A) Available 252945

•

  Fuse 7,5 A Piaggio Group · 252945 Available

  € 2,86

  Add to cart

19 Cover Available 290404

•

  Lid Piaggio Group · 290404 Available

  € 9,08

  Add to cart

20 Ground cable 944223 No longer available

• 944223 Ground cable
  No longer available

21 Negative cable 942601 No longer available

• 942601 Negative cable
  No longer available

22 Battery Available 1L004081

•

  Batterie PTX4L-BS, 12 V, 4 A, Maintenance-Free / MF, with acid pack, 115x70x85 mm Piaggio Group · 1L004081 Available

  € 56,72

  Add to cart
• Battery (YB4L-B)
  No longer available
•

  Batterie PB4L-B, 12 V, 4 A, Standard, with acid pack, 121x71x93 mm Piaggio Group · 1L004079 Available

  € 32,48

  Add to cart
•

  Batterie PB4L-B, 12 V, 4 A, Standard, without acid pack, 121x71x93 mm Piaggio Group · 1L004080 Available

  € 31,45

  Add to cart

23 Battery holder case 942441 No longer available

• 942441 Battery holder case
  No longer available

24 Pad Available 939278

•

  Buffer Piaggio Group · 939278 · Quantity needed: 2 Available

  € 4,89

  Add to cart

25 Screw Available 296170

•

  Screw M6x14 Piaggio Group · 296170 Available

  € 0,99

  Add to cart

26 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 Available

  € 2,04

  Add to cart

27 Belt 327247 No longer available

• 327247 Belt
  No longer available

28 Nut Available 020106

•

  Standard nut M6 Piaggio Group · 020106 Available

  € 1,84

  Add to cart

29 Screw Available 031059

•

  Threaded bolts Piaggio Group · 031059 · Quantity needed: 4 Available

  € 1,65

  Add to cart

31 Regulator 294283 No longer available

• 294283 Regulator
  No longer available

32 Lock-strap L=180mm Available 145298

•

  Cable Ties black, length: 18,0cm Piaggio Group · 145298 · Quantity needed: 10 Available

  € 1,43

  Add to cart

33 Switch electromagnetic switch 12V-40/15A (12V-40/15A) Available 292332

•

  Remote Control Piaggio Group · 292332 Available

  € 61,09

  Add to cart
