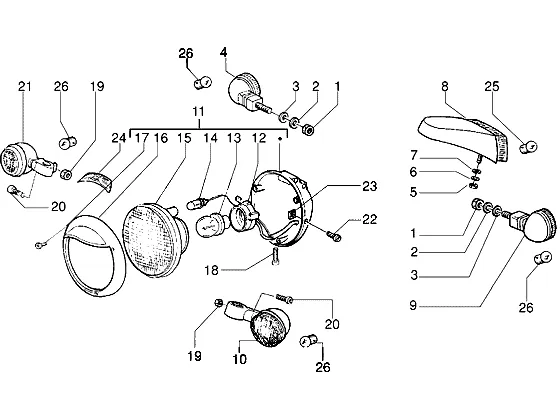

Exploded view — Headlamps And Turn Signal Lamps

Products

1 Nut M12x1,25 Available 021212

•

  Standard nut Piaggio Group · 021212 · Quantity needed: 2 Available

  € 1,48

  Add to cart

2 Washer Available 003062

•

  Washer Piaggio Group · 003062 · Quantity needed: 2 Available

  € 1,43

  Add to cart

3 Washer Available 012555

•

  Washer Piaggio Group · 012555 · Quantity needed: 2 Available

  € 1,51

  Add to cart

4 RH FF INDICATOR COGUAR 292757 No longer available

• 292757 RH FF INDICATOR COGUAR
  No longer available

5 Nut Available 020106

•

  Standard nut M6 Piaggio Group · 020106 · Quantity needed: 2 Available

  € 1,84

  Add to cart

6 Washer Available 016406

•

  Washer 6,4x11,8x1 mm Piaggio Group · 016406 · Quantity needed: 2 Available

  € 1,79

  Add to cart

7 Washer Available 003056

•

  Washer 6,4x12x1 mm Piaggio Group · 003056 · Quantity needed: 2 Available

  € 1,84

  Add to cart

8 Taillight assy. 292721 No longer available

• 292721 Taillight assy.
  No longer available

9 Turn indicator Backorder 292756

•

  Indicator rear, left Piaggio Group · 292756 Backorder

  € 51,99

  Add to cart

10 Turn indicator 292754 No longer available

• 292754 Turn indicator
  No longer available

11 Headlight 294512 No longer available

• 294512 Headlight
  No longer available

12 Lampholder 252288 No longer available

• 252288 Lampholder
  No longer available

13 Bulb (BA20D 12V 35/35W) Available 219528

•

  Bulbs Bulb, 12 V, 35/35 W, BA20d Piaggio Group · 219528 Available

  € 10,09

  Add to cart

14 Bulb Available 163015

•

  Bulbs Bulb, 12 V, 4 W, BA9s Piaggio Group · 163015 Available

  € 1,77

  Add to cart

15 Headlight 265939 No longer available

• 265939 Headlight
  No longer available

16 Ring 292816 No longer available

• 292816 Ring
  No longer available

17 Screw 291143 No longer available

• 291143 Screw Quantity needed: 3
  No longer available

18 Screw 292817 No longer available

• 292817 Screw
  No longer available

19 Nut 9004179059000 No longer available

• 9004179059000 Nut Quantity needed: 2
  No longer available

20 Screw Available 828662

•

  Screw M5x22 Piaggio Group · 828662 · Quantity needed: 2 Available

  € 1,52

  Add to cart

21 TRAFF.LIGTH 292755 No longer available

• 292755 TRAFF.LIGTH
  No longer available

22 Screw 292818 No longer available

• 292818 Screw Quantity needed: 2
  No longer available

23 Nut 233255 No longer available

• 233255 Nut Quantity needed: 2
  No longer available

24 Decal 463616 No longer available

• 463616 Decal
  No longer available

25 Bulb (12V 21/5W) Available 129953

•

  Bulbs Bulb, 12 V, 21/5 W, BAY15d Piaggio Group · 129953 Available

  € 3,73

  Add to cart

26 Bulb (BA15S 12V 10W) Available 181746

•

  Bulbs Bulb, 12 V, 10 W, BA15s Piaggio Group · 181746 · Quantity needed: 4 Available

  € 3,17

  Add to cart
