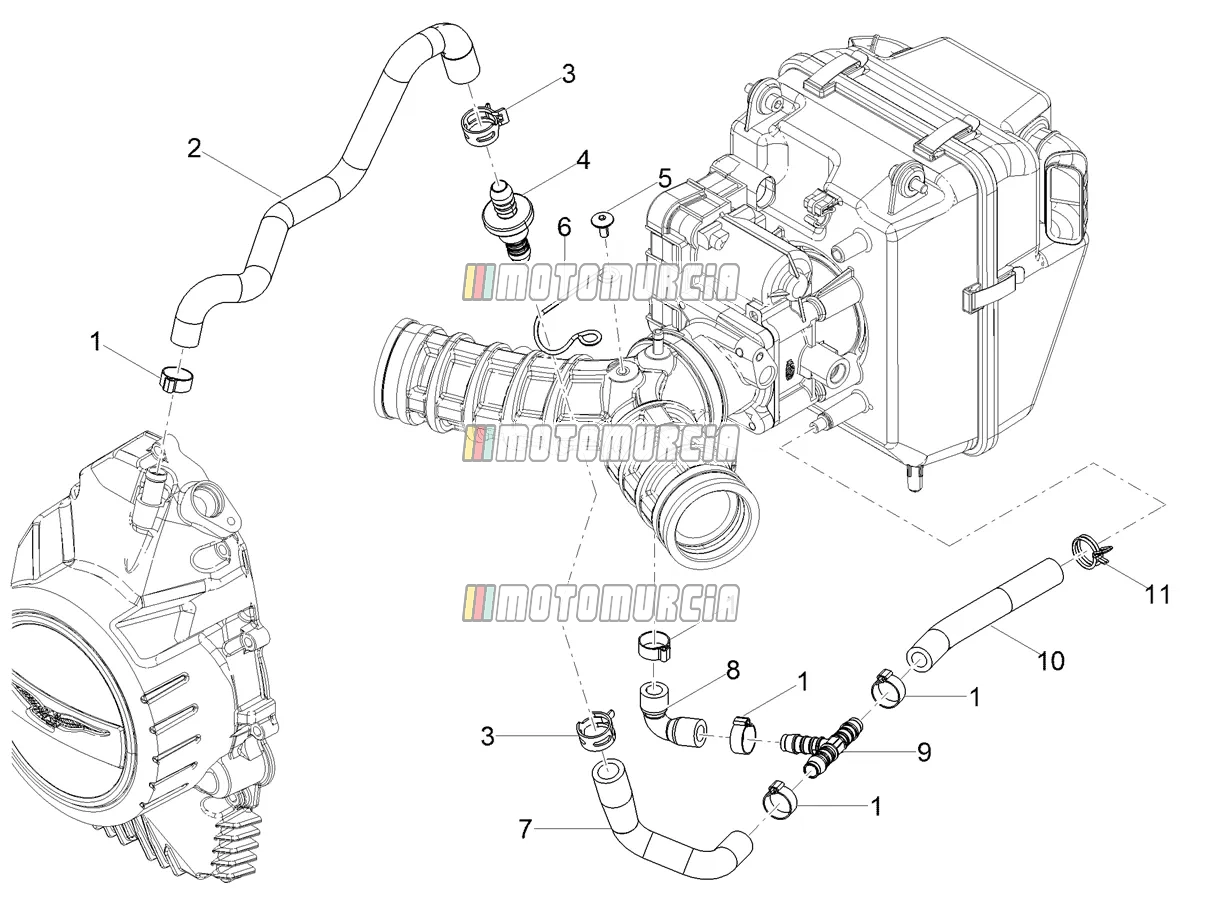

Exploded view — Blow-by System

Products

1 Clamp Available AP8102349

•

  Clamp Click white, 17,5x8 mm Piaggio Group · AP8102349 · Quantity needed: 5 Available

  € 11,88

  Add to cart

2 Blow-by pipe Available 2B005445

•

  Hose Piaggio Group · 2B005445 Available

  € 92,53

  Add to cart

3 Spring clamp 19/12 Available CM226902

•

  Clamp Piaggio Group · CM226902 · Quantity needed: 2 Available

  € 1,83

  Add to cart

4 Anti-return valve Available 2B003105

•

  Valve Piaggio Group · 2B003105 Available

  € 35,15

  Add to cart

5 Screw Available AP8150500

•

  Screw M5x9 Piaggio Group · AP8150500 Available

  € 2,47

  Add to cart

6 Fastener cable Backorder AP8114502

•

  Cable Piaggio Group · AP8114502 Backorder

  € 10,64

  Add to cart

7 Blow-by pipe Backorder 2B006204

•

  Pipe Piaggio Group · 2B006204 Backorder

  € 13,21

  Add to cart

8 Intake Manifold Available 2B006203

•

  Pipe Piaggio Group · 2B006203 Available

  € 14,69

  Add to cart

9 Tee union Available 2B0061249

•

  Coupler Piaggio Group · 2B0061249 Available

  € 10,21

  Add to cart

10 Blow-by pipe Backorder 2B006205

•

  Pipe Piaggio Group · 2B006205 Backorder

  € 15,00

  Add to cart

11 Clamp Available CM002912

•

  Clamping Spring Piaggio Group · CM002912 Available

  € 0,99

  Add to cart
