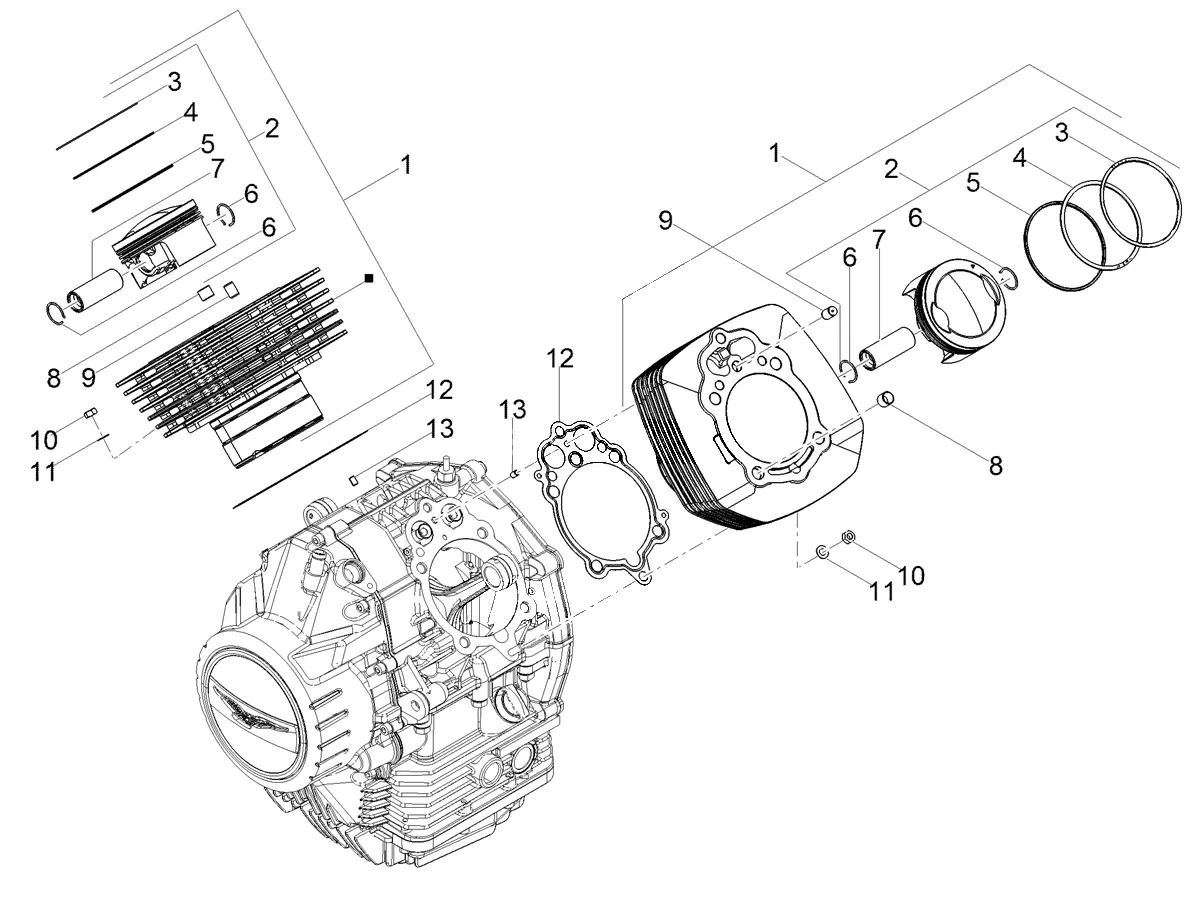

Exploded view — Cylinder - Piston

Products

1 Cylinder kit 1A0153455 No longer available

• 1A0153455 Cylinder kit Quantity needed: 2
  No longer available

2 Complete piston, cat. M 1A0152720M No longer available

• 1A0152720M Complete piston, cat. M Quantity needed: 2
  No longer available
• 1A0152720L Complete piston, cat. L
  No longer available
• 1A0152720H Complete piston, cat. H
  No longer available
• 1A0152720G Complete piston, cat. G
  No longer available

3 Compression ring Available 1A013936

•

  Piston Ring Piaggio Group · 1A013936 · Quantity needed: 2 Available

  € 34,61

  Add to cart

4 Compression ring Available 1A004954

•

  Piston Ring Piaggio Group · 1A004954 · Quantity needed: 2 Available

  € 34,94

  Add to cart

5 Oil scraper ring Available 1A004955

•

  Piston Ring Piaggio Group · 1A004955 · Quantity needed: 2 Available

  € 21,14

  Add to cart

6 Crank pin retainer ring Available 1A011548

•

  Piston Clip Piaggio Group · 1A011548 · Quantity needed: 4 Available

  € 12,39

  Add to cart

7 Piston pin Backorder 1A008933

•

  Piston Pin Piaggio Group · 1A008933 · Quantity needed: 2 Backorder

  € 40,51

  Add to cart

8 12 - Pin 11,8X10 (11,8x10) Available 825597

•

  Adapter Sleeve Piaggio Group · 825597 · Quantity needed: 2 Available

  € 2,63

  Add to cart

9 Bushing Available GU19021360

•

  Adapter Sleeve Piaggio Group · GU19021360 · Quantity needed: 2 Available

  € 20,28

  Add to cart

10 Nut Available GU92606206

•

  Standard nut M6 Piaggio Group · GU92606206 · Quantity needed: 2 Available

  € 1,28

  Add to cart

11 Washer Available GU03013800

•

  Washer 6,4x12 mm Piaggio Group · GU03013800 · Quantity needed: 2 Available

  € 2,66

  Add to cart

12 Gasket - cylinder base Available 1A010855

•

  Cylinder Base Gasket Piaggio Group · 1A010855 · Quantity needed: 2 Available

  € 20,95

  Add to cart

13 Dowel pin Available 484993

•

  Adapter Sleeve 5x8 Piaggio Group · 484993 · Quantity needed: 2 Available

  € 1,65

  Add to cart
