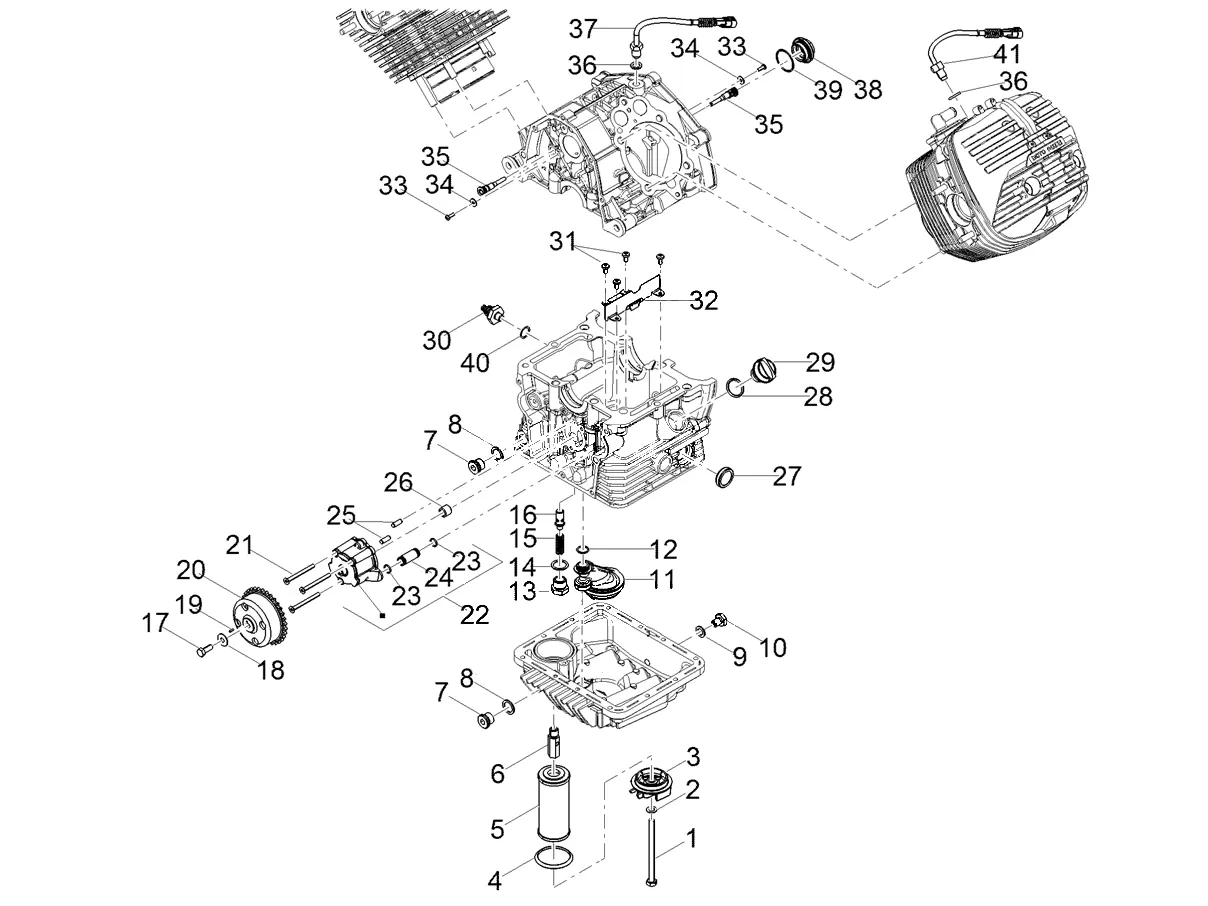

Exploded view — Lubrication
‹ Back to model
Products
1 Screw Available
-
- From engine PG17800
- From engine PK3120
Threaded bolts Piaggio Group · GU27152885 Available · Shipped in 3–5 working days€ 11,36
2 Washer gasket (8,25x15x1) Available
-
- First series
- For frame VIN<PD 30999
Gasket 8,25x15x1 mm Piaggio Group · GU12154200 Available · Shipped in 3–5 working days€ 3,00
3 Oil filter cover Available
-
Oil Filter Cover Piaggio Group · 1A013815 Available · Shipped in 3–5 working days€ 14,13
4 O-Ring Available
-
O-Ring Piaggio Group · GU90706444 Available · Shipped in 3–5 working days€ 1,61
5 Oil filter Available
-
Oil Filter Piaggio Group · 2A000633 Available · Shipped in 3–5 working days€ 30,44
6 Joint Available
-
GU19003800 JointPillar nut Piaggio Group · GU190038006 ↻ Replaces GU19003800, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 27,90
7 Plug Available
-
Lid Piaggio Group · 1A015068 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 5,15
8 Washer gasket Available
-
Copper Flange Gasket Piaggio Group · 287174 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 2,86
9 Washer gasket Available
-
Gasket Piaggio Group · GU10528900 Available · Shipped in 3–5 working days€ 5,05
10 Oil drain plug (Magnetic) Available
-
Oil drain screw M10x1 Piaggio Group · GU31003766 Available · Shipped in 3–5 working days€ 16,82
11 Oil strainer Available
-
Oil Filter Piaggio Group · 1A004549 Available · Shipped in 3–5 working days€ 105,92
12 O-Ring Available
-
O-Ring Piaggio Group · 237553 Available · Shipped in 3–5 working days€ 2,24
13 Cover Backorder
-
Screw Plug Piaggio Group · GU31159050 Backorder · Shipped in 2–4 weeks€ 16,98
14 Washer gasket Available
-
Copper Flange Gasket 18,25x24x1 mm Piaggio Group · GU18144350 Available · Shipped in 3–5 working days€ 7,25
15 Spring Available
-
Spring Piaggio Group · GU94321079 Available · Shipped in 3–5 working days€ 35,76
16 Oil pressure adjusting valve Available
-
Oil pressure Valve Piaggio Group · 1A014844 Available · Shipped in 3–5 working days€ 15,91
17 M7x18 pre-coated hex head screw Available
-
Screw M7x18 Piaggio Group · 1A014410 Available · Shipped in 3–5 working days€ 4,26
18 Belleville spring Available
-
Washer Piaggio Group · 1A014411 Available · Shipped in 3–5 working days€ 3,71
19 Roller Available
-
Pin Piaggio Group · GU92296723 Available · Shipped in 3–5 working days€ 13,67
20 Oil pump gear Backorder
-
Oil Pump Gear Piaggio Group · 1A015490 Backorder · Shipped in 2–4 weeks€ 277,33
21 Screw (countersunk) Available
-
Countersunk Screw M5x55 Piaggio Group · 1A008533 · Quantity needed: 3 Available · Shipped in 3–5 working days€ 3,71
22 Oil pump assembly Backorder
-
1A015236 Oil pump assemblyOil pump Piaggio Group · 1A019354R ↻ Replaces 1A015236, which the manufacturer no longer supplies. Backorder · Shipped in 2–4 weeks€ 334,95
23 Seal ring (o-ring) Available
-
O-Ring Piaggio Group · 1A008325 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 3,42
24 Hose union Backorder
-
Pipe Piaggio Group · 1A008291 Backorder · Shipped in 2–4 weeks€ 28,53
25 Pin Backorder
-
Adapter Sleeve Piaggio Group · GU19018920 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks€ 5,08
26 Roller cage 10x14x12 Backorder
-
Needle bearing Piaggio Group · 976168 Backorder · Shipped in 2–4 weeks€ 34,68
27 Oil level indicator Available
-
Oil dipstick Piaggio Group · 485693 Available · Shipped in 3–5 working days€ 17,93
28 O-Ring Available
-
Cylinder Head Gasket Piaggio Group · 1A014908 Available · Shipped in 3–5 working days€ 5,29
29 Oil load plug
-
1A011612 Oil load plugNo longer available
30 Minimum oil pressure sensor Available
-
1A014570 Minimum oil pressure sensorOil pressure switch Piaggio Group · 1A017929 ↻ Replaces 1A014570, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 34,03
31 Screw Available
-
Screw M5x10 Piaggio Group · 1A003111 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 3,06
32 Panel Backorder
-
Oil Partition Plate Piaggio Group · 1A008566 Backorder · Shipped in 2–4 weeks€ 17,53
33 Screw Backorder
-
Screw Piaggio Group · 1A005257 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks€ 1,00
34 Washer Available
-
- Switzerland version E3
- Year of manufacture: 2011
- Country: Australia
- Country: China
- Country: Indonesia
Washer 4,2x12x1 mm Piaggio Group · 013763 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 0,99
35 Piston cooling jet Backorder
-
Cooling nozzle Piaggio Group · 1A004442 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks€ 36,30
36 Washer gasket Available
-
Shim Piaggio Group · 486075 Available · Shipped in 3–5 working days€ 1,51
37 Heat temperature sensor Available
-
Temperature probe Piaggio Group · 887421 Available · Shipped in 3–5 working days€ 160,60
38 Oil drain plug Available
-
Lid Piaggio Group · B015598 Available · Shipped in 3–5 working days€ 6,90
39 Gasket - oil drain plug Available
-
O-Ring 31,47x1,78 mm Piaggio Group · 285536 Available · Shipped in 3–5 working days€ 2,04
40 Gasket - oil drain plug Available
-
Shim Piaggio Group · GU95100309 Available · Shipped in 3–5 working days€ 2,76
41 Temp. Sensor Available
-
1A014658 Temp. SensorTemperature probe Piaggio Group · 1A016440 ↻ Replaces 1A014658, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 51,79
