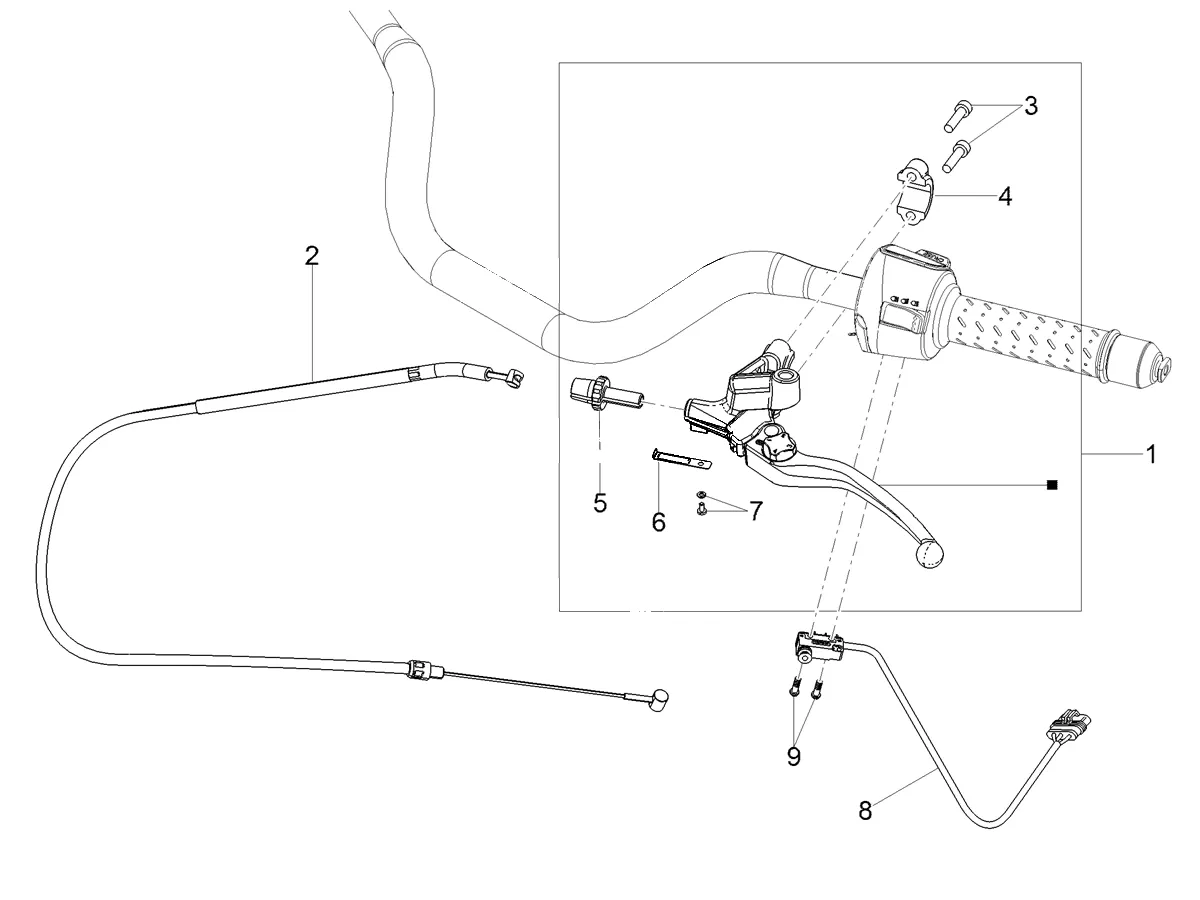

Exploded view — Clutch Control

‹ Back to model

Clutch Control

Products

1 Clutch lever Available 2B004720

Clutch Lever Piaggio Group · 2B004720 Available

€ 174,32

2 Clutch cable Available 2B005851

Clutch cable Piaggio Group · 2B005851 Available

€ 41,90

3 Screw (M6x25) Backorder 2B006308

Screw M6x25 Piaggio Group · 2B006308 · Quantity needed: 2 Backorder

€ 4,74

4 U-bolt Available 856050

Handlebar clamp bracket Piaggio Group · 856050 Available

€ 10,62

5 Clutch cable register Available 2B004721

Adjustment Screw Piaggio Group · 2B004721 Available

€ 51,03

6 Spring Available 2B006307

Spring Piaggio Group · 2B006307 Available

€ 5,06

7 Screw Available 2B006306

Screw Piaggio Group · 2B006306 Available

€ 1,98

8 Diagnosable clutch switch Available 2D000497

Clutch switch Piaggio Group · 2D000497 Available

€ 112,80

9 Screw (spec) Available 654174

Screw M2x12 Piaggio Group · 654174 · Quantity needed: 2 Available

€ 1,48
