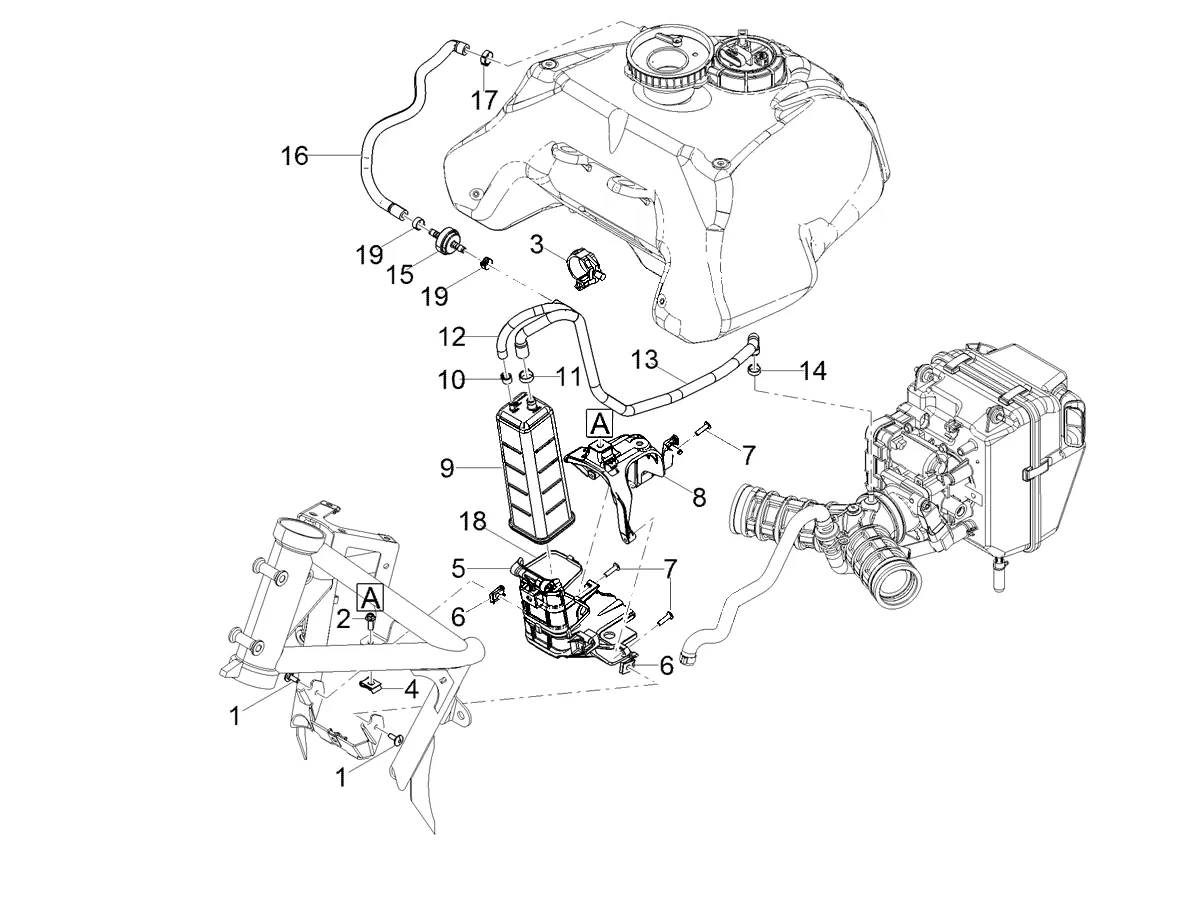

Exploded view — Fuel Vapour Recover System

‹ Back to model
Fuel Vapour Recover System

Products

1 Screw Available 2B014101
  • Screw Piaggio Group · 2B014101 · Quantity needed: 2 Available
    € 3,78
2 Screw Available 598839
3 10 - Fairlead Available CM006903
  • Clamp Piaggio Group · CM006903 Available
    € 4,51
4 Clip nuts (M6) Available 254485
  • Sheet nut Piaggio Group · 254485 Available
    € 2,04
5 Support clamp Backorder 2B004991
  • Shackle Piaggio Group · 2B004991 Backorder
    € 24,64
6 Clip nuts (M5) Available AP8102375
  • Sheet nut M5 Piaggio Group · AP8102375 · Quantity needed: 2 Available
    € 2,47
7 Screw Available AP8152329
  • Screw M5x20 Piaggio Group · AP8152329 Available
    € 2,18
8 Upper bracket Backorder 2B005243
  • Bracket Piaggio Group · 2B005243 Backorder
    € 30,78
9 Canister Backorder 2B005142
10 Hose clamp Available AP8102738
11 Clamp Available AP8101586
12 Canister / valve pipe Available 2B004280
13 Induction joint canister pipe Backorder 2B005857
  • Hose Piaggio Group · 2B005857 Backorder
    € 53,54
14 Clamp Available AP8102239
15 Safety valve Available CM179008
  • Valve Piaggio Group · CM179008 Available
    € 48,56
16 Pipe SAE 30 d.12,7x6,35 Available 856063
17 Clamp Available AP8102764
18 Clamp Available GU93304390
19 Clamp Available AP8102520
  • Hose Clamp Piaggio Group · AP8102520 · Quantity needed: 2 Available
    € 2,35

More drawings of this model

View all →
