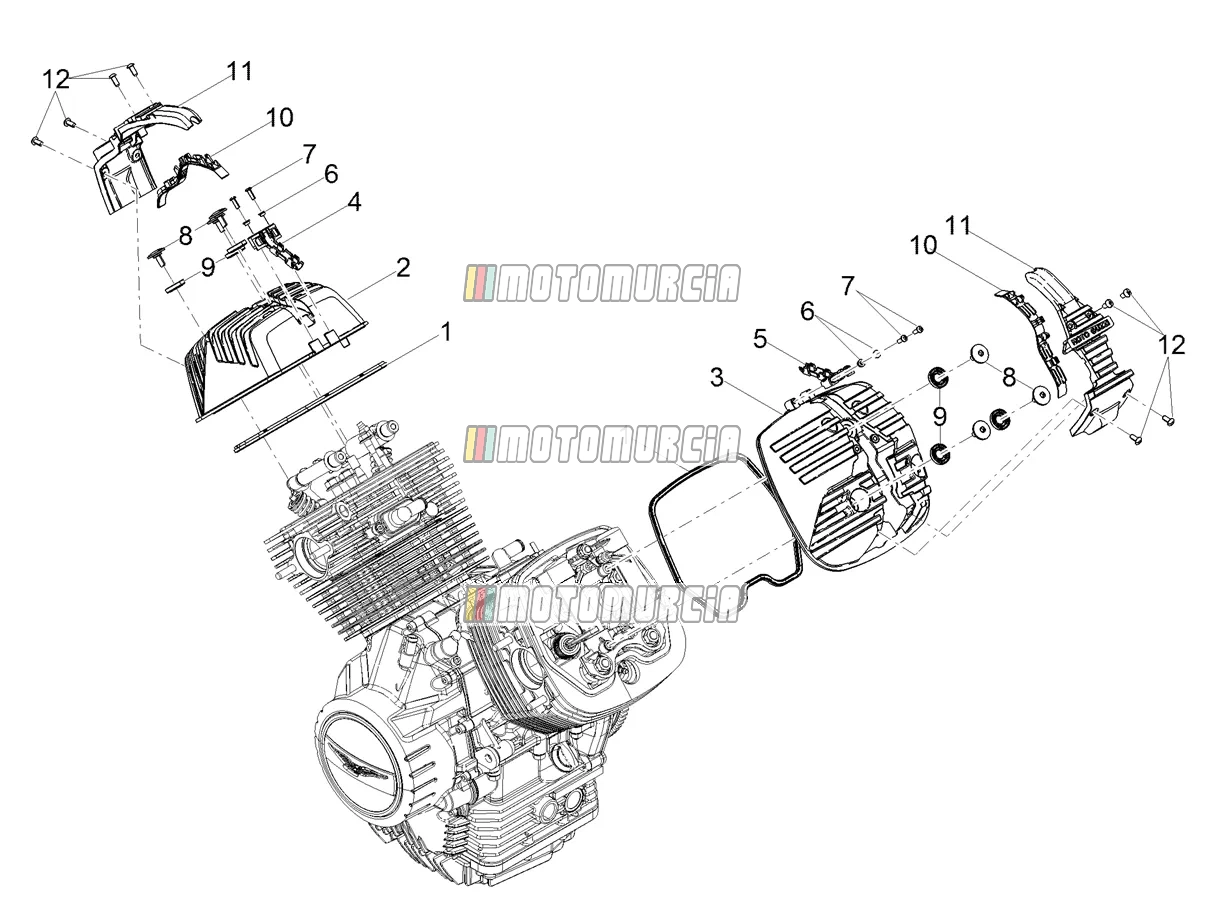

Exploded view — Head Cover

Products

1 Gasket - head cover Available 2A000565

•

  Valve Cover Gasket Piaggio Group · 2A000565 · Quantity needed: 2 Available

  € 12,95

  Add to cart

2 RH Head cover Backorder 1A013795

•

  Valve Cover right Piaggio Group · 1A013795 Backorder

  € 168,93

  Add to cart

3 LH Head cover Available 1A013793

•

  Valve Cover left Piaggio Group · 1A013793 Available

  € 168,93

  Add to cart

4 Spark plug cable retainer Available 2B006084

•

  Bracket for ignition cable, right Piaggio Group · 2B006084 Available

  € 5,74

  Add to cart

5 Spark plug cable retainer Available 2B006083

•

  Bracket for ignition cable, left Piaggio Group · 2B006083 Available

  € 5,74

  Add to cart

6 Spacer Available 2B003052

•

  Sleeve Piaggio Group · 2B003052 · Quantity needed: 4 Available

  € 3,82

  Add to cart

7 Screw Available 1A003444

•

  Screw Piaggio Group · 1A003444 · Quantity needed: 4 Available

  € 1,45

  Add to cart

8 Screw (spec) Available 976591

•

  Screw Piaggio Group · 976591 · Quantity needed: 6 Available

  € 8,83

  Add to cart

9 Gasket - head cover screw Available 1A006716

•

  Oil seal Piaggio Group · 1A006716 · Quantity needed: 6 Available

  € 4,78

  Add to cart

10 Fairlead Available 1A013822

•

  Cable Guide Piaggio Group · 1A013822 · Quantity needed: 2 Available

  € 5,53

  Add to cart

11 Spark plug cover Available 1A013796

•

  Cover Piaggio Group · 1A013796 · Quantity needed: 2 Available

  € 35,31

  Add to cart

12 Screw Available AP8152267

•

  Screw M5x12 Piaggio Group · AP8152267 · Quantity needed: 4 Available

  € 2,54

  Add to cart
