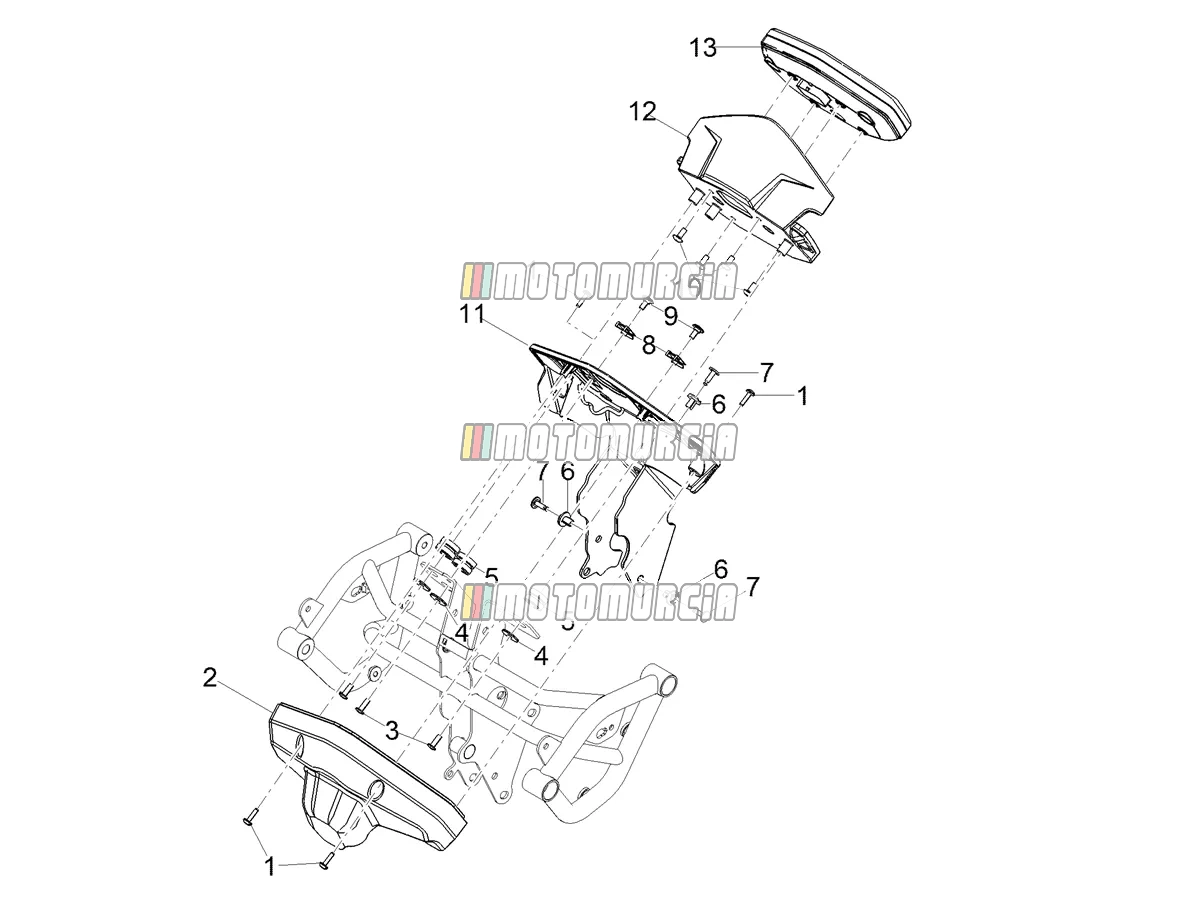

Exploded view — Instruments

Products

1 Self-tap screw 3,3x16 Available AP8150512

•

  Thread Screw 3,3x16 mm Piaggio Group · AP8150512 · Quantity needed: 4 Available

  € 0,99

  Add to cart

2 Dashboard lockup Available 2B005455

•

  Cover Piaggio Group · 2B005455 Available

  € 55,01

  Add to cart

3 Screw Available AP8150509

•

  Thread Screw Piaggio Group · AP8150509 · Quantity needed: 3 Available

  € 2,35

  Add to cart

4 Washer Available AP8150255

•

  Shim 5x20x1,5 mm Piaggio Group · AP8150255 · Quantity needed: 3 Available

  € 1,26

  Add to cart

5 Damper Available AP8220150

•

  Buffer Piaggio Group · AP8220150 · Quantity needed: 3 Available

  € 4,20

  Add to cart

6 Rivet, female Available AP8144616

•

  Sleeve Piaggio Group · AP8144616 · Quantity needed: 3 Available

  € 4,20

  Add to cart

7 Rivet, male Available AP8144563

•

  Rivet plastic Piaggio Group · AP8144563 · Quantity needed: 3 Available

  € 3,99

  Add to cart

8 Clip nuts (M5) Available AP8102375

•

  Sheet nut M5 Piaggio Group · AP8102375 · Quantity needed: 2 Available

  € 2,47

  Add to cart

9 Screw Available AP8150500

•

  Screw M5x9 Piaggio Group · AP8150500 · Quantity needed: 2 Available

  € 2,47

  Add to cart

10 Screw Available 896174

•

  Screw M5x12 Piaggio Group · 896174 · Quantity needed: 4 Available

  € 2,77

  Add to cart

11 Dashboard panel Available 2B005454

•

  Bracket Piaggio Group · 2B005454 Available

  € 85,80

  Add to cart

12 Dashboard lid Backorder 2B005452

•

  Fairing Piaggio Group · 2B005452 Backorder

  € 52,36

  Add to cart

13 Dashboard Available 2D000446

•

  Instrument Cluster Piaggio Group · 2D000446 Available

  € 406,96
