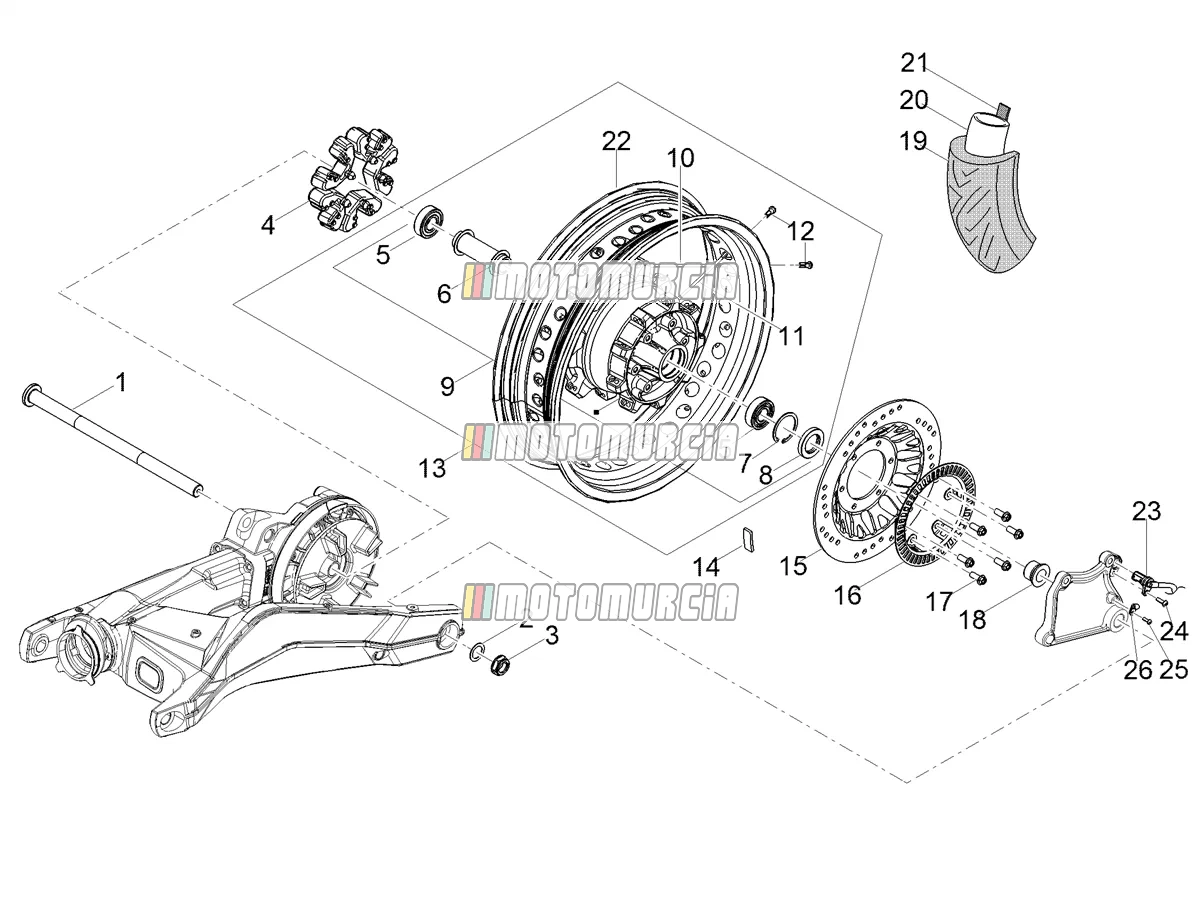

Exploded view — Rear Wheel

Products

1 Rear wheel spindle Rear Available 2B004693

•

  Wheel Axle rear Piaggio Group · 2B004693 Available · Shipped in 3–5 working days

  € 87,05

  Add to cart

2 Washer Available AP8125687

•

  Washer Piaggio Group · AP8125687 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

3 Nut Available AP8125763

•

  Standard nut Piaggio Group · AP8125763 Available · Shipped in 3–5 working days

  € 18,07

  Add to cart

4 Spring drive rubber Available B064290

•

  Buffer Piaggio Group · B064290 · Quantity needed: 5 Available · Shipped in 3–5 working days

  € 17,75

  Add to cart

5 Bearing Available GU92204220

• • From frame KD131645
  • Second series
  • See spare parts comm. no. 023 of 2000
  • Country: Austria
  • Country: Germany
  • Country: Switzerland


  Ball bearing Piaggio Group · GU92204220 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 10,51

  Add to cart

6 Rear wheel spacer set Backorder 2B001279

•

  Spacer Piaggio Group · 2B001279 Backorder · Shipped in 2–4 weeks

  € 50,32

  Add to cart

7 Seeger Available GU90272047

• • From frame KD131645
  • See spare parts comm. no. 023 of 2000
  • Year of manufacture: 1991
  • Country: Austria
  • Country: Germany
  • Country: Switzerland


  Circlip 47x50,5 mm Piaggio Group · GU90272047 Available · Shipped in 3–5 working days

  € 8,47

  Add to cart

8 Gasket ring 28X47X7 Available AP8110109

• • Municipal police
  • Strada version


  Shaft Seal Piaggio Group · AP8110109 Available · Shipped in 3–5 working days

  € 6,70

  Add to cart

9 Complete rear wheel hub Backorder 2B004431

•

  Hub rear Piaggio Group · 2B004431 Backorder · Shipped in 2–4 weeks

  € 528,55

  Add to cart

10 Spoke Available 2B004435

•

  Spoke length: 16,0cm Piaggio Group · 2B004435 · Quantity needed: 18 Available · Shipped in 3–5 working days

  € 14,91

  Add to cart

11 Spoke Available 2B004436

•

  Spoke length: 16,5cm Piaggio Group · 2B004436 · Quantity needed: 18 Available · Shipped in 3–5 working days

  € 14,91

  Add to cart

12 Nipples Available GU03631250

•

  Spoke Nipples Piaggio Group · GU03631250 · Quantity needed: 36 Available · Shipped in 3–5 working days

  € 5,55

  Add to cart

13 Rear wheel Backorder 2B0044385

• 2B0044385 Rear wheel


  No description available Piaggio Group · 2B004438 ↻ Replaces 2B0044385, which the manufacturer no longer supplies. Backorder · Shipped in 2–4 weeks

  € 719,19

  Add to cart

14 Counterweight Backorder GU14616150

• • Special Edition version
  • Standard version


  Balance Weight Piaggio Group · GU14616150 Backorder · Shipped in 2–4 weeks

  € 20,06

  Add to cart

15 Brake disc Available 887448

•

  Brake Disk rear Piaggio Group · 887448 Available · Shipped in 3–5 working days

  € 70,82

  Add to cart

16 Phonic wheel Available 2B004396R

•

  Hall sensor (phonic wheel) Piaggio Group · 2B004396R Available · Shipped in 3–5 working days

  € 29,79

  Add to cart

17 Brake disc fixing screw (M8x2) Available 2B002416

•

  Flanged Screw M8x20 Piaggio Group · 2B002416 · Quantity needed: 6 Available · Shipped in 3–5 working days

  € 5,09

  Add to cart

18 Rear wheel spacer Available 2B001956

•

  Sleeve Piaggio Group · 2B001956 Available · Shipped in 3–5 working days

  € 30,29

  Add to cart

19 Rear wheel 150/70 R 17 69V TL/TT Backorder 2B006066

• • V85 TT Evocative
  • V85 TT Special


  Tyres 150/70-17, 69V, TL/TT, rear Piaggio Group · 2B006066 Backorder · Shipped in 2–4 weeks

  € 515,00

  Add to cart
• • Guardia d'Onore
  • V85 TT


  Tyres 150/70-17, 69V, TL, rear Piaggio Group · 2B004442 Backorder · Shipped in 2–4 weeks

  € 532,22

  Add to cart

20 Inner tube MD 17 Backorder GU30630430

•

  Inner Tubes Inch: 17\" Piaggio Group · GU30630430 Backorder · Shipped in 2–4 weeks

  € 43,25

  Add to cart

21 Rear wheel flap Available 2B006086

•

  Wheel Trim Inch: 17\" Piaggio Group · 2B006086 Available · Shipped in 3–5 working days

  € 15,72

  Add to cart

22 Wheel rim Backorder 2B0044375

•

  Rim complete rear Piaggio Group · 2B0044375 Backorder · Shipped in 2–4 weeks

  € 415,20

  Add to cart

23 ABS front sensor Available 1D003747

• 1D003747 ABS front sensor


  ABS sensor Piaggio Group · 1D003747 Available · Shipped in 3–5 working days

  € 106,31

  Add to cart


  No description available Piaggio Group · 1D003747 Available · Shipped in 3–5 working days

  € 106,31

  Add to cart

24 Screw Available 1C001499

•

  Screw M5x16 Piaggio Group · 1C001499 Available · Shipped in 3–5 working days

  € 3,64

  Add to cart

25 Screw Available 621914

•

  Screw Piaggio Group · 621914 Available · Shipped in 3–5 working days

  € 2,77

  Add to cart

26 Fairlead Available 859777

• • Year of manufacture: 2010


  Clamp Piaggio Group · 859777 Available · Shipped in 3–5 working days

  € 8,86

  Add to cart
