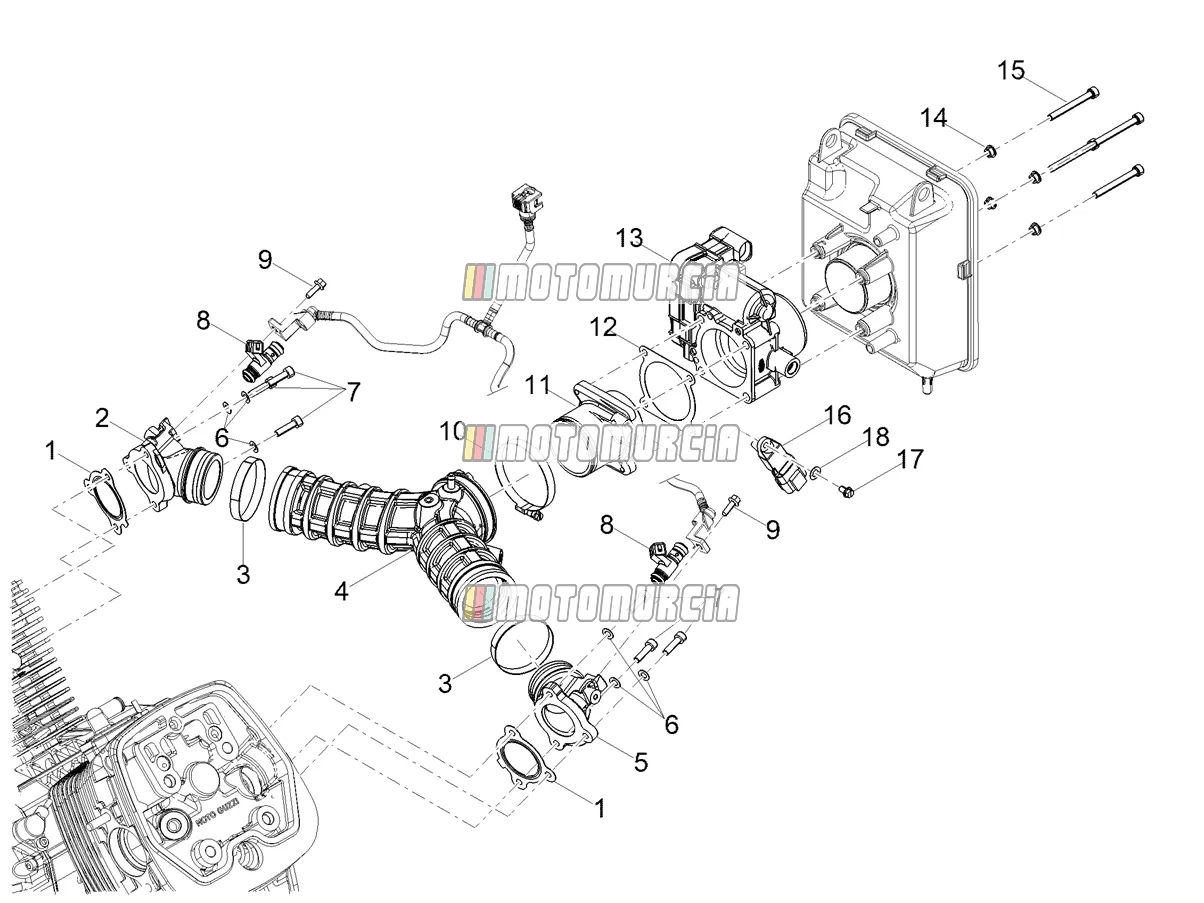

Exploded view — Throttle Body

‹ Back to model
Throttle Body

Products

1 Gasket Available 1A009167
  • Gasket Piaggio Group · 1A009167 · Quantity needed: 2 Available
    € 9,91
2 RH intake connector Backorder 1A009154
3 Clamp Available CM258302
  • Clamp Piaggio Group · CM258302 · Quantity needed: 2 Available
    € 4,26
4 Throttle body hose Backorder 1A014996
  • Intake Boot Piaggio Group · 1A014996 Backorder
    € 86,76
5 LH intake connector Backorder 1A009088
6 Washer Available GU03013800
  • Washer 6,4x12 mm Piaggio Group · GU03013800 · Quantity needed: 6 Available
    € 2,66
7 Screw Available GU98622322
  • Screw Piaggio Group · GU98622322 · Quantity needed: 6 Available
    € 1,29
8 Injector Available 1D001393
  • Injection jet Piaggio Group · 1D001393 · Quantity needed: 2 Available
    € 214,61
9 Screw Available 830061
10 Clamp Available AP8102401
11 Joint Backorder 1A008090
  • Nozzle Piaggio Group · 1A008090 Backorder
    € 18,25
12 Gasket Available 872264
  • Gasket Piaggio Group · 872264 Available
    € 7,76
13 Throttle body 872230 No longer available
  • 872230 Throttle body
    No longer available
14 T bushing Available 887282
  • Sleeve Piaggio Group · 887282 · Quantity needed: 4 Available
    € 5,76
15 Screw Available AP8150045
  • Screw M6x55 Piaggio Group · AP8150045 · Quantity needed: 4 Available
    € 5,13
16 Air temp. Sensor Available 887015
17 Screw w/ flange M6x16 Available 2B002418
18 Washer Available 658837
  • Washer Piaggio Group · 658837 Available
    € 2,99
