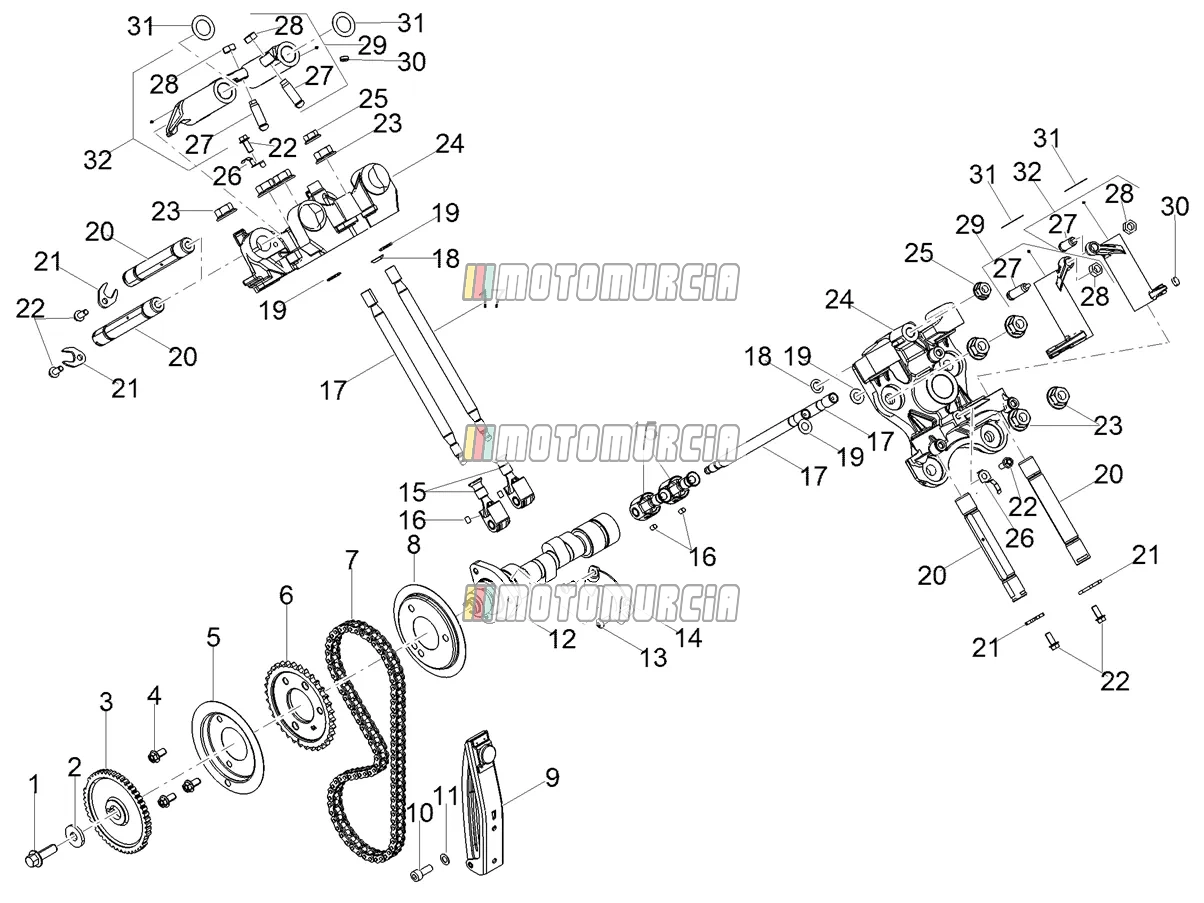

Exploded view — Timing System

Products

1 TEF M8x25 screw Backorder 1A014977

•

  Flanged Screw M8x25 Piaggio Group · 1A014977 Backorder

  € 4,44

  Add to cart

2 Washer Available 840569

•

  Washer Piaggio Group · 840569 Available

  € 2,63

  Add to cart

3 Phonic wheel Backorder 1A013570

•

  Gear Wheel Piaggio Group · 1A013570 Backorder

  € 34,17

  Add to cart

4 Screw Available 878872

•

  Flanged Screw Piaggio Group · 878872 · Quantity needed: 3 Available

  € 2,77

  Add to cart

5 Retaining plate Backorder 1A014673

•

  Disk Piaggio Group · 1A014673 Backorder

  € 2,71

  Add to cart

6 Timing system gear Available 1A006243

•

  Rear Sprocket Piaggio Group · 1A006243 Available

  € 89,66

  Add to cart

7 Timing chain Available GU19058021

•

  Timing chain Piaggio Group · GU19058021 Available

  € 217,07

  Add to cart

8 Plate Available 1A005955

•

  Cover Piaggio Group · 1A005955 Available

  € 2,94

  Add to cart

9 Compl. chain tensioner brake pad Available 1A0263195

•

  Chain Tensioner Piaggio Group · 1A0263195 Available

  € 94,94

  Add to cart

10 Screw Backorder GU98882316

•

  Screw Piaggio Group · GU98882316 Backorder

  € 1,21

  Add to cart

11 Washer Backorder GU95129115

•

  Washer Piaggio Group · GU95129115 Backorder

  € 1,32

  Add to cart

12 Camshaft Available 1A013734

•

  Camshaft Piaggio Group · 1A013734 Available

  € 315,94

  Add to cart

13 8 - Screw Available B014598

•

  Torx screw M5x12 Piaggio Group · B014598 · Quantity needed: 2 Available

  € 1,48

  Add to cart

14 Camshaft retaining plate Backorder 1A009346

•

  Mount Piaggio Group · 1A009346 Backorder

  € 13,43

  Add to cart

15 Roller tappet 1A010124 No longer available

• 1A010124 Roller tappet Quantity needed: 4
  No longer available

16 Roller Available B013552

•

  Ball Piaggio Group · B013552 · Quantity needed: 4 Available

  € 3,56

  Add to cart

17 Rocker arm rod Backorder 1A013652

•

  Rocker Arm Push Rod Piaggio Group · 1A013652 · Quantity needed: 4 Backorder

  € 20,07

  Add to cart

18 Gasket ring Available 1A006861

•

  Oil seal Piaggio Group · 1A006861 · Quantity needed: 2 Available

  € 3,91

  Add to cart

19 O-Ring Available 2A000579

•

  Oil seal 2,62x9,19 mm Piaggio Group · 2A000579 · Quantity needed: 4 Available

  € 1,97

  Add to cart

20 Rocker shaft Available 1A011963

•

  Rocker Arm Shaft Piaggio Group · 1A011963 · Quantity needed: 4 Available

  € 60,32

  Add to cart

21 Fork 1A015559 No longer available

• 1A015559 Fork Quantity needed: 4
  No longer available

22 Screw Available AP8152272

•

  Flanged Screw M5x12 Piaggio Group · AP8152272 · Quantity needed: 6 Available

  € 2,18

  Add to cart

23 Nut Available 833520

•

  Standard nut Piaggio Group · 833520 · Quantity needed: 8 Available

  € 0,99

  Add to cart

24 Rocker arm support Backorder 1A013883

•

  Mount Piaggio Group · 1A013883 · Quantity needed: 2 Backorder

  € 65,55

  Add to cart

25 Nut (Flanged) Available 1A006659

•

  Standard nut M8x1.25 Piaggio Group · 1A006659 · Quantity needed: 2 Available

  € 4,85

  Add to cart

26 Plate Available 2A000527

•

  Bracket Piaggio Group · 2A000527 · Quantity needed: 2 Available

  € 12,79

  Add to cart

27 Adjuster screw Available 1A004907

•

  Screw Piaggio Group · 1A004907 · Quantity needed: 4 Available

  € 6,86

  Add to cart

28 Nut Backorder GU10034100

•

  Standard nut Piaggio Group · GU10034100 · Quantity needed: 4 Backorder

  € 14,07

  Add to cart

29 Left exhaust right intake rocker 1A004905 No longer available

• 1A004905 Left exhaust right intake rocker
  No longer available

30 Valve terminal 1A011723 No longer available

• 1A011723 Valve terminal Quantity needed: 2
  No longer available

31 Curved spring washer Available 1A005951

•

  Snap Ring Piaggio Group · 1A005951 · Quantity needed: 4 Available

  € 0,99

  Add to cart

32 Right exhaust left intake rocker 1A004903 No longer available

• 1A004903 Right exhaust left intake rocker Quantity needed: 2
  No longer available
