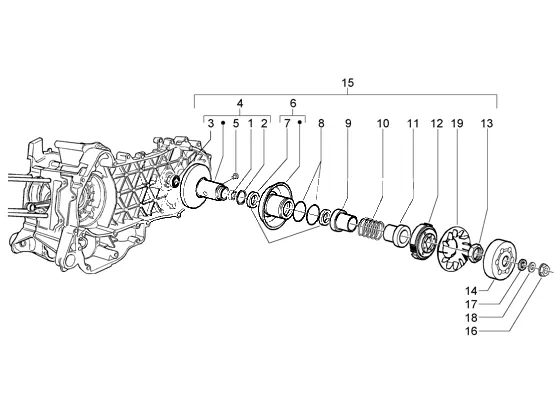

Exploded view — Driven Pulley

‹ Back to model
Piaggio X9 125 Evolution 1998–2005 Piaggio X9 125 Evolution 1998–2005
Driven Pulley

Products

1 Needle bearing Available 82518R
2 Gasket ring Available 483226
  • Snap-in Ring Piaggio Group · 483226 Available
    € 2,18
3 Bearing Available 82753R
4 Fixed driven half pulley Available 830580
  • Pulley halves Piaggio Group · 830580 Available
    € 106,17
5 Guide pin L=11,1 479415 No longer available
  • 479415 Guide pin L=11,1 Quantity needed: 4
    No longer available
6 Sec. sliding sheave, complete 878649 No longer available
  • 878649 Sec. sliding sheave, complete
    No longer available
7 Oil seal Available 431089
  • Oil seal Piaggio Group · 431089 · Quantity needed: 2 Available
    € 9,66
8 O-Ring Available 430585
  • Oil seal Piaggio Group · 430585 · Quantity needed: 2 Available
    € 1,32
9 Cup Available 4310935
  • Spring Mount Piaggio Group · 4310935 Available
    € 36,24
10 Spring Available 872877
11 Clutch side cap Available 487936
  • Spring Mount Piaggio Group · 487936 Available
    € 9,79
12 Clutch Available CM161202
  • Clutch Shoes Piaggio Group · CM161202 Available
    € 94,95
13 Clutch nut Available 433232
  • Standard nut Piaggio Group · 433232 Available
    € 14,90
14 Clutch bell Available 8440494
  • Clutch Case Piaggio Group · 8440494 Available
    € 79,10
15 Clutch driven pulley assy. Available CM162403
  • Pulley rear Piaggio Group · CM162403 Available
    € 276,90
16 Nut Available 486324
17 Spacer 827877 No longer available
  • 827877 Spacer
    No longer available
18 Washer (22x12,1x19) Available 274246
