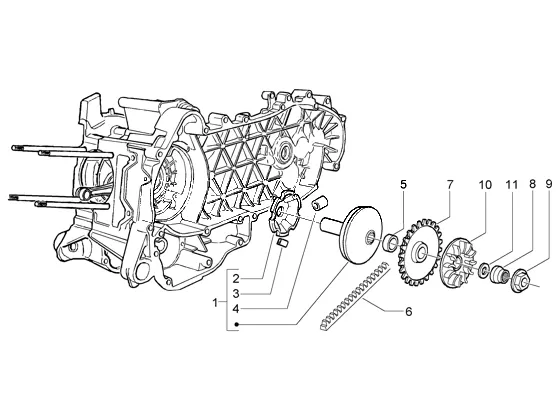

Exploded view — Driving Pulley

‹ Back to model

Piaggio X9 125 Evolution 1998–2005

Piaggio X9 125 Evolution 1998–2005

Driving Pulley

Products

1 Variator Available CM144403

Variator with 6 rollers Piaggio Group · CM144403 Available

€ 103,14

2 Roller housing back plate Available 485710

Calotte Piaggio Group · 485710 Available

€ 15,22

3 Variator slider Available 4348555

Slide Piaggio Group · 4348555 · Quantity needed: 3 Available

€ 2,52

4 Roller weights (7,3 g) Available CM1038045

Variator weights 19x17 mm, 7,4 g, Content: 6 Stk Piaggio Group · CM1038045 Available

€ 18,68

5 O-Ring Available 832508

Oil seal Piaggio Group · 832508 Available

€ 2,23

6 V-Belt Available 841213

V-Belt, Mitsuboshi Piaggio Group · 841213 Available

€ 66,65

7 V-Belt Pulley Available 845607

Pulley halves Piaggio Group · 845607 Available

€ 53,86

8 Teethed bush Available 827386

Star disk 34,58x17,1x4 mm Piaggio Group · 827386 Available

€ 17,81

9 Flanged nut M12 Available B015804

Standard nut Piaggio Group · B015804 Available

€ 8,00

10 Fan Available 482305

Flywheel/ Stator Piaggio Group · 482305 Available

€ 8,70

11 Plain washer Available 433391

Shim Piaggio Group · 433391 Available

€ 4,96
