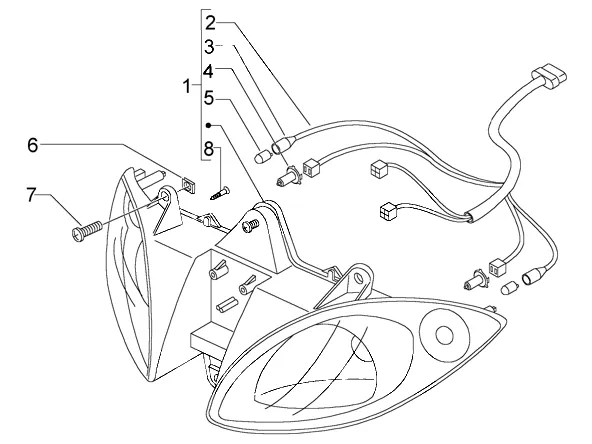

Exploded view — Front Lights

Products

1 Headlight Backorder 584413

•

  Head Lights Piaggio Group · 584413 Backorder

  € 181,50

  Add to cart
• 584404 Headlight
  No longer available

2 Cable harn. 582136 No longer available

• 582136 Cable harn.
  No longer available

3 Lampholder Available 253327

•

  Light Bracket Piaggio Group · 253327 · Quantity needed: 2 Available

  € 7,31

  Add to cart

4 Bulb (H7 55W 12V) Available 294353

•

  Bulbs Halogen, H7, 12 V, 55 W Piaggio Group · 294353 · Quantity needed: 2 Available

  € 37,12

  Add to cart

5 Bulb (12V 3W) Available 294131

•

  Bulbs Bulb, 12 V, 3 W Piaggio Group · 294131 · Quantity needed: 2 Available

  € 2,88

  Add to cart

6 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 · Quantity needed: 3 Available

  € 2,04

  Add to cart

7 Screw (M6x16) Available 575249

•

  Screw M6 Piaggio Group · 575249 · Quantity needed: 3 Available

  € 0,99

  Add to cart

8 Screw Available 015727

•

  Sheet Metal Screw Piaggio Group · 015727 · Quantity needed: 6 Available

  € 0,99

  Add to cart
