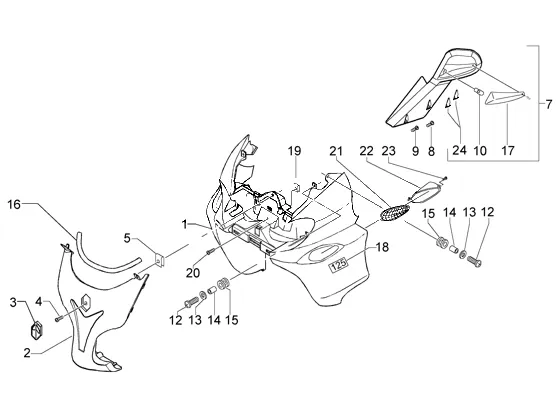

Exploded view — Shield

Products

1 Front fairing 5755615090 No longer available

• 5755615090 Front fairing
  No longer available
• 57556100D9 Shield
  No longer available
•

  Front Shield, silver, Suffix: EB_grey smokey 731/A Piaggio Group · 57556100EB Available

  € 371,62

  Add to cart

2 Frame 62043100EB No longer available

• 62043100EB Frame
  No longer available
•

  Cascade, black, Suffix: 90_black shiny 094 Piaggio Group · 6204310090 Available

  € 171,83

  Add to cart
• 62043100D9 Frame
  No longer available

3 Emblem - Decal (Piaggio - clip on) Available 295486

•

  Emblem, motive: Piaggio, blue, silver, Ø 32,50 mm, for plugging in Piaggio Group · 295486 Available

  € 4,38

  Add to cart

4 Screw (4,2x19) Available 258249

•

  Sheet Metal Screw Piaggio Group · 258249 · Quantity needed: 5 Available

  € 0,99

  Add to cart

5 Clip nuts Available CM017410

•

  Sheet nut Piaggio Group · CM017410 · Quantity needed: 5 Available

  € 0,99

  Add to cart

7 Mirror right CM07370200RE No longer available

• CM07370200RE Mirror right
  No longer available
•

  Mirror left Piaggio Group · CM02590300ND Available

  € 435,16

  Add to cart
• CM02590100D9 Mirror left
  No longer available
• CM0259010090 Mirror left
  No longer available
• CM0259020090 Mirror right
  No longer available
• CM02590200EB Mirror right
  No longer available
• CM02590200D9 Mirror right
  No longer available
• CM07370100RE Mirror left
  No longer available

9 Screw Available 272836

•

  Screw M6x16 Piaggio Group · 272836 · Quantity needed: 2 Available

  € 1,39

  Add to cart

10 Bulb (12V 10W BAU15S) Available 584332

•

  Bulbs Bulb, 12 V, 10 W, orange Piaggio Group · 584332 · Quantity needed: 2 Available

  € 4,79

  Add to cart

11 Gasket CM018601 No longer available

• CM018601 Gasket
  No longer available
• CM018602 Gasket
  No longer available

12 Screw Available 271891

•

  Screw M6x30 Piaggio Group · 271891 · Quantity needed: 2 Available

  € 1,59

  Add to cart

13 Washer d6,2x20x1 Available 013092

•

  Washer 6,2x20x1 mm Piaggio Group · 013092 · Quantity needed: 4 Available

  € 1,26

  Add to cart

14 Spacer Available 273288

•

  Spacer Piaggio Group · 273288 · Quantity needed: 4 Available

  € 2,18

  Add to cart

15 Cylindrical cable grommet Available 576565

•

  Cable Guide Piaggio Group · 576565 · Quantity needed: 6 Available

  € 1,32

  Add to cart

16 Windshield weather strip CM006001 No longer available

• CM006001 Windshield weather strip
  No longer available

17 Turn indicator lens Available 638713

•

  Indicator Glass front, left Piaggio Group · 638713 Available

  € 33,88

  Add to cart
• 638714 Turn indicator lens
  No longer available

18 Name plate 620831 No longer available

• 620831 Name plate Quantity needed: 2
  No longer available

19 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 Available

  € 2,04

  Add to cart

20 Screw (M6x16) Available 575249

•

  Screw M6 Piaggio Group · 575249 Available

  € 0,99

  Add to cart

21 Grid 620434 No longer available

• 620434 Grid
  No longer available
•

  Cover, left Piaggio Group · 620662 Available

  € 11,45

  Add to cart

22 Air intake Available 620661

•

  Air Intake, left Piaggio Group · 620661 Available

  € 5,93

  Add to cart
•

  Air Intake, right Piaggio Group · 620433 Available

  € 6,05

  Add to cart

23 Screw Available 297498

•

  Sheet Metal Screw Piaggio Group · 297498 · Quantity needed: 4 Available

  € 0,99

  Add to cart

24 Driving mirror plugs unit Available 600328

•

  Lock, right Piaggio Group · 600328 Available

  € 6,97

  Add to cart
• 600329 Driving mirror plugs unit
  No longer available
