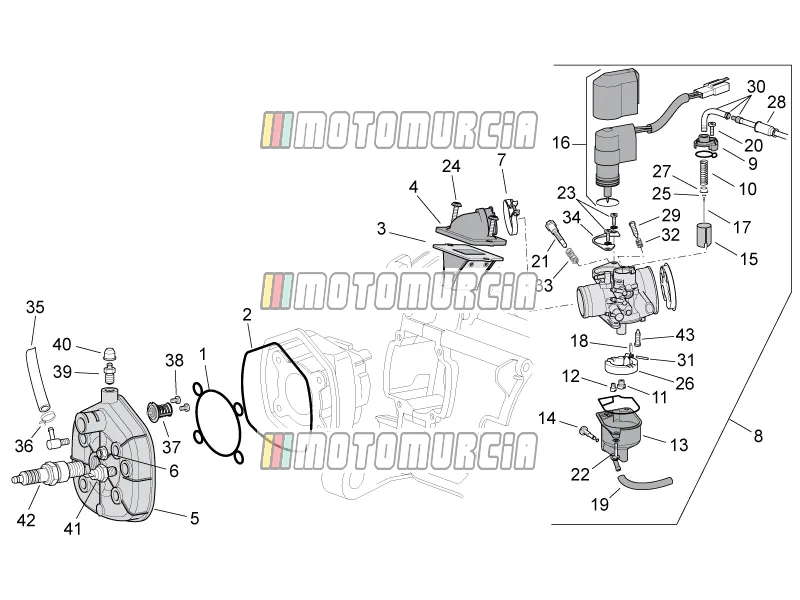

Big End - Carburettor

Products

1 Cylinder head gasket Available 288289
  • Cylinder Head Gasket Piaggio Group · 288289 Available · Shipped in 3–5 working days
    € 6,80

    Alternatives from other brands

    Cylinder Head Gasket Centauro · 880B03006 Backorder · Shipped in 2–5 weeks
    € 7,88
2 Cylinder head gasket Available 482988
  • Cylinder Head Gasket Piaggio Group · 482988 Available · Shipped in 3–5 working days
    € 4,34

    Alternatives from other brands

    Cylinder Head Gasket Centauro · W240070JA Backorder · Shipped in 2–5 weeks
    € 2,21
3 Reed valve Available 82775R
    • Injection version (C361M)
    Reed valve Piaggio Group · 82775R Available · Shipped in 3–5 working days
    € 47,24
4 Intake Manifold Available 1A008824
  • Intake manifold Piaggio Group · 1A008824 Available · Shipped in 3–5 working days
    € 15,10
5 Cylinder head Available 8264906
6 Nut Available 288245
    • Taiwan version
    Collar nut M6 Piaggio Group · 288245 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 0,99
7 Clamp Available 825865
  • Clamp Piaggio Group · 825865 Available · Shipped in 3–5 working days
    € 2,47
8 Carburettor Backorder B0157545
  • B0157545 Carburettor
    Carburettor Piaggio Group · B0157546 ↻ Replaces B0157545, which the manufacturer no longer supplies. Backorder · Shipped in 2–4 weeks
    € 199,23
    • Carburettor version (C364M)
    • Country: Europe
    Carburettor PHVA 17,5 ID Piaggio Group · 833708 Available · Shipped in 3–5 working days
    € 273,99
9 Gas valve cover Available 431654
    • Carburettor version (C364M)
    Lid, Dell Orto Piaggio Group · 431654 Available · Shipped in 3–5 working days
    € 5,51
10 Valve gas return spring Available 482942
    • Carburettor version (C364M)
    • Year of manufacture: 2009
    Spring Piaggio Group · 482942 Available · Shipped in 3–5 working days
    € 1,69
11 Main jet (60 - M6) Available CM101711
    • CH version, free speed
    • Carburettor version (C364M)
    • Switzerland version E3
    • Year of manufacture: 2009
    • Year of manufacture: 2010
    • Country: Japan
    • Country: Switzerland
    Main jet Size: 60 Piaggio Group · CM101711 Available · Shipped in 3–5 working days
    € 6,33
    • Carburettor version (C364M)
    • Limited version 45 km/h
    • Standard version
    • Country: Europe
    Main jet Size: 53 Piaggio Group · CM101704 Available · Shipped in 3–5 working days
    € 12,15
12 Idle jet (32) Available CM102103
    • Carburettor version (C364M)
    • Country: Europe
    • Country: Europe
    Idle Jet Piaggio Group · CM102103 Available · Shipped in 3–5 working days
    € 4,34
13 Fuel chamber Available 484704
    • Carburettor version (C364M)
    • Country: Austria
    • Country: Denmark
    • Country: Spain
    Float Chamber Dell Orto Piaggio Group · 484704 Available · Shipped in 3–5 working days
    € 26,45
14 Screw Available 432456
    • Carburettor version (C364M)
    Screw Piaggio Group · 432456 Available · Shipped in 3–5 working days
    € 8,91
15 Gas valve (40 - not 17.5) Available CM141711
    • CH version, free speed
    • Carburettor version (C364M)
    • Switzerland version E3
    • Year of manufacture: 2009
    • Year of manufacture: 2010
    • Country: Switzerland
    Throttle Slide Piaggio Group · CM141711 Available · Shipped in 3–5 working days
    € 9,10
  • Throttle Slide Piaggio Group · CM141710 Available · Shipped in 3–5 working days
    € 9,15
16 Starter plunger Available CM105905
    • Carburettor version (C364M)
    Choke elektrisch, Dell Orto Piaggio Group · CM105905 Available · Shipped in 3–5 working days
    € 174,53
17 Conical pin Available CM107510
    • Country: Europe
    Metering Needle Piaggio Group · CM107510 Available · Shipped in 3–5 working days
    € 18,97
    • Year of manufacture: 2009
    • Year of manufacture: 2010
    • Country: Switzerland
    Metering Needle A13 Piaggio Group · AP8276033 Available · Shipped in 3–5 working days
    € 19,60
18 Fuel closing needle Available CM128501
    • Carburettor version (C364M)
    • From chassis 9H433718
    • Limited version 45 km/h
    Float Needle Piaggio Group · CM128501 Available · Shipped in 3–5 working days
    € 13,94
19 Fuel hose Available CM112001
  • Hose length: 13,0cm Piaggio Group · CM112001 Available · Shipped in 3–5 working days
    € 7,74
20 Screw Available 288865
    • Carburettor version (C364M)
    • Year of manufacture: 2009
    Screw Piaggio Group · 288865 Available · Shipped in 3–5 working days
    € 1,40
21 Gas valve adj.screw Available 828074
    • Carburettor version (C364M)
    • Year of manufacture: 2009
    • Country: Austria
    • Country: Denmark
    • Country: Spain
    Adjusting Screw Piaggio Group · 828074 Available · Shipped in 3–5 working days
    € 11,82
22 Screw Available 288862
    • Carburettor version (C364M)
    • Year of manufacture: 2009
    Screw Piaggio Group · 288862 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 3,36
23 Screw Available 289575
    • Carburettor version (C364M)
    • Year of manufacture: 2009
    Screw Piaggio Group · 289575 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 2,41
24 Screw (M6x22) Available 1A000352
    • Country: Taiwan
    Screw M6x22 Piaggio Group · 1A000352 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 3,71
25 Seeger Available 288872
    • Carburettor version (C364M)
    • Year of manufacture: 2009
    Tapered Needle Clip Dell Orto Piaggio Group · 288872 Available · Shipped in 3–5 working days
    € 1,59
26 Float Available 482916
    • Carburettor version (C364M)
    • Year of manufacture: 2009
    Float Dell Orto Piaggio Group · 482916 Available · Shipped in 3–5 working days
    € 19,48
27 Conical pin clip Available 288873
    • Carburettor version (C364M)
    • Year of manufacture: 2009
    Tapered Needle Clip Dell Orto Piaggio Group · 288873 Available · Shipped in 3–5 working days
    € 2,59
28 Throttle cable cap Available 875551
  • Bonnet Piaggio Group · 875551 Available · Shipped in 3–5 working days
    € 8,74
29 Air adjuster screw Available CM107701
    • Carburettor version (C364M)
    • Limited version 45 km/h
    • Year of manufacture: 2009
    Adjusting Screw Piaggio Group · CM107701 Available · Shipped in 3–5 working days
    € 7,82
30 Baffle tube Available 113903
    • Carburettor version (C364M)
    Guide tube Piaggio Group · 113903 Available · Shipped in 3–5 working days
    € 6,92
31 Float pin Available 288881
    • Carburettor version (C364M)
    • Year of manufacture: 2009
    Pin Piaggio Group · 288881 Available · Shipped in 3–5 working days
    € 2,06
32 Spring Available 085285
    • Carburettor version (C364M)
    Spring Piaggio Group · 085285 Available · Shipped in 3–5 working days
    € 1,37
33 Spring Available 152608
    • Carburettor version (C364M)
    Spring Piaggio Group · 152608 Available · Shipped in 3–5 working days
    € 1,40
34 Plate Available 288863
    • Carburettor version (C364M)
    • Year of manufacture: 2009
    Bracket Piaggio Group · 288863 Available · Shipped in 3–5 working days
    € 2,77
35 Head-carb.by-pass pipe Backorder 484260
    • Carburettor version (C364M)
    Hose Piaggio Group · 484260 Backorder · Shipped in 2–4 weeks
    € 13,24
36 Clamp Available CM002901
    • Carburettor version (C364M)
    • Injection version (C361M)
    • Year of manufacture: 2012
    • Year of manufacture: 2013
    • Country: Canada
    • Country: United States of America
    Clamping Spring Piaggio Group · CM002901 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 0,99
37 Thermostat Available 483395
    • Carburettor version (C364M)
    • Injection version (C361M)
    Thermostat Piaggio Group · 483395 Available · Shipped in 3–5 working days
    € 50,92
38 Screw Available 256756
    • Carburettor version (C364M)
    • Injection version (C361M)
    Thread Screw Piaggio Group · 256756 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 1,39
39 Bleed screw Available 430045
    • Carburettor version (C364M)
    • Injection version (C361M)
    Bleeder Screw Piaggio Group · 430045 Available · Shipped in 3–5 working days
    € 2,25
40 Bleed valve cap Available 063435
    • Carburettor version (C364M)
    • Injection version (C361M)
    Covering Cap Piaggio Group · 063435 Available · Shipped in 3–5 working days
    € 2,96
41 Water temperature switch Available 58241R
42 Spark plug Available AP8206915
    • Year of manufacture: 2002
    • Year of manufacture: 2003
    • Country: Switzerland
    Spark Plugs BR9ES Piaggio Group · AP8206915 Available · Shipped in 3–5 working days
    € 6,29
    • Carburettor version (C364M)
    • Switzerland version E3
    • Country: Europe
    Spark Plugs RN1C Piaggio Group · 438031 Available · Shipped in 3–5 working days
    € 6,65
43 Needle valve CM106229 No longer available
  • CM106229 Needle valve
    • CH version, free speed
    • Carburettor version (C364M)
    • Year of manufacture: 2009
    No longer available
