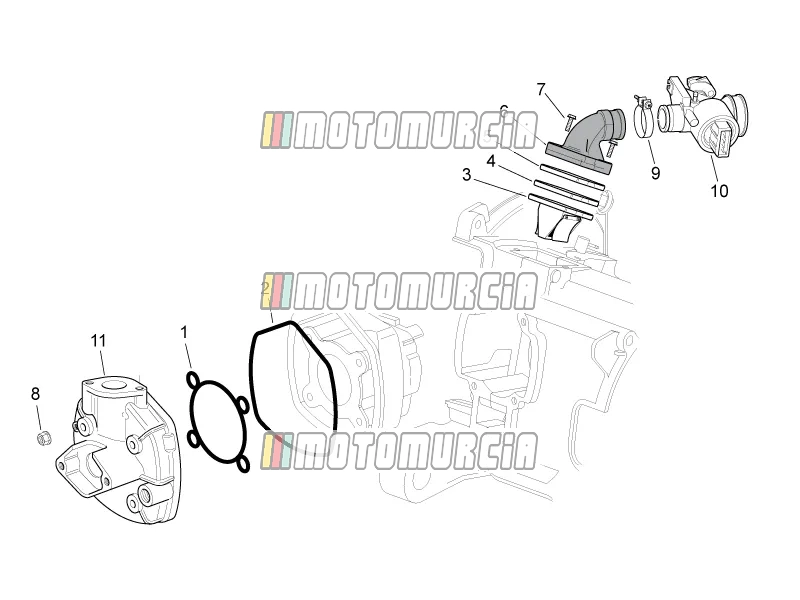

Exploded view Big End - Throttle Body — Aprilia SR 50 R 2017

Products

1 Cylinder head gasket Available 288289

•

  Cylinder Head Gasket Piaggio Group · 288289 Available · Shipped in 3–5 working days

  € 6,80

  Add to cart

  Alternatives from other brands



  Cylinder Head Gasket Centauro · 880B03006 Backorder · Shipped in 2–5 weeks

  € 7,88

  Add to cart

2 Cylinder head gasket Available 482988

•

  Cylinder Head Gasket Piaggio Group · 482988 Available · Shipped in 3–5 working days

  € 4,34

  Add to cart

  Alternatives from other brands



  Cylinder Head Gasket Centauro · W240070JA Backorder · Shipped in 2–5 weeks

  € 2,21

  Add to cart

3 Reed valve Available 82775R

• • Injection version (C361M)


  Reed valve Piaggio Group · 82775R Available · Shipped in 3–5 working days

  € 47,24

  Add to cart

4 Plate Available 842626

• • Injection version (C361M)


  Plate Piaggio Group · 842626 Available · Shipped in 3–5 working days

  € 4,42

  Add to cart

5 Intake manifold Gasket Available 433361

• • Injection version (C361M)


  Intake Manifold Gasket Piaggio Group · 433361 Available · Shipped in 3–5 working days

  € 1,88

  Add to cart

6 Intake Manifold Available 8297034

•

  Intake manifold Piaggio Group · 8297034 Available · Shipped in 3–5 working days

  € 42,13

  Add to cart

7 Screw (M6x22) Available 1A000352

• • Country: Taiwan


  Screw M6x22 Piaggio Group · 1A000352 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 3,71

  Add to cart

8 Nut Available 288245

• • Taiwan version


  Collar nut M6 Piaggio Group · 288245 · Quantity needed: 4 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

9 Clamp Available 825865

•

  Clamp Piaggio Group · 825865 Available · Shipped in 3–5 working days

  € 2,47

  Add to cart

10 Throttle body Available 830096

• • Injection version (C361M)


  Throttle body Piaggio Group · 830096 Available · Shipped in 3–5 working days

  € 199,25

  Add to cart

11 Cylinder head 8302025 No longer available

• 8302025 Cylinder head
  No longer available
