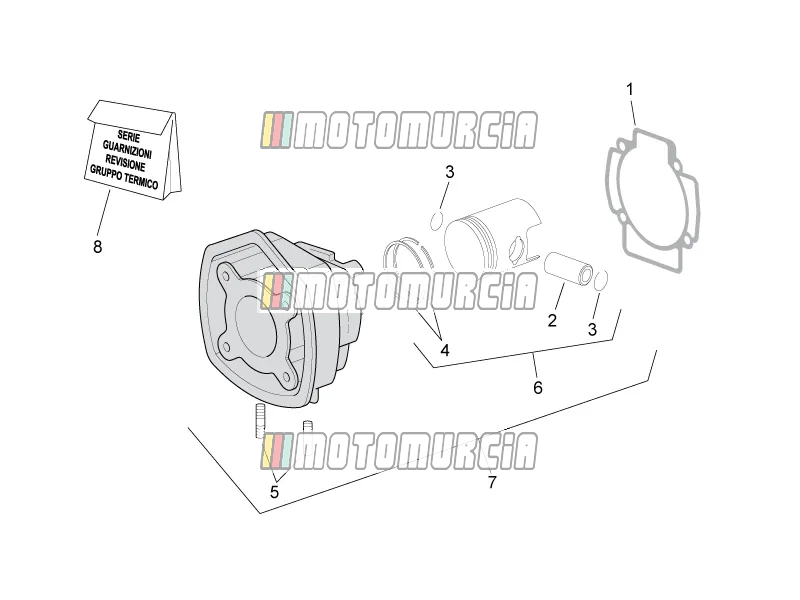

Exploded view — Cylinder With Piston

Products

1 Gasket - cylinder base (0,4 mm) Available 827301

•

  Cylinder Base Gasket thickness: 0,40 mm Piaggio Group · 827301 Available

  € 12,37

  Add to cart
•

  Cylinder Base Gasket thickness: 0,80 mm Piaggio Group · 829633 Available

  € 13,71

  Add to cart
•

  Cylinder Base Gasket thickness: 0,50 mm Piaggio Group · 827303 Available

  € 12,75

  Add to cart

2 Piston pin Available 239404

•

  Piston Pin Ø 12,00 mm Piaggio Group · 239404 Available

  € 5,38

  Add to cart

3 Snap ring - piston pin Available 239455

•

  Piston Clip Piaggio Group · 239455 · Quantity needed: 2 Available

  € 0,99

  Add to cart

4 Gasket ring 40mm (D=40,00 mm, 50 ccm) Available 825416

•

  Piston Ring Ø 40,00 mm, thickness: 1,40 mm Piaggio Group · 825416 · Quantity needed: 2 Available

  € 6,72

  Add to cart
•

  Piston Ring 1. oversize Ø 40,20 mm Piaggio Group · 827853 · Quantity needed: 2 Available

  € 18,74

  Add to cart
•

  Piston Ring 2. oversize Ø 40,40 mm Piaggio Group · 827854 · Quantity needed: 2 Available

  € 34,19

  Add to cart

5 Stud bolt (M6) Available 239397

•

  Stud Screw M6x33 Piaggio Group · 239397 · Quantity needed: 2 Available

  € 0,99

  Add to cart

6 Piston assy 3cat.(O) Available 4878020003

•

  Piston Cat. O Piaggio Group · 4878020003 Available

  € 70,45

  Add to cart
•

  Piston Cat. N Piaggio Group · 4878020002 Available

  € 70,45

  Add to cart
•

  Piston Cat. P Piaggio Group · 4878020004 Available

  € 70,45

  Add to cart
• 825185 Piston kit (40,00 mm, 50ccm)
  No longer available
•

  Piston Cat. M Piaggio Group · 4878020001 Available

  € 70,45

  Add to cart

7 Cylinder kit Available 833598

•

  Cylinder Piaggio Group · 833598 Available

  € 244,01

  Add to cart

8 Gasket set - cylinder Available 4975906

•

  Gasket set - cylinder Piaggio Group · 4975906 Available

  € 20,98

  Add to cart
•

  Gasket set for engine for thermal unit Piaggio Group · 498470 Available

  € 45,64

  Add to cart
