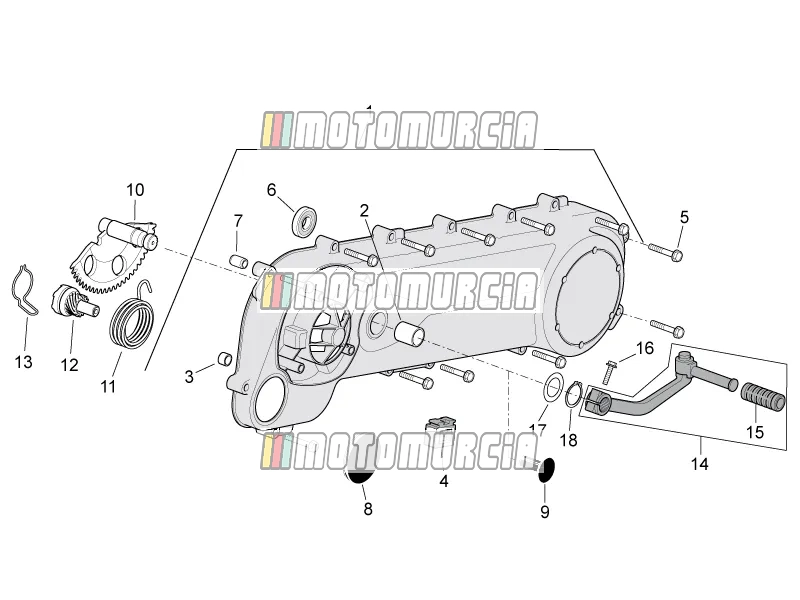

Exploded view — Transmission Cover

Products

1 Transmission cover Available 8284535

•

  Housing cover Piaggio Group · 8284535 Available

  € 270,64

  Add to cart
•

  Housing cover Piaggio Group · 8298225 Available

  € 247,28

  Add to cart

2 Bush Available 286209

•

  Bronze Bushes Piaggio Group · 286209 Available

  € 2,93

  Add to cart

3 Bush Ø8xØ12x8 Available 431860

•

  Bronze Bushes 8x12x8 Piaggio Group · 431860 Available

  € 1,65

  Add to cart

4 Stand end stop Available 463872

•

  Rubber stop Piaggio Group · 463872 Available

  € 3,18

  Add to cart

5 Screw Available 414838

•

  Screw M6x35 Piaggio Group · 414838 · Quantity needed: 12 Available

  € 1,48

  Add to cart

6 Bearing Available 82521R

•

  Ball bearing 638 Z, 8x28x9 mm Piaggio Group · 82521R Available

  € 23,82

  Add to cart

7 Dowel pin Available B015956

•

  Adapter Sleeve 9,5x15 Piaggio Group · B015956 · Quantity needed: 2 Available

  € 1,32

  Add to cart

8 Cover Available 483859

•

  Lid Piaggio Group · 483859 Available

  € 2,49

  Add to cart

9 Cover Available 829820

•

  Lock Piaggio Group · 829820 Available

  € 4,40

  Add to cart

10 Kick starter shaft Available 831458

•

  Kickstarter segment Piaggio Group · 831458 Available

  € 33,58

  Add to cart

11 Starter lever return spring Available 289495

•

  Kickstarter spring Piaggio Group · 289495 Available

  € 9,57

  Add to cart

12 Kickstart pinion Available 483537

•

  Kickstarter pinion Piaggio Group · 483537 Available

  € 31,06

  Add to cart

13 Elastic spring Available 288673

•

  Clamp Piaggio Group · 288673 Available

  € 2,47

  Add to cart

14 Kick starter lever Available 286214

•

  Kickstarter lever Piaggio Group · 286214 Available

  € 40,24

  Add to cart

15 Guard Available 286217

•

  Pedal Rubber Piaggio Group · 286217 Available

  € 32,20

  Add to cart

16 Screw Available B016774

•

  Hexagon Screw M6x25 Piaggio Group · B016774 Available

  € 1,48

  Add to cart

17 Washer Available 433987

•

  Shim 16,3x23,8 mm Piaggio Group · 433987 Available

  € 0,99

  Add to cart

18 Seeger Available 006416

•

  Locking Ring Piaggio Group · 006416 Available

  € 1,65

  Add to cart
