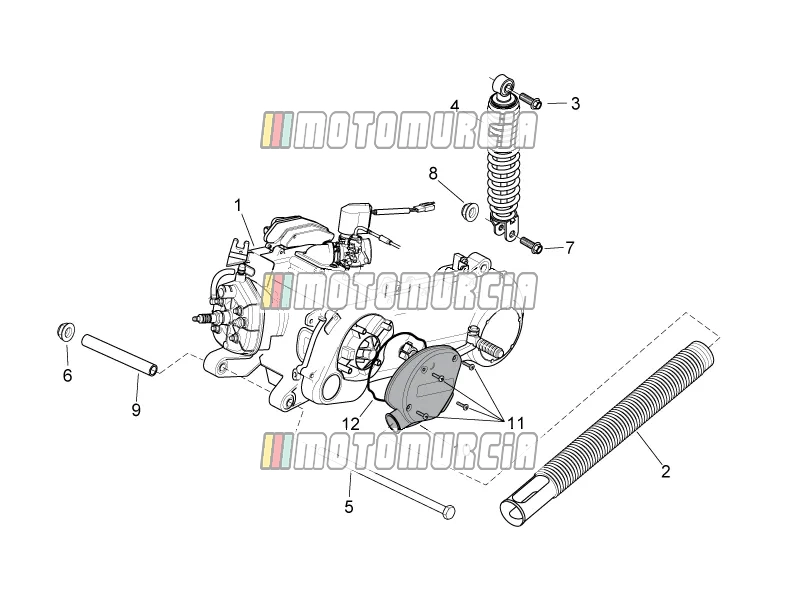

Exploded view — Engine Ii

Products

1 Carb. Engine CM1439035 No longer available

• CM1439035 Carb. Engine
  No longer available

2 Variator air intake Available AP8220704

•

  Air Pipe Piaggio Group · AP8220704 Available

  € 31,99

  Add to cart

3 Screw Available AP8152318

•

  Flanged Screw M10x35 Piaggio Group · AP8152318 Available

  € 3,93

  Add to cart

4 Rear shock absorber Available 668009

•

  Shocks rear Piaggio Group · 668009 Available

  € 171,34

  Add to cart

5 Screw Available AP8150412

•

  Hexagon Screw M10x205 Piaggio Group · AP8150412 Available

  € 14,90

  Add to cart

7 Screw Available AP8152410

•

  Flanged Screw M10x55 Piaggio Group · AP8152410 Available

  € 14,90

  Add to cart

8 Nut Available AP8152301

•

  Standard nut Piaggio Group · AP8152301 Available

  € 2,35

  Add to cart

9 Engine pivot pin bush AP8221347 No longer available

• AP8221347 Engine pivot pin bush
  No longer available

10 Belt cooling cover Available 482404

•

  Housing cover Piaggio Group · 482404 Available

  € 24,20

  Add to cart

11 Screw Available AP8150515

•

  Headlamp Adjustment Screw Piaggio Group · AP8150515 · Quantity needed: 4 Available

  € 2,54

  Add to cart

12 Antidust gasket Backorder 482432

•

  Oil seal Piaggio Group · 482432 Backorder

  € 2,57

  Add to cart
